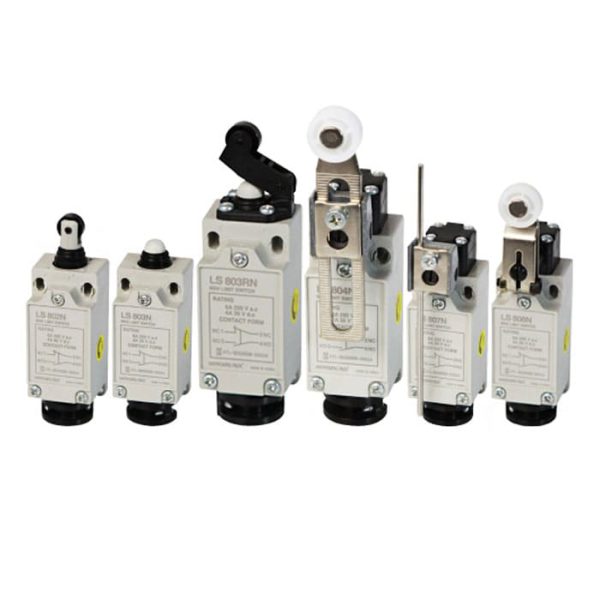

Hanyoung Limit switch HY-LS800 series

Compact size and light weight by applying the plastic case
Plastic case which provides safety regarding the electric leakage
Various actuators (6 types) provide wide application
IP54 protective structure (Applied only when using our company
connector model HYC-M1 in the wire opening) Connector rating of wire opening : 1/2 PF

Hanyoung Limit switch HY-LS800 series Specifications:

• Contact structure: M3 screw tightening terminal, 2 circuits double type (1a1b)
• Contact material: AgNi
• Protective structure: IP54 (Only when using our company product HYC-M1, M2 in the wire opening)
• Rated current(le): 6 A 250 V a.c, 4 A 30 V d.c (AC-12, AC-13, AC-15, DC-13)
• Dielectric strength: 2,000 V a.c 50/60 ㎐ for 1 min (between the terminal and non-recharing metal part)
• Insulation resistance: Min 100 ㏁ (500 V d.c insulated ohmmeter)
• Contact resistance: Max 25 ㏁ (default value)
• Rated voltage(Ue): 250 V a.c, 30 V d.c
• Actuator intensity: 5 times larger than O.F (required force for the operation), operating direction 1 min
• Vibration: Double amplitude 1.5mm, frequency 10 ~ 55 ㎐, continuously 2 hour
• Shock : 100 ㎨ (durability), 50 ㎨ (malfunction)
• Allowable operation speed: 0.1 ~ 0.5 ㎧ (without damaging the actuator)
• Ambient temperature: -10 ~ 70 ℃
• Ambient humidity: 45 ~ 95 % R.H.
• Weight: Approx 60g (HY-LS803N)
