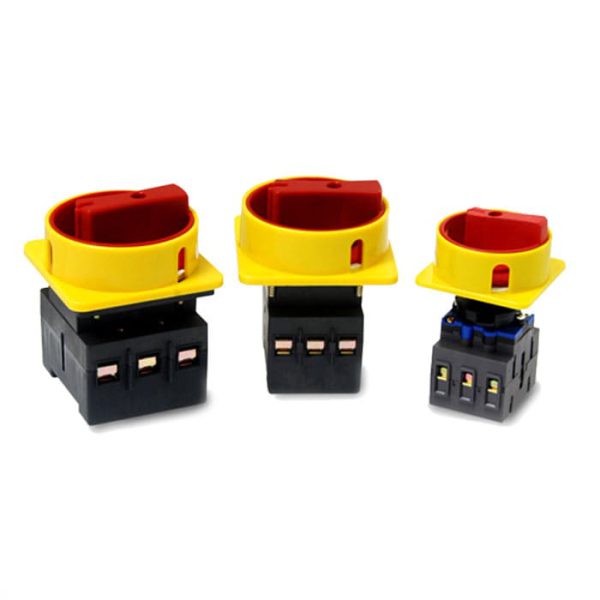

Hanyoung Main switch MAS (25/63/125 A)

Designed as rapid switching structure so excellent contact reliability.
Apply the lock ring within the OFF state
Handle and contact parts are designed as detachable structure (MAS-025)
2 color types of handle and handle guard (red, yellow and black, white)
Ø22, Ø30 (MAS-025) 4 holes fixed panel mounting
Clear indication of ON/OFF contact state (turning OFF the operation handle will block all contacts)

Hanyoung Main switch MAS (25/63/125 A) Specifications:

MAS-025

• Rated insulation voltage(Ui): 690 V a.c
• Rated operation voltage(Ue): 600 V a.c
• Rated electro current(Iu/Ith): 25 A
• Applying categories: AC-21A
• Number of polarities: 3P
• Terminal screw: M4
• Number of lock hole/hole diameter(㎜): 3/9
• Tightening torque: 1.2 N·m
• Protective structure: IP 64

MAS-063

• Rated insulation voltage(Ui): 690 V a.c
• Rated operation voltage(Ue): 600 V a.c
• Rated electro current(Iu/Ith): 63 A
• Applying categories: AC-21A
• Number of polarities: 3P
• Terminal screw: M5
• Number of lock hole/hole diameter(㎜): 3/9
• Tightening torque: 2 N·m
• Protective structure: IP 55

MAS-125

• Rated insulation voltage(Ui): 690 V a.c
• Rated operation voltage(Ue): 600 V a.c
• Rated electro current(Iu/Ith): 125 A
• Applying categories: AC-21A
• Number of polarities: 3P
• Terminal screw: M6
• Number of lock hole/hole diameter(㎜): 3/9
• Tightening torque: 2.5 N·m
• Protective structure: IP 65
