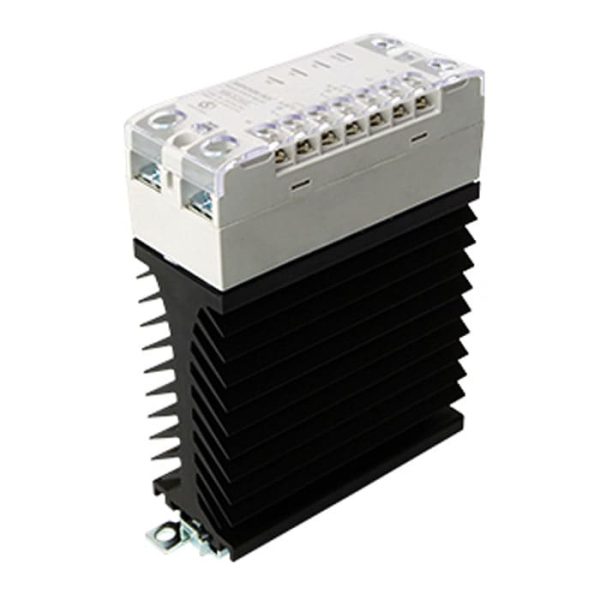

Hanyoung SSR-2C

Hanyoung SSR-2C

– Insulation circuit configuration for each terminal function
– Protection from overheating by detect 60 ℃ / 80 ℃ degree
– S mark safety certification items
– Zero Cross switching

Hanyoung SSR-2C Specification:

• Insulation resistance: 500 V d.c. 100 ㏁ (input/output and among cases)
• Dielectric strength: 2,500 V a.c. (60 ㎐ for one minute)
• Vibration resistance: 10 – 55 Hz, double amplitude: 1.5 mm, each X· Y· Z axis for 2 hours
• Storage temperature: -30 ~ 90 ℃
• Ambient temperature: -20 ~ 80 ℃ (without condensation)
• Ambient humidity: 45 ~ 85 % R.H.
• IP Degree: IP20
