Description

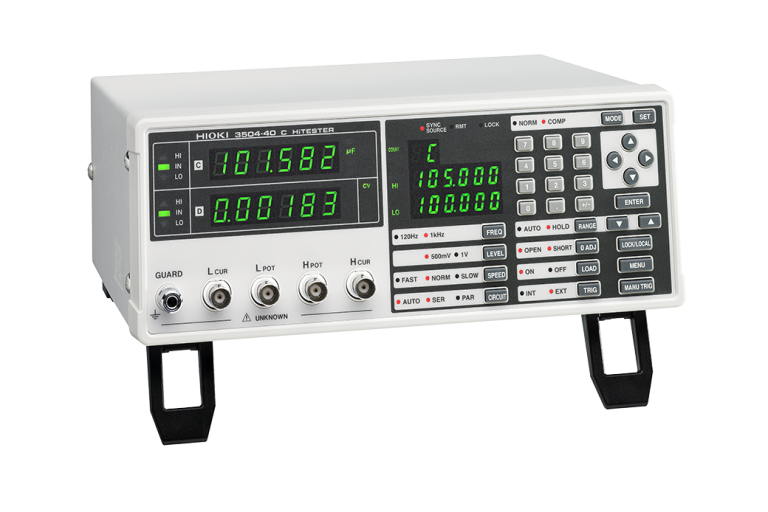

The Hioki 3504 delivers accurate, repeatable measurements for professionals who need trustworthy Hioki performance. Available in the UAE from mme-ae.com, it helps engineers and technicians work faster with clear, manufacturer-backed specifications.

Choose the Hioki 3504 when you need official Hioki quality with local supply support from MME / Mohammad Mahdi Electronics.

Hioki 3504 Key Features

These highlights come from Hioki’s published product data for the 3504 series.

High speed measurement of 2ms
Supports C measurements with voltage dependency characteristics through the use of constant voltage testing (CV)
Model 3504-60 can detect contact failure on all 4 terminals for increased reliability
BIN function on the 3504-60/-50 is ideal for sorting machines
Model 3504-40 offers high speed and affordability, perfect for integrating into taping machines
In all models, contact error is constantly monitored during measurement, contributing to increased yield

Who Needs the Hioki 3504?

Electronics manufacturers, test engineers, and calibration teams use the Hioki 3504 for component verification and production screening. Buyers who need UAE availability can request pricing through MME.

Maintenance and R&D groups also rely on this instrument when documentation, accuracy, and supportability matter.

Hioki 3504 Applications

Typical use cases include:

Production and quality inspection lines
Electronics design and R&D labs
Incoming inspection and sorting
Maintenance and troubleshooting of electronic components

Why Buy Hioki 3504 from MME?

Browse our LCR meters. Read more in our how to choose the right meter.

Order from mme-ae.com for UAE supply of genuine Hioki instruments with clear product data.

Mohammad Mahdi Electronics / MME helps you confirm availability and the right configuration before you buy.

Hioki 3504 Specifications

Measurement parameters	C (capacitance), D (loss coefficient tan δ)
Measurement range	C: 0.9400 pF to 20.0000 mF, D: 0.00001 to 1.99999
Basic accuracy	(Typ.) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016
Measurement frequency	120 Hz, 1 kHz
Measurement signal level	100 mV (3504-60 only), 500 mV, 1 V rms CV 100 mV Measurement range: up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz) CV 500 mV Measurement range : up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz) CV 1V Measurement range : up to 70 μF range (Source frequency 1 kHz), up to 700 μF range (Source frequency 120 Hz)
Output impedance	5Ω (In open terminal voltage mode outside of the CV measurement range)
Display	LED (six digits, full scale count depends on measurement range)
Measurement time	2 ms (Typ. value. Depends on measurement configuration settings)
Functions	4-terminal contact check function (3504-60 only) BIN (measurement values can be classified by rank) (3504-50, 3504-60), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, EXT. I/O, RS-232C, GP-IB (3504-50, 3504-60)
Power supply	Selectable from 100, 120, 220 or 240 V AC ±10 %, 50/60 Hz, 110 VA max.
Dimensions and mass	260 mm (10.24 in) W × 100 mm (3.94 in) H × 220 mm (8.66 in) D, 3.8 kg(134.0 oz)
Included accessories	Power cord ×1, Instruction manual ×1, Spare fuse ×1
