Description

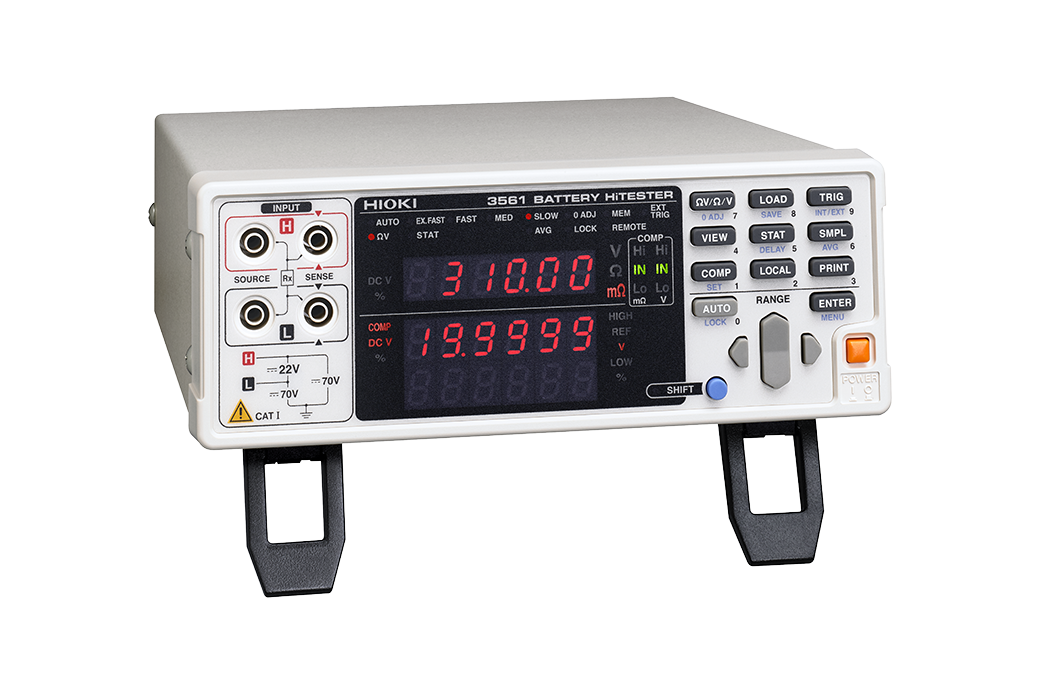

The Hioki 3561-01 Battery HiTester is a sophisticated measuring instrument designed for comprehensive battery testing, capacitance measurement, and resistance analysis. This versatile device combines multiple testing functions in a single unit, making it an essential tool for quality control laboratories, production lines, and research facilities where battery performance and safety are paramount. The instrument delivers precise measurements across multiple parameters with exceptional accuracy and speed.

Equipped with advanced measurement capabilities, the Hioki 3561-01 can test resistance from 300 mΩ to 3 Ω with resolution as fine as 10 μΩ, and measure DC voltage up to 20 V with 0.1 mV resolution. The device features four selectable sampling rates ranging from 4 ms (Extra-FAST) to 150 ms (Slow), allowing users to optimize measurement speed versus stability for their specific application needs. Its comparator function provides Hi/IN/Lo judgment results for both resistance and voltage independently, with PASS/FAIL output options suitable for automated inspection systems.

Hioki 3561-01 Key Features

The Hioki 3561-01 offers comprehensive measurement capabilities designed for professional battery testing and electrical analysis:

Resistance Measurement: 300 mΩ to 3 Ω ranges with 10 μΩ resolution on the 300 mΩ range
Voltage Measurement: DC 20 V range with 0.1 mV resolution and ±0.01% accuracy
High-Speed Sampling: Four selectable rates from 4 ms to 150 ms
Comparator Function: Hi/IN/Lo judgment with PASS/FAIL output
Multiple Interfaces: RS-232C, External I/O, GP-IB (on -01 models)
Safety Rating: 60 V DC maximum rated voltage above ground
Large Display: 31000 digits (resistance) and 199999 digits (voltage)
Power Supply: 100-240 V AC, 50/60 Hz

Who Needs the Hioki 3561-01?

Battery manufacturers and quality control engineers will find the Hioki 3561-01 indispensable for production line testing and research and development. The instrument’s precision measurement capabilities make it ideal for testing battery packs, cells, and components where even minor variations in resistance or capacitance can indicate potential performance issues or safety concerns.

Electrical maintenance technicians and facility managers rely on this HiTester for regular battery health checks, ensuring backup power systems remain reliable and compliant with safety standards. The comparator function enables automated pass/fail sorting, reducing manual inspection time and improving overall efficiency in testing procedures.

Hioki 3561-01 Applications

Battery production facilities utilize the Hioki 3561-01 for incoming quality control, periodic performance testing, and research development of new battery technologies. The instrument’s ability to measure both resistance and capacitance makes it valuable for characterizing battery materials and evaluating aging effects over time.

Battery pack assembly testing
Cell-level resistance measurement
Capacitance characterization
Quality control in manufacturing
Research and development laboratories
Power system maintenance
Safety compliance testing

Why Buy Hioki 3561-01 from mme-ae?

Browse our HiTester instruments. Read more in our electrical safety standards guide.

MME offers genuine Hioki instruments with comprehensive manufacturer warranty and dedicated technical support. When you purchase the Hioki 3561-01 Battery HiTester from mme-ae, you receive authentic equipment calibrated to factory specifications, ensuring reliable performance from day one. Our expert team provides pre-sale consultation to help you select the right testing solution for your specific application requirements.

Order today from Mohammad Mahdi Electronics and experience fast shipping across the UAE with competitive pricing. Our knowledgeable staff understands the technical specifications of Hioki test equipment and can assist with any questions about measurement capabilities, software options, or integration with your existing testing infrastructure.

Hioki 3561-01 Specifications

Max. applied measurement voltage	±22 V DC ±60 V DC maximum rated voltage above ground
Resistance measurement ranges	300 mΩ (max. display 310.00 mΩ, resolution 10 μΩ) to 3 Ω (max. display 3.1000 Ω, resolution 100 μΩ), 2 ranges Accuracy: ±0.5 % rdg. ±5 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM) Testing source frequency: 1 kHz ±0.2 Hz, testing current: 10 mA (300 mΩ range), 1 mA (3 Ω range) Open terminal Voltage: 7 V peak
Voltage measurement ranges	DC 20 V, resolution 0.1 mV, Accuracy: ±0.01 % rdg. ±3 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM)
Display	31000 full digits (resistance), 199999 full digits (voltage), LED
Sampling rate	Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow) (Typ., sampling time depends on supply frequency settings and function.)
Measurement time	Response time + sampling rate, approx. 3 ms for measurements (Response time depends on reference values and the measurement object.)
Comparator functions	Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.)
Interfaces	External I/O, RS-232C, Printer (RS-232C), GP-IB (-01 suffix models only)
Power supply	100 to 240 V AC, 50/60 Hz, 30 VA max.
Dimensions and mass	215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz)
Included accessories	Instruction manual × 1, Power cord × 1
