Description

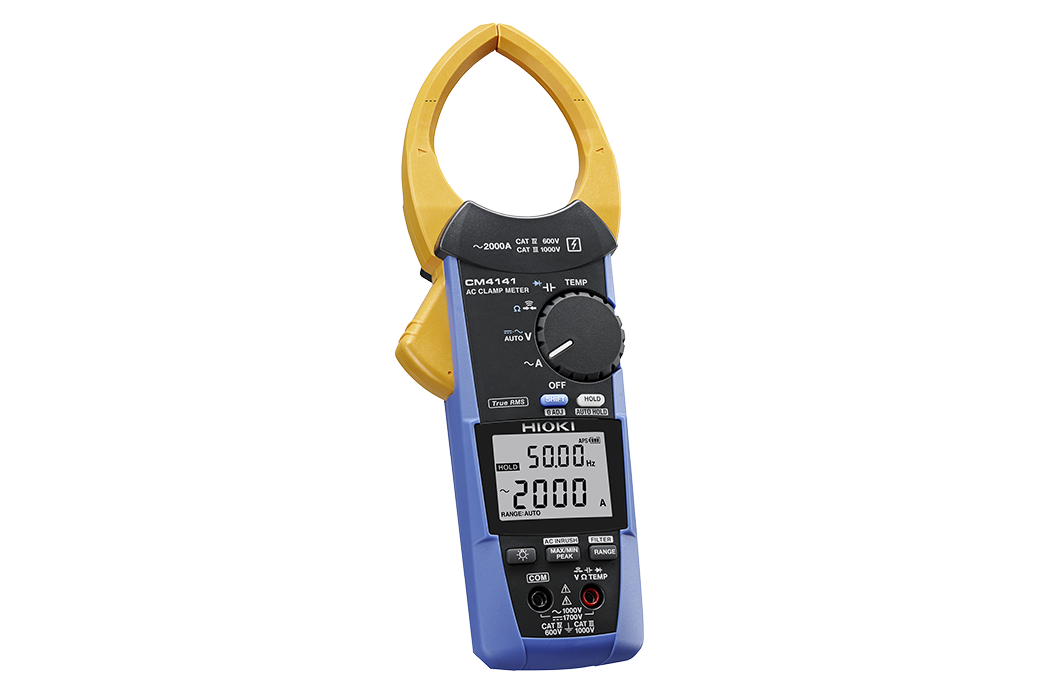

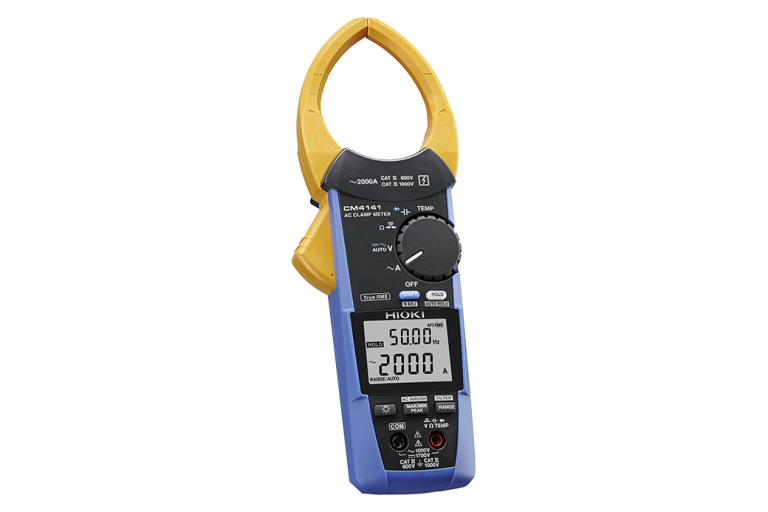

At Mohammad Mahdi Electronics, we offer the Hioki CM4141-90 AC Clamp Meter, a reliable and accurate tool for electrical measurements. This True RMS AC Clamp Meter is designed for professionals and DIY enthusiasts alike, providing precise readings in a variety of applications.

With its 60.00 A to 2000 A current range, 3 ranges, the Hioki CM4141-90 is ideal for measuring high currents in electrical systems. The 600.0 mV to 1700 V DC voltage range, 5 ranges, and 6.000 V to 1000 V AC voltage range, 4 ranges, make it a versatile tool for a range of tasks.

Hioki CM4141-90 Key Features

The Hioki CM4141-90 features a range of key functions, including:

True RMS measurement for accurate AC current and voltage readings
3 ranges for current measurement: 60.00 A to 2000 A
5 ranges for DC voltage measurement: 600.0 mV to 1700 V
4 ranges for AC voltage measurement: 6.000 V to 1000 V
4 ranges for resistance measurement: 600.0 Ω to 600.0 kΩ
4 ranges for electrostatic capacity measurement: 1.000 μF to 1000 μF
3 ranges for frequency measurement: 9.999 Hz to 999.9 Hz

Who Needs the Hioki CM4141-90?

The Hioki CM4141-90 is designed for professionals and DIY enthusiasts who require accurate and reliable electrical measurements. This includes:

Electricians, electrical engineers, and technicians who need to measure high currents and voltages in electrical systems

DIY enthusiasts who want to ensure their electrical projects are safe and efficient

Researchers and scientists who require precise measurements in their experiments

Hioki CM4141-90 Applications

The Hioki CM4141-90 has a range of applications, including:

Electrical system maintenance and troubleshooting
Electrical installation and commissioning
Research and development
Quality control and testing

Why Buy Hioki CM4141-90 from Mohammad Mahdi Electronics?

Browse our clamp meters. Read more in our top clamp meters for electricians.

At Mohammad Mahdi Electronics, we offer the Hioki CM4141-90 at a competitive price, with fast shipping and excellent customer service. We also offer a range of accessories and support services to ensure you get the most out of your purchase.

Whether you’re a professional or DIY enthusiast, the Hioki CM4141-90 is a reliable and accurate tool that will help you achieve your goals. Buy now from Mohammad Mahdi Electronics and experience the difference for yourself.

Hioki CM4141-90 Specifications

AC Current range	60.00 A to 2000 A, 3 ranges (45 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.5% rdg. ±0.08 A
Crest factor	For the 60.00 A range: 2.5 (greater than 50.00 A and less than or equal to 60.00 A) to 2000 A range: 1.5 (2000 A or less)
DC Voltage range	600.0 mV to 1700 V (*1), 5 ranges, Basic accuracy: ±0.5% rdg. ±0.5 mV (at 600 mV)
AC Voltage range	6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±0.9% rdg. 0.003 V (at 6 V)
DC+AC Voltage range	6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45-66 Hz: ±1.0% rdg. ±0.013 V (at 6 V)
Resistance range	600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω)
Electrostatic capacity range	1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±0.005 μF (at 1 μF)
Frequency range	Voltage: 9.999 Hz to 999.9 Hz 3 ranges, Current: 99.99 Hz to 999.9 Hz 2 ranges, Basic accuracy: ±0.1% rdg. ±0.01 Hz (at 99.99 Hz)
Temperature (K)	-40.0 to 400.0 ˚C, Basic accuracy: ±0.5% rdg. ±3.0 ˚C + temperature probe accuracy
Other functions	Continuity check, Diode check, Automatic AC/ DC detection (Voltage check only), Max/ Min/ AVG/ Peak waveform MAX/ Peak waveform MIN value display, Low-pass filter function, Display value hold, Backlight, Auto power save, Buzzer sound, Zero-adjustment, and other function
Dustproof, waterproof	IP20 (Current measurement of voltage or hazardous live conductors under completely dry condition) IP50 (When measuring or storing the resistance of a completely dry state or the current of an insulated conductor), However, dustproof and waterproof design equivalent to IP54 only on the handheld part and in a non-measurement state.
Interface	N/A
Power supply	LR03 Alkaline battery ×2, Continuous use: 48 hr (Backlight OFF)
Core jaw diameter	φ55 mm (2.17 in), Jaw dimension: 82 mm (3.23 in) W × 11 mm (0.43 in) D (D dimension is a range value of 44 mm (1.73 in) from the tip of the jaw)
Jaw cross-section	Minimum dimension 11 mm (0.43 in) (Range value of 44 mm (1.73 in) from the tip of the jaw)
Dimensions and mass	65 mm (2.56 in) W × 247 mm (9.72 in) H × 35 mm (1.38 in) D, 300 g (10.6 oz)
Accessories	Test Lead L9207-10 ×1, Carrying Case C0203 ×1, LR03 Alkaline battery ×2, Instruction Manual ×1, Usage notes ×1
