Description

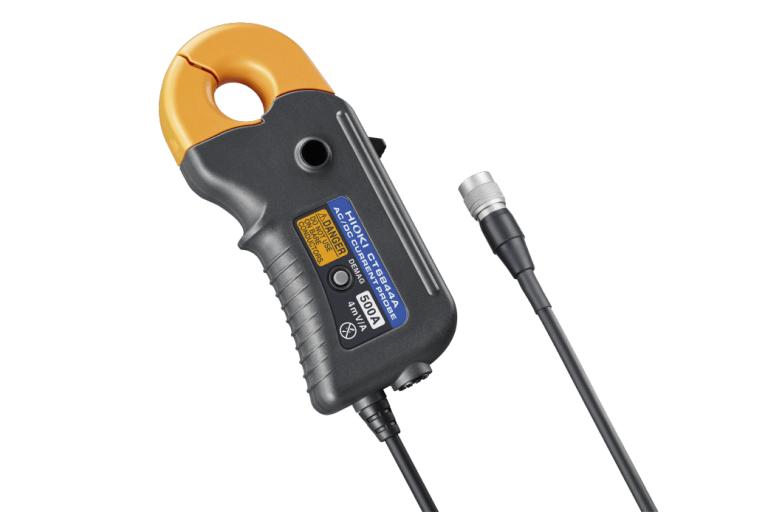

At Mohammad Mahdi Electronics, we offer the Hioki CT6844A AC/DC Current Probe, a versatile and accurate tool for measuring current in a wide range of applications. Whether you’re working with electrical systems, testing equipment, or conducting research, this probe is designed to provide reliable results.

With its high-rated current of 500 A AC/DC and frequency bandwidth of DC to 500 kHz, the Hioki CT6844A is ideal for measuring currents in complex systems. Its compact design and durable construction make it easy to use and transport, while its high accuracy and linearity ensure precise measurements.

Hioki CT6844A Key Features

The Hioki CT6844A features a range of key specifications, including:

Rated current: 500 A AC/DC
Frequency bandwidth: DC to 500 kHz
Diameter of measurable conductors: Max. φ 20 mm (0.79 in.)
Max. allowable input: ±800 A peak (Within 20 ms in an environment of 40°C/104°F or less)
Output voltage: 4 mV/A
Output resistance: 50 Ω ± 10 Ω
Accuracy (amplitude): ±(% of reading + % of full scale)
Linearity: ±20 ppm
Typical Common-Mode Voltage Rejection Ratio (CMRR): DC to 1 kHz：150 dB or greater

Who Needs the Hioki CT6844A?

The Hioki CT6844A is designed for use in a wide range of applications, including:

Electrical system testing and maintenance

Research and development

Quality control and assurance

The Hioki CT6844A is ideal for anyone who needs to measure current accurately and reliably.

Hioki CT6844A Applications

The Hioki CT6844A can be used in a variety of applications, including:

Measuring current in electrical systems
Testing equipment and machinery
Conducting research and development
Ensuring quality control and assurance

Why Buy Hioki CT6844A from mme-ae?

Browse our current accessories. Read more in our top clamp meters for electricians.

At mme-ae, we offer the Hioki CT6844A at a competitive price, with fast shipping and excellent customer service. Whether you’re a professional electrician, researcher, or engineer, we have the expertise and resources to help you find the right tool for your needs.

For more information on the Hioki CT6844A or to place an order, please visit our website or contact us directly. We look forward to serving you!

Hioki CT6844A Specifications

Rated current	500 A AC/DC
Frequency bandwidth	DC to 500 kHz
Diameter of measurable conductors	Max. φ 20 mm (0.79 in.)
Max. allowable input	±800 A peak (Within 20 ms in an environment of 40°C/104°F or less)
Output voltage	4 mV/A
Output resistance	50 Ω ± 10 Ω
Accuracy (amplitude) ±(% of reading + % of full scale)	DC: 0.2% + 0.02% DC < f ≤ 100 Hz: 0.2% + 0.01%
Linearity	±20 ppm Typical
Common-Mode Voltage Rejection Ratio (CMRR)	DC to 1 kHz：150 dB or greater 1 kHz to 10kHz：135 dB or greater 10 kHz to 100 kHz：120 dB or greater 100 kHz to 300 kHz：100 dB or greater (effect on output voltage and common mode voltage)
Automatic phase correction	Automatically performs phase correction when connected to a compatible Hioki power analyzer.
Operating temperature, humidity	-40°C to 85°C (-40°F to 185°F), 80% RH or less
Standards	Safety IEC 61010 EMC IEC 61326
Withstand voltage	AC 4260 V
Power supply	Power supplied from compatible Hioki power analyzers, sensor units, or current units.
Max. rated power	7 VA or less (When measuring 500 A/55 Hz with ±12 V power supply)
Dimensions and mass	Approx. 153 mm W × 67 mm H × 25 mm D (approx. 6.02 in. W × 2.64 in. H × 0.98 in. D), 400 g (14.1 oz.)
Cable length	Approx. 3 m (9.84 ft.)
Included accessories	Markup bands ×6, Carrying Case, Instruction Manual
