HIOKI DT4282 Digital Multimeter

ِDT4282 Hioki Features :

  • 60000 count, 5-digit display, high-resolution measurements
  • ±0.025% DC V basic accuracy, wide 20 Hz to 100 kHz AC V frequency characteristics
  • Measure up to 10 A with direct input
  • The low-pass filter cuts high harmonics
(2 customer reviews)
SKU: 473

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 1,238 (excl.VAT)

14 People watching this product now!

HIOKI DT4282 Digital Multimeter

The Hioki DT-4282 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket types. The DT 4282 hioki multimeter is a high-precision 60,000-count digital multimeter with direct 10A input and all of the functions and features required for advanced testing in laboratories and R&D.
Digital multimeter hiokidt4282 is a high-precision digital multimeter with direct 10A input and all of the functions and features required for advanced testing in laboratories and R&D. This device is different.

Similar Products

The Hioki 4261 and UNI-T 4261 are two similar products that can be compared to the Hioki 4282. You also can compare them on MME easily by using the compare button on each product page.

  • The Hioki 4261, manufactured by Hioki, offers high precision and accuracy in measuring inductance, capacitance, and resistance. It features a user-friendly interface, a large LCD display, and a wide frequency range for versatile testing capabilities.
  • The UNI-T UT133B is a handheld digital multimeter with basic LCR measurement functions. It is a portable and compact device that can measure resistance, capacitance, and frequency.

Hioki dt4282 price

A lot of people wonder why there is such a big difference in Hioki 4282 and Hioki-dt4252 prices, and it’s because each manufacturer has their own set of standards that they use to determine how much they should charge for their products. you can always check the live price on our website. in the next section, we will talk about the hioki dt 4282 datasheet.

Hioki dt4282 manual

Hioki Company is an established and well-known player in the industry with an international presence as well. It has a large customer base and provides customer service through its many subsidiaries that are located all over the world. on our website, you can download this product user manual from the manual tab.

hioki dt4282 specifications:

  • DC/AC Voltage range: 60.000 mV to 1000.0 V
  • Resistance range: 60.000 Ω to 600.0 MΩ
  • DC / AC Current range: 600.00 μA to 10.000 A
  • Capacitance range: 1.000 nF to 100.0 mF
  • Continuity Check: Continuity threshold: 20/50/100/500 Ω, Response time: 10 ms or more
  • Frequency range: at pulse width 1 μs or more 99.999 Hz  to 500.00 kHz
  • dB conversion: Standard impedance setting (dBm), 4 Ω to 1200 Ω
  • Temperature : K: -40.0 °C to 800.0 °C
  • Display: Main and Sub displays: 5-digit LCD, max. 60000 digits
  • Power supply : LR6 (AA) alkaline batteries ×4, Continuous use: 100 hours
  • Dimensions and mass: 93 mm (3.66 in) W × 197 mm (7.76 in) H× 53 mm, 650 g

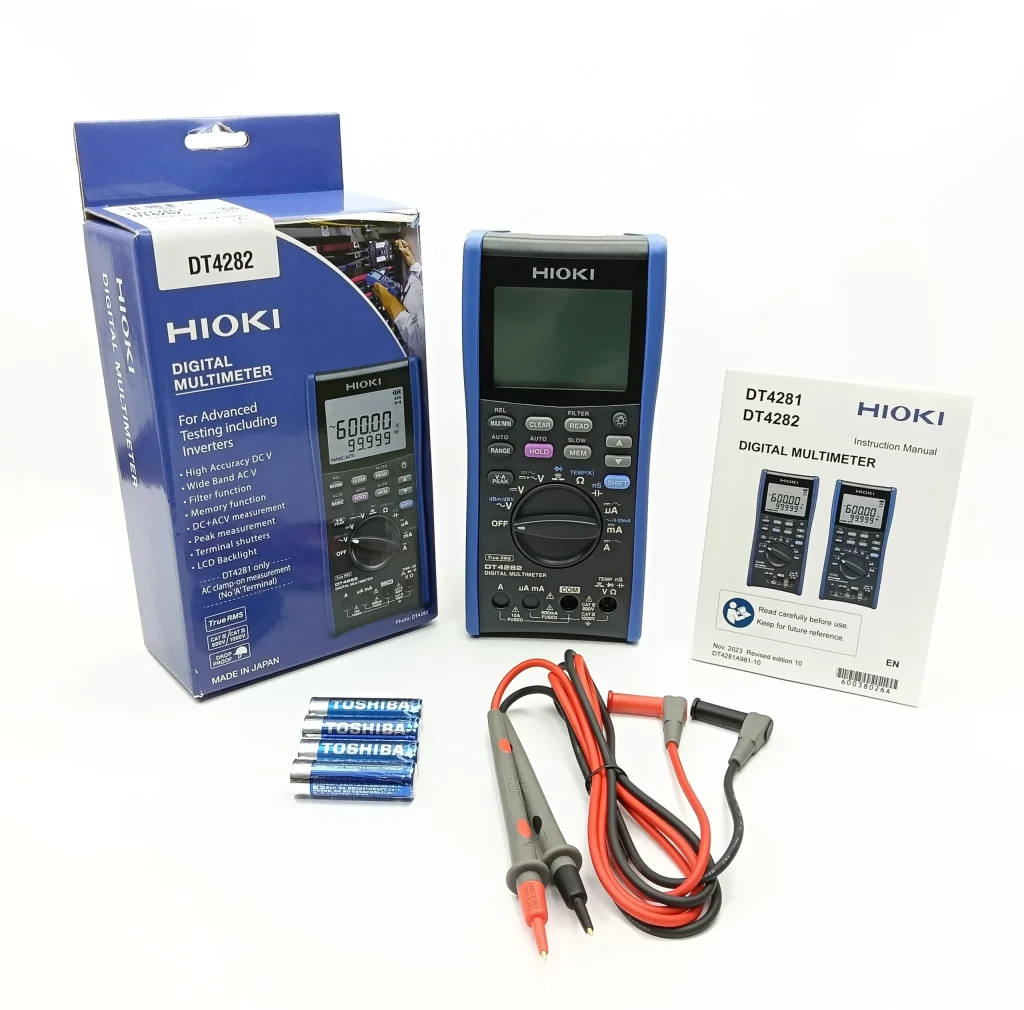

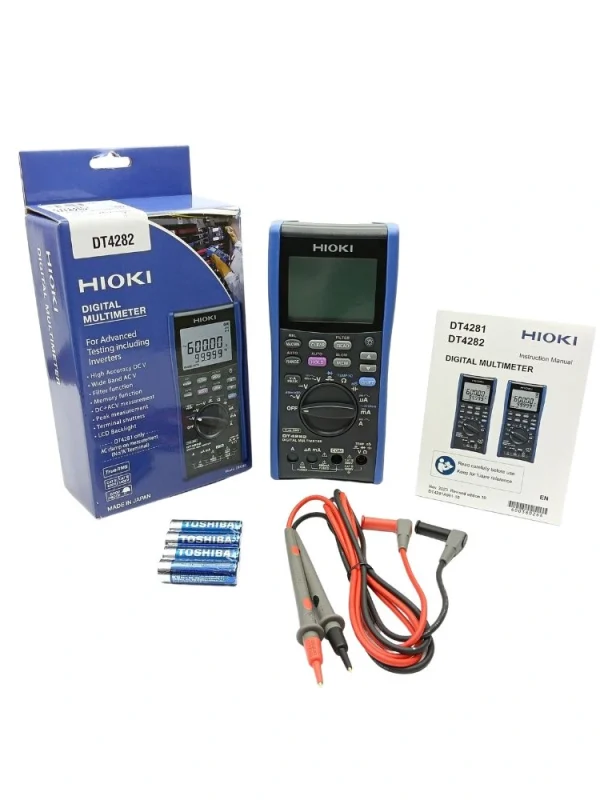

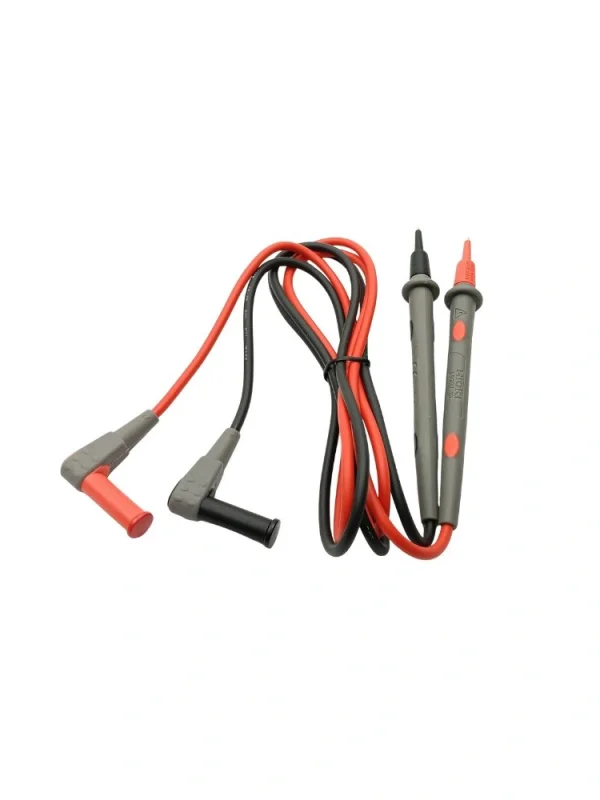

  • Accessories : Test Lead L9207-10 ×1, Instruction Manual ×1, LR6 Alkaline Battery ×4

To get information about the hioki dt4252 price in MME, contact our experts. also to download the hioki dt4282 datasheet click on the datasheet tab. We offer various models of hioki multimeters on the MME website.

5
2 reviews
2
0
0
0
0

2 reviews for HIOKI DT4282 Digital Multimeter

Clear filters
  1. Natalia

    Excellent water resistance and performance

    0
    0
  2. melanie

    Value for money
    Durability
    Delivery speed

    I absolutely recommend the DT4282 for anyone in electronics development.

    0
    0
Add a review

Brand

Hioki

Hioki

Hioki is a renowned Japanese brand known for its expertise in developing and manufacturing electrical measuring instruments. The company, Hioki E.E. Corporation, was established in 1935, and since then, it has committed itself to providing innovative solutions in the field of electrical measurement.

Hioki's product range is extensive, including devices such as digital multimeters, clamp meters, power meters, and oscilloscopes. These instruments are vital for various applications in research and development, maintenance, and production testing across industries like electronics, energy, and automotive. One of the key strengths of Hioki is its focus on precision and reliability, traits that are crucial in measurement instruments. Hioki’s products are designed to offer accuracy and durability, which make them preferred choices among professionals worldwide.

Moreover, Hioki emphasizes technological innovation and quality. The company invests significantly in research and development to keep up with evolving technological trends and to ensure their products meet the highest standards. This commitment to quality is reflected in their adherence to international certifications and standards. Hioki also values environmental sustainability, integrating eco-friendly practices in their operations and product designs. This includes efforts to reduce the environmental impact of their manufacturing processes and to design products that are energy efficient.

DATA sheet

Data Sheet

Video

specifications

Digital Multimeter Technical Specifications
Specification Category Specification Details
Voltage Range DC Voltage Range 60.000 mV to 1000.0 V, 6 ranges, Basic accuracy: ±0.025 % rdg. ±2 dgt.
AC Voltage Range 60.000 mV to 1000.0 V, 6 ranges, Frequency characteristics: 20 Hz – 100 kHz, Basic accuracy 45 – 65 Hz : ±0.2 % rdg. ±25 dgt. (True RMS, crest factor 3)
DC + AC Voltage Range 6.0000 V to 1000.0 V, 4 ranges, Frequency characteristics: 20 Hz – 100 kHz, Basic accuracy 45 – 65 Hz : ±0.3 % rdg. ±30 dgt. (True RMS, crest factor 3)
Resistance Range 60.000 Ω to 600.0 MΩ, 8 ranges (Conductance: 600.00 nS, DT4282 only), Basic accuracy: ±0.03 % rdg. ±2 dgt.
Current Range DC Current Range 600.00 μA to 10.000 A, 6 ranges, Basic accuracy: ±0.05 % rdg. ±5 dgt.
AC Current Range 600.00 μA to 10.000 A, 6 ranges, Basic accuracy 45 – 65 Hz : ±0.6 % rdg. ±5 dgt. (True RMS, crest factor 3, Frequency characteristics: 20 Hz – 20 kHz at 600 μA to 600 mA range)
Capacitance Range 1.000 nF to 100.0 mF, 9 ranges, Basic accuracy: ±1.0 % rdg. ±5 dgt.
Frequency Range 99.999 Hz (0.5 Hz or more) to 500.00 kHz, 5 ranges, ±0.005 % rdg. ±3 dgt.
Other Functions Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option), mis-insertion prevention shutters, decibel conversion, 4-20 mA percentage conversion
Display Main and Sub displays: 5-digits LCD, max. 60000 digits, Display refresh rates: 5 times/s (Capacitance measurement: 0.05 to 2 times/s, depending on measured value, Temperature: 1 time/s )
Power Supply LR6 (AA) alkaline batteries ×4, Continuous use: 100 hours
Dimensions and Mass 93 mm (3.66 in) W × 197 mm (7.76 in) H × 53 mm (2.09 in) D, 650 g (22.9 oz) (with test leads holder and batteries)
