Description

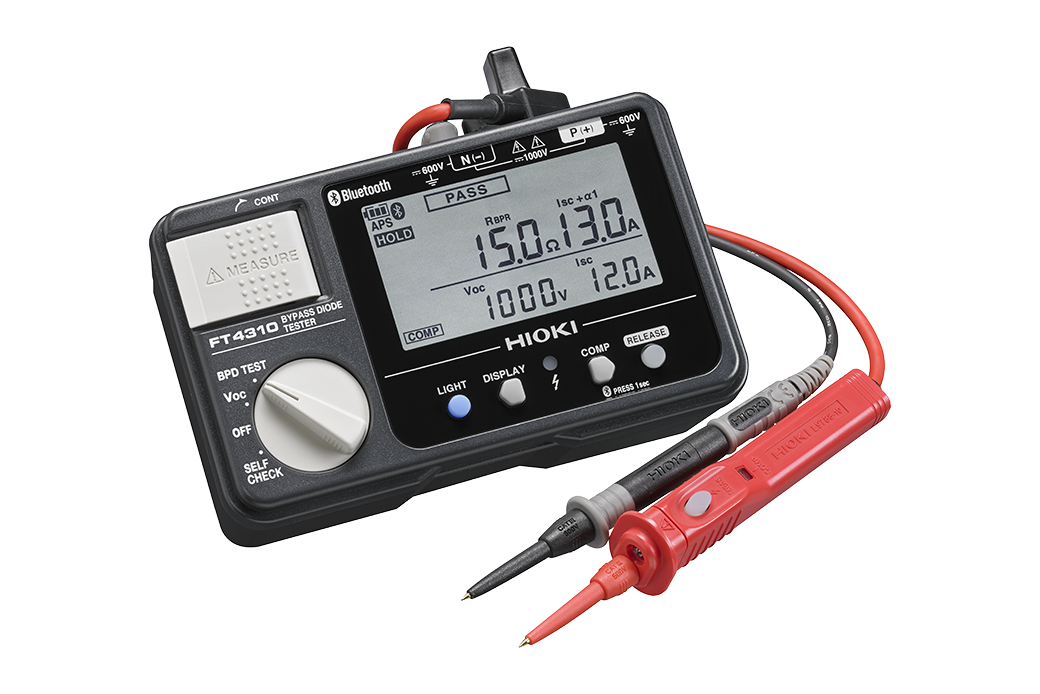

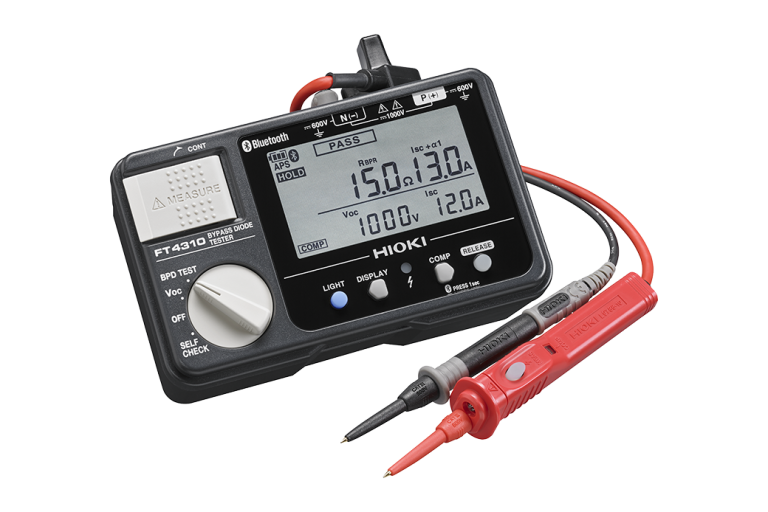

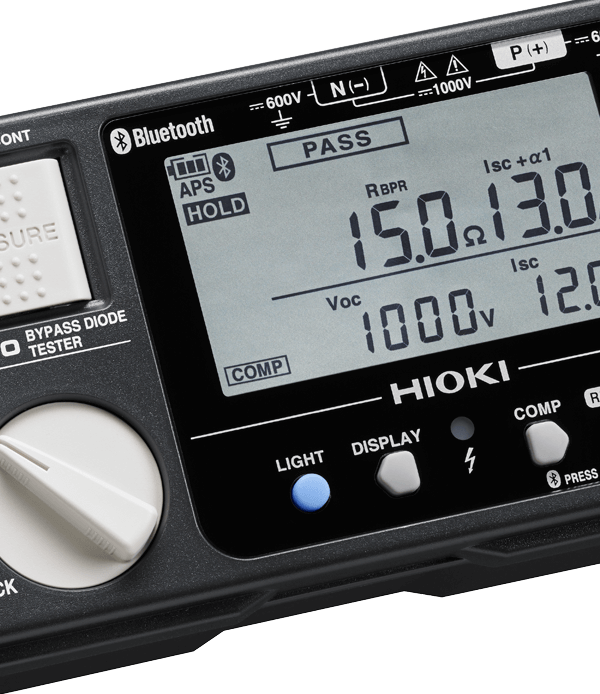

The Hioki FT4310 Bypass Diode Tester is a reliable and efficient tool for electrical professionals. At MME, we understand the importance of accurate measurements in electrical systems.

With the FT4310, you can measure bypass diode comparator judgment, test bypass route resistor, check open-circuit voltage, measure short-circuit current, apply measurement current, and test crystal system strings. Its high measurement accuracy ensures reliable results, and its compact design makes it easy to use in various applications.

The FT4310 features a range of measurement capabilities, including:

Bypass diode comparator judgment
Bypass route resistor
Open-circuit voltage: 1000 V DC or less
Short-circuit current: 2 A to 12 A DC
Measurement (applied) current
Crystal system string
Measurement accuracy: ±0.2% rdg. ±3 dgt.
Measurement time: 2 s or less

The Hioki FT4310 is designed for electrical professionals who need to measure and test bypass diodes in electrical systems. Its compact design and high measurement accuracy make it an ideal tool for:

Electrical engineers

Electrical technicians

Power system operators

Researchers and developers

The Hioki FT4310 has a range of applications in electrical systems, including:

Power system maintenance

Electrical system testing

Research and development

Quality control

Browse our electrical instruments. Read more in our electrical safety standards guide. See other Hioki instruments.

At mme-ae, we offer the Hioki FT4310 Bypass Diode Tester at competitive prices, along with excellent customer service and support. Our team of experts can help you choose the right tool for your needs and provide training and maintenance services to ensure optimal performance.

Whether you’re looking for a reliable tool for power system maintenance or a high-accuracy tester for electrical system testing, the Hioki FT4310 is an excellent choice. Mohammad Mahdi Electronics is your trusted partner for all your electrical testing needs.

Measurement
items

Bypass diode comparator judgment, Bypass route resistor, Open-circuit voltage, Short-circuit current, Measurement (applied) current

Measurement object

Crystal system string
Open-circuit voltage: 1000 V DC or less, Rated current: 2 A to 12 A DC

Caution:
The FT4310 cannot measure strings that are installed in parallel or complex strings that are installed in combination.

Measurement method

Short-circuit and pulse voltage application

Measurement accuracy

Open-circuit voltage: ±0.2% rdg. ±3 dgt. (at 0 to ±1000 V)
Short-circuit current: ±3% rdg. ±3 dgt. (at 0.0 to 15.0 A)
Bypass route resistance: ±5% rdg. ±5 dgt. (at 0.0 to 15.0 Ω, During pure
resistance measurement)

Measurement time

2 s or less (3 seconds or less when measurement voltage is 10 V or less)

Possible number of measurements

3000 times (Comparator, backlight, Bluetooth® OFF)
LR6 Alkaline battery × 6
