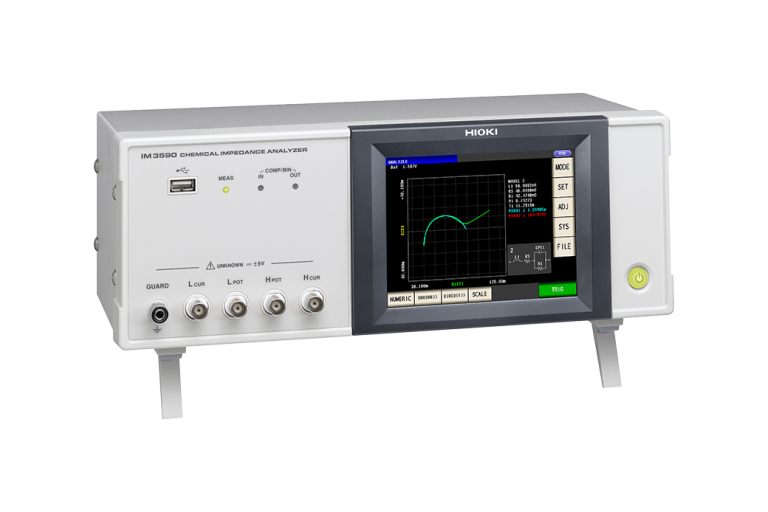

Welcome to the Hioki IM3590 Chemical Impedance Analyzer, a cutting-edge tool designed to meet the demands of modern measurement applications. At Mohammad Mahdi Electronics, we understand the importance of precision and accuracy in your work, which is why we’re proud to offer this exceptional instrument.

Whether you’re working in research and development, quality control, or manufacturing, the Hioki IM3590 is the perfect solution for your chemical impedance measurement needs. With its advanced features and user-friendly interface, you’ll be able to collect and analyze data with ease, making it an invaluable asset to your team.

Hioki IM3590 Key Features

The Hioki IM3590 boasts an impressive range of features that set it apart from other impedance analyzers on the market. Some of its key benefits include:

LCR mode and Analyzer mode for comprehensive measurement
Continuous measurement mode for real-time data analysis
Temperature characteristics and equivalent circuit analysis for in-depth understanding
Measurement range from 100 mΩ to 100 MΩ with 10 ranges
Display range for various parameters including Z, Y, θ, Rs, Rp, Rdc, X, G, B, Cs, Cp, Ls, Lp, D, Q, T, σ, ε
Basic accuracy of ±0.05% rdg. for Z and ±0.03° for θ
Measurement frequency from 1 mHz to 200 kHz with 5 digits setting resolution

Who Needs the Hioki IM3590?

The Hioki IM3590 is designed for a wide range of applications, including:

Research and development teams looking for a reliable and accurate impedance analyzer

Quality control departments seeking to improve product testing and inspection

Manufacturing facilities requiring precise measurement and analysis of electrical properties

Academics and students working on projects related to electrical engineering and materials science

Hioki IM3590 Applications

The Hioki IM3590 is suitable for a variety of applications, including:

Electrical properties measurement of materials

Impedance analysis of electronic components

Measurement of electrical properties of batteries and fuel cells

Analysis of electrical characteristics of semiconductors

Measurement of electrical properties of ceramics and other materials

Why Buy Hioki IM3590 from Mohammad Mahdi Electronics?

Read more in our how to choose the right meter. See other Hioki instruments.

At Mohammad Mahdi Electronics, we’re committed to providing our customers with the best possible products and services. Here are just a few reasons why you should choose us for your Hioki IM3590 needs:

We offer competitive pricing and flexible payment options

Our team of experts is always available to provide technical support and guidance

We provide a comprehensive warranty and maintenance program to ensure your instrument remains in good working condition

We offer a range of accessories and spare parts to keep your Hioki IM3590 running smoothly

Visit our website at https://mme-ae.com/product-category/electronic/lcr-meter/ to learn more about the Hioki IM3590 and other products in our range.

Hioki IM3590 Specifications

Measurement modes	LCR mode, Continuous measurement mode (LCR mode / Analyzer mode), Analyzer mode (Sweeps with measurement frequency and measurement level, temperature characteristics, equivalent circuit analysis)
Measurement parameters	Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q, T, σ (conductivity), ε (dielectric constant)
Measurement range	100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z)
Display range	Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε : ±(0.00000 [unit] to 9.99999G [unit], Absolute value display for Z and Y only θ : ±(0.000° to 180.000°), D : ±(0.00000 to 9.99999) Q : ±(0.00 to 99999.9), Δ % : ±(0.0000% to 999.999%) T : -10.0°C to 99.9°C σ, ε :±(0.00000f [unit] to 999.999G [unit]
Basic accuracy	Z: ±0.05% rdg. θ: ±0.03°
Measurement frequency	1 mHz to 200 kHz (5 digits setting resolution, minimum resolution 1 mHz)
Measurement signal level	Normal mode: V mode/CV mode: 5 mV to 5 Vrms, 1 mVrms steps CC mode: 10 μA to 50 mArms, 10 μArms steps Low impedance high repeatability mode: V mode/CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps CC mode:10 μA to 100 mArms, 10 μArms steps
Output impedance	Normal mode: 100 Ω, Low impedance high repeatability mode: 25 Ω
Display	5.7-inch color TFT, display can be set to ON/OFF
Measurement time	2 ms (1 kHz, FAST, display OFF, representative value)
Functions	DC bias measurement, DC resistance temperature compensation (converted reference temperature is displayed), Temperature measurement, Battery mesurement (Automatic DC biasing system), Comparator, BIN measurement (classification), Panel loading/saving, Memory function
Interfaces	EXT I/O (Handler), USB communication (high-speed), USB memory Optional: Choose 1 from RS-232C, GP-IB, or LAN
Power supply	100 to 240 V AC, 50/60 Hz, 50 VA max.
Dimensions and mass	330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz)
Included accessories	Power cord ×1, Instruction manual ×1
