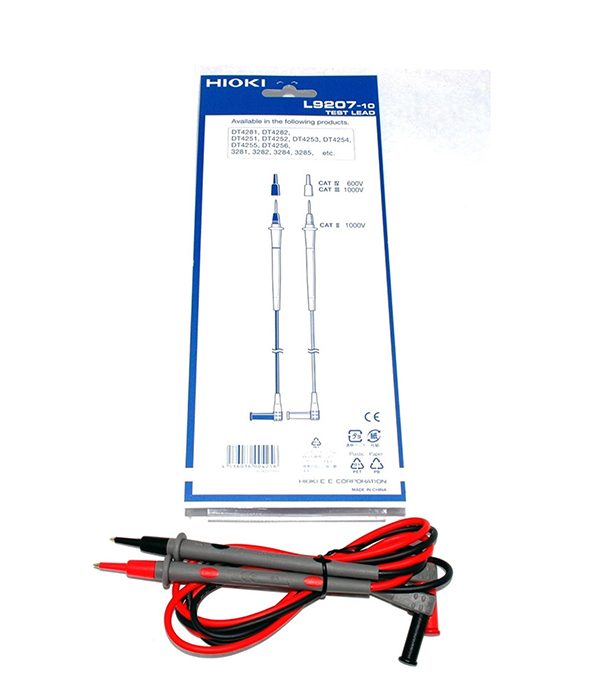

Hioki L9207-10 Test Lead for Digital HiTester

Hioki L9207 10 Test Lead

The Hioki L9207 10 Test Lead for Digital HiTester is designed to deliver reliable performance, precision, and durability. Built to handle demanding electrical testing tasks, these test leads boast a maximum rated voltage to earth of 1000 V and a dielectric strength of AC 6.880 kVrms, ensuring safety and accuracy in every application. Whether you’re working on residential circuits or industrial systems, the Hioki L9207-10 test leads are engineered to meet the highest standards of quality and reliability.

hioki l9207 10

Operating temperature and humidity: -15 degrees C to 55 degrees C, 90 percent RH or less (no condensation). Maximum rated: Sleeves attached – Maximum rated voltage to earth 1000 V, Measurement category III, Anticipated transient overvoltage 8000 V, Maximum rated voltage to earth 600 V, Measurement category IV, Anticipated transient overvoltage 8000 V. Sleeves removed – Maximum rated voltage to earth 1000 V, Measurement category II, Anticipated transient overvoltage 6000 V.

Maximum rated current: 10 A. Dielectric strength: AC6.880 kVrms, Between metal pins and resin (50 Hz or 60 Hz for 15 seconds). Applicable Standards: EN61010.

Optimized Design for Professional Use

Engineered for efficiency, the Hioki L9207-10 features a lightweight design, weighing only 4.5 ounces, and a length of 90 cm for flexibility in various testing scenarios. The ergonomic design ensures ease of handling, while the robust build guarantees long-lasting use even under tough conditions. Certified to meet EN61010 standards, these test leads ensure maximum safety and compliance with international testing requirements. With their professional-grade design, they are ideal for electricians, engineers, and technicians who demand excellence.
