Description

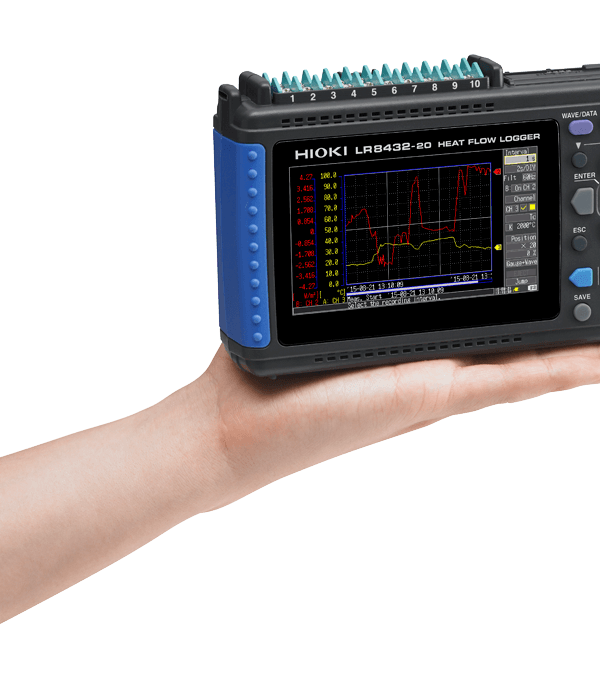

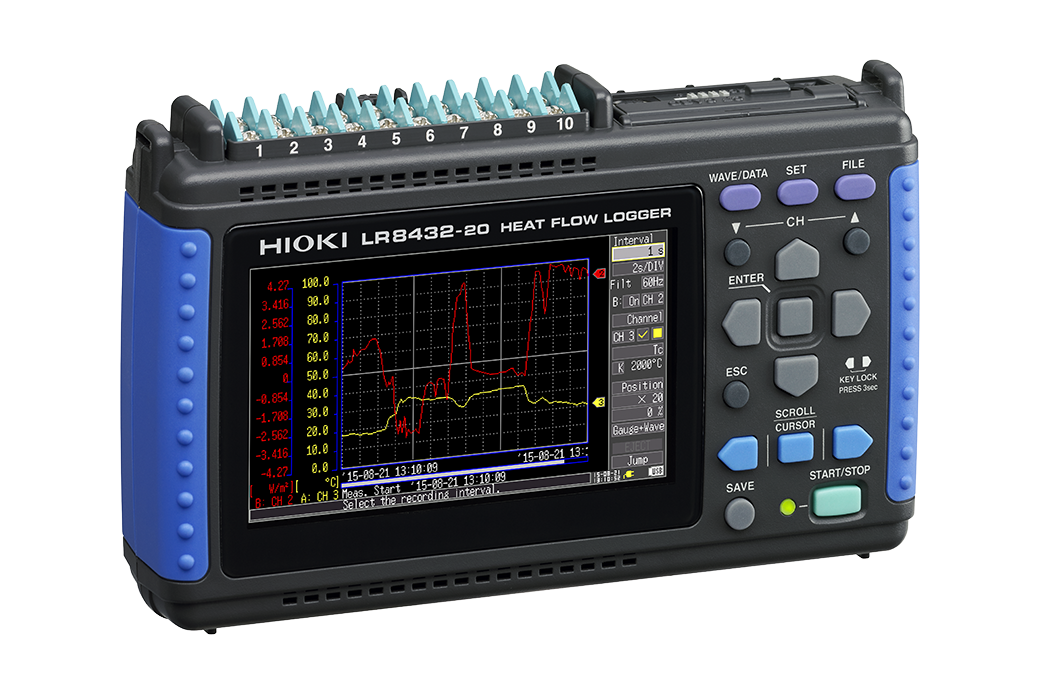

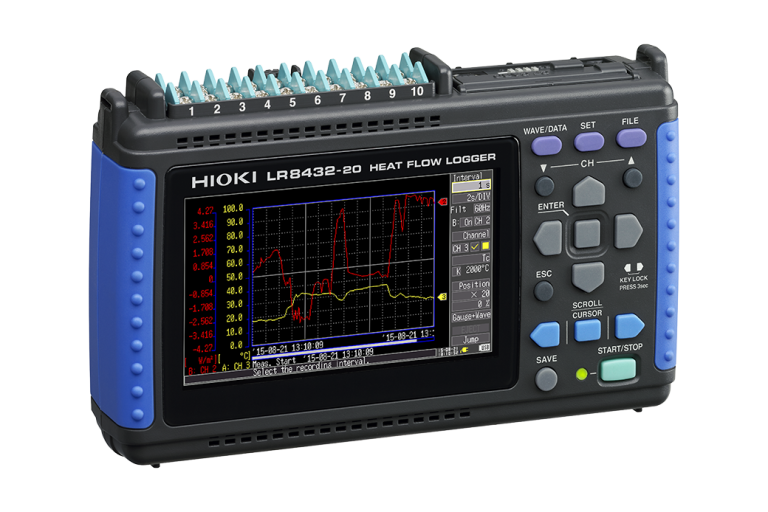

At MME, we offer the Hioki LR8432-30 Heat Flow Logger, a cutting-edge instrument designed for precise heat flow measurement. Whether you’re a researcher, engineer, or technician, this logger is an essential tool for your electrical safety standards compliance and data analysis needs.

With its electrical instruments expertise, MME is your trusted partner for all your electrical measurement needs. Explore our electrical safety standards guide for more information.

Hioki LR8432-30 Key Features

The Hioki LR8432-30 Heat Flow Logger boasts an array of features that make it an ideal choice for your heat flow measurement needs.

Specialized functions for heat flow measurement
Easy scaling settings: directly enter the sensitivity of the heat flow sensor
Calculations: waveform processing function for the analysis of temperature and heat flow
10 isolated analog channels using scanning input method
4 pulse input channels
4.3-inch WQVGA-TFT color LCD

Who Needs the Hioki LR8432-30?

The Hioki LR8432-30 Heat Flow Logger is designed for a wide range of applications, including research and development, quality control, and data analysis.

Whether you’re working in a laboratory, factory, or field, this logger is an essential tool for your electrical safety standards compliance and data analysis needs.

At mme-ae, we understand the importance of accurate and reliable data. That’s why we offer the Hioki LR8432-30 Heat Flow Logger, a trusted instrument for your electrical measurement needs.

Hioki LR8432-30 Applications

The Hioki LR8432-30 Heat Flow Logger has a wide range of applications, including:

Research and development
Quality control
Data analysis
Electrical safety standards compliance

Why Buy Hioki LR8432-30 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Hioki LR8432-30 Heat Flow Logger, a cutting-edge instrument designed for precise heat flow measurement.

With our expertise in electrical instruments, we are your trusted partner for all your electrical measurement needs.

Explore our electrical safety standards guide for more information.

Hioki LR8432-30 Specifications

Specialized functions for heat flow measurement	– Easy scaling settings: directly enter the sensitivity of the heat flow sensor – Calculations: waveform processing function for the analysis of temperature and heat flow (Simple average, moving average, integration, heat transmission coefficient), Integration with numerical calculations
Analog inputs	[No. of channels] 10 isolated analog channels using scanning input method (M3 mm dia. screw terminal block) [Voltage measurement range] ±10 mV to ±60 V, 1-5V, Max. resolution 500 nV [Temperature : thermocouples] −200 ˚C to 1800 ˚C (depending on sensor), thermocouples (K, J, E, T, N, R, S, B), Max. resolution 0.1˚C [Humidity] not available [Max. allowable input] 60 V DC [Max. rated voltage between input channels] [Max. rated voltage to earth] 30 AC V rms, 60 V DC (max. voltage between input channel terminals, and from terminals to chassis ground without damage)
Pulse inputs	[No. of channels] 4 pulse input channels (requires CONNECTION CABLE 9641, all pulse inputs share common ground with the main unit) [Totalized pulses] 0 to 1000M (count) (No-voltage ‘a’ contact, open collector or voltage input), Max. resolution 1 pulse [Rotation count] 0 to 5000/n (r/s), Resolution 1/n (r/s) * n = pulses per rotation (1 to 1,000) [Max. allowable input] 0 to 10 V DC [Max. rated voltage between input channels] [Max. rated voltage to earth] Non-isolated
Recording intervals	10 ms to 1 hour, 19 selections (All input channels are scanned at high speed during every recording interval)
Selectable filters	50 Hz, 60 Hz, or OFF (digital filtering of high frequencies on analog channels)
Memory capacity	Internal storage: 3.5 M-words, External storage: CF card or USB memory stick (only the Hioki CF cards are guaranteed for correct operation)
External interface	USB 2.0 mini-B receptacle ×1; Functions: Control from a PC, Transfers files from the installed CF card to a PC (cannot transfer files from the connected USB memory stick to a PC via USB communication), Data copy between CF card and USB memory stick
Display	4.3-inch WQVGA-TFT color LCD (480 × 272 dots)
Functions	Save data to the CF Card or USB memory stick in real time, Numerical Calculations, etc.
Power supply	AC Adapter Z1005: 100 to 240 V AC (50/60 Hz), 30 VA Max. (including AC adapter), 10 VA Max. (main unit only) Battery Pack 9780: Continuous use 2.5 hours (@25°C/77°F), 3 VA Max. External power source: 10 to 16 V, 10 VA Max. (please contact Hioki distributor for cable; less than 3 m/9.84 ft. cable length)
Dimensions and mass	176 mm (6.93 in.) W × 101 mm (3.98 in.) H × 41 mm (1.61 in.) D, 550 g (19.4 oz.) (Battery Pack 9780 not installed)
Included accessories	Measurement Guide ×1, USB cable L1003×1, AC Adapter Z1005 ×1
