Description

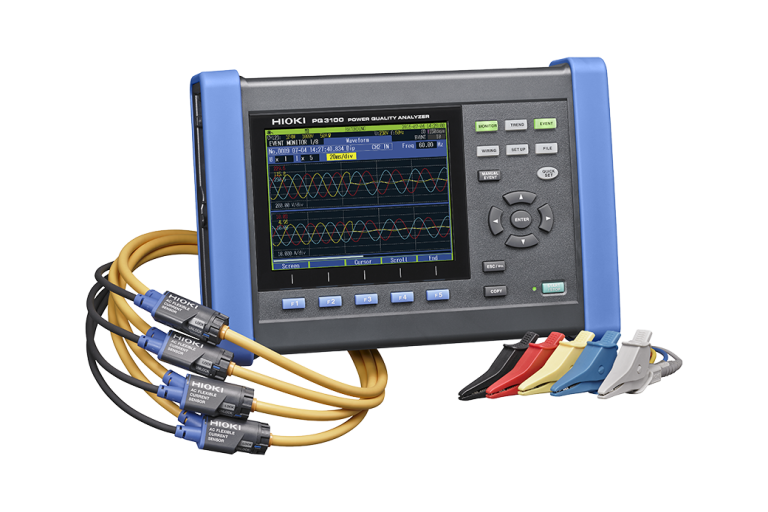

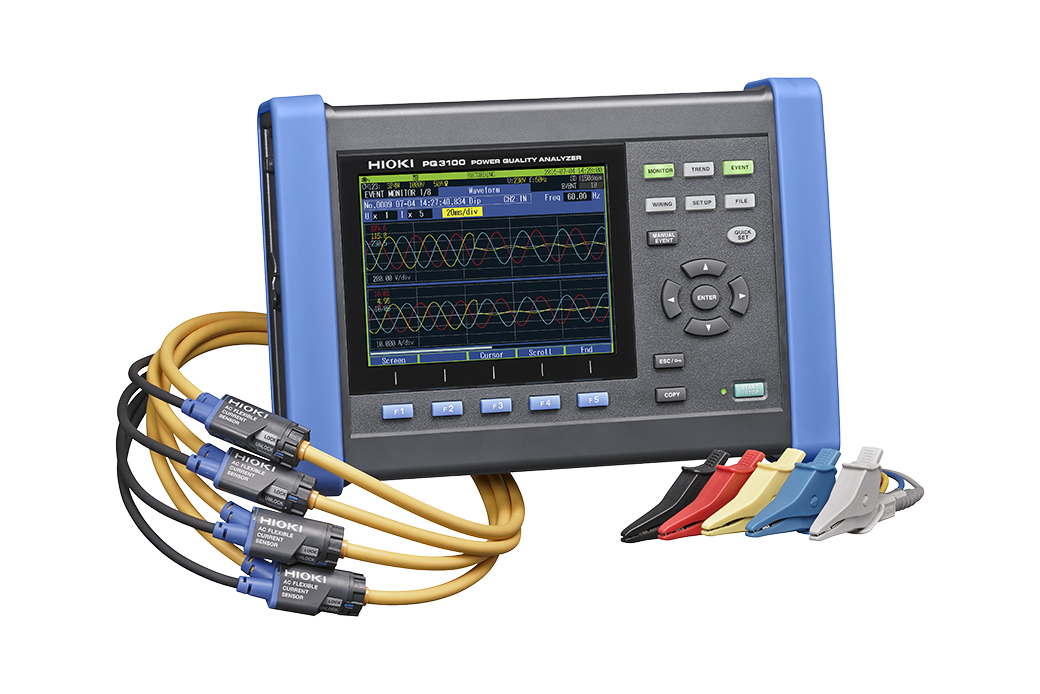

At MME, we offer the Hioki PQ3100-91 Power Quality Analyzer, a cutting-edge tool designed to measure and analyze power quality in various applications. With its advanced features and user-friendly interface, this analyzer is perfect for power quality analysis in industries such as manufacturing, healthcare, and education.

The Hioki PQ3100-91 is a powerful tool that can measure a wide range of parameters, including voltage, current, power, and energy. Its advanced logging capabilities allow for real-time data analysis and storage, making it easy to track and monitor power quality over time.

Hioki PQ3100-91 Key Features

The Hioki PQ3100-91 features a range of advanced measurement items, including transient over voltage, frequency cycle, and voltage swell. It also supports various interfaces and communication protocols, including SD/SDHC memory card, RS-232C, LAN, and USB 2.0.

Transient over voltage: 200 kHz sampling
Frequency cycle: Calculated as one cycle
Voltage (1/2) RMS, Current (1/2) RMS: one cycle calculation refreshed every half cycle
Voltage swell, Voltage dips, Voltage interruption, RVC: Voltage (1/2) RMS calculation
Inrush current: half-cycle calculation
Frequency: 200 ms, 10-sec
Voltage waveform peak, Current waveform peak
Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Apparent energy, Reactive energy, Energy cost, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor
Voltage crest factor, Current crest factor
Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0 th to 50 th orders
Harmonic voltage-current phase angle: 1 th to 50 th orders
Total harmonic distortion factor (voltage/ current)
Inter harmonic (voltage/ current): 0.5 th to 49.5 th orders
K Factor (multiplication factor)
IEC Flicker, Δ V10 Flicker Record: Maximum recording interval: 1 year, Maximum number of recordable events: 9999 × 365 days

Who Needs the Hioki PQ3100-91?

The Hioki PQ3100-91 is designed for a wide range of applications, including power quality analysis in industries such as manufacturing, healthcare, and education. It is also ideal for use in research and development, testing and measurement, and quality control.

With its advanced features and user-friendly interface, the Hioki PQ3100-91 is the perfect tool for anyone who needs to measure and analyze power quality in their work.

Hioki PQ3100-91 Applications

The Hioki PQ3100-91 has a wide range of applications, including:

Power quality analysis in manufacturing, healthcare, and education
Research and development in power systems and electrical engineering
Testing and measurement in power quality and electrical safety
Quality control in power systems and electrical equipment

Why Buy Hioki PQ3100-91 from mme-ae?

See other Hioki instruments.

At mme-ae, we offer the Hioki PQ3100-91 Power Quality Analyzer at a competitive price, with fast shipping and excellent customer service. We also offer a range of accessories and support services to help you get the most out of your analyzer.

Whether you’re a professional engineer or a student, the Hioki PQ3100-91 is the perfect tool for anyone who needs to measure and analyze power quality. Buy now from mme-ae and take advantage of our expertise and support.

Hioki PQ3100-91 Specifications

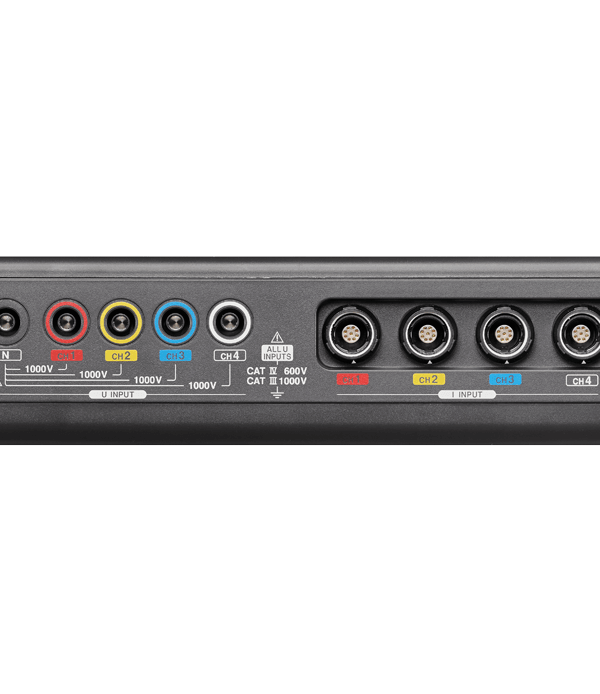

Measurement line type	Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel CH4 for voltage/current, (all channels AC/DC measurement)
Voltage ranges	Voltage measurement: 1000.0 V rms or DC, Transient measurement 2.200 kV peak
Current ranges	50.000 mA AC to 5.0000 kA AC, 10.000 A DC to 2.0000 kA DC (depends on current sensor in use)
Power ranges	50.000 W to 6.0000 MW (determined automatically based on current range in use)
Basic accuracy	Voltage: ±0.2% of nominal voltage, Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy, Active power: DC ±0.5 % rdg. ±0.5 % f.s. + current sensor accuracy, AC ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
Measurement items	1. Transient over voltage : 200 kHz sampling 2. Frequency cycle : Calculated as one cycle 3. Voltage (1/2) RMS, Current (1/2) RMS: one cycle calculation refreshed every half cycle 4. Voltage swell, Voltage dips, Voltage interruption, RVC (Ver.2.0 or later) : Voltage (1/2) RMS calculation 5. Inrush current : half-cycle calculation: Calculated as the current RMS value for current waveform data sampled every half-cycle. 6. Frequency 200 ms: Calculated as 10 or 12 cycles 7. 10-sec frequency: Calculated as the whole-cycle time during the specified 10 s period 8. Voltage waveform peak, Current waveform peak 9. Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Apparent energy, Reactive energy, Energy cost, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor 10. Voltage crest factor, Current crest factor 11. Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0 th to 50 th orders 12. Harmonic voltage-current phase angle: 1 th to 50 th orders 13. Total harmonic distortion factor (voltage/ current) 14. Inter harmonic (voltage/ current): 0.5 th to 49.5 th orders 15. K Factor (multiplication factor) 16. IEC Flicker, Δ V10 Flicker
Record	Maximum recording interval: 1 year, Maximum number of recordable events: 9999 × 365 days
Interfaces	SD/SDHC memory card, RS-232C (for communication/ LR8410 link), LAN (HTTP server/ FTP/ Send e-mail), USB 2.0 (for communication)
Logger connectivity	Sends measured values wirelessly to logger by using a Bluetooth® wireless technology serial conversion adapter. (Supported devices: Hioki LR8410 Link-compatible loggers), Ver. 2.0 and later
Display	6.5-inch TFT color LCD (640 × 480 dots)
Power supply	AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A), Battery pack Z1003 (Continuous use: 8 hr, Charging time: Max. 5 hr 30 m with AC adapter)
Dimensions and mass	300 mm (11.81 in)W × 211 mm (8.31 in)H × 68 mm (2.68 in)D, 2.5 kg (88.2 oz) (including battery pack)
Included accessories	Instruction manual ×1, Measurement guide ×1, Voltage cord L1000-05 ×1 set (Red/Yellow/Blue/Gray/Black, Alligator clip ×5, Spiral tube ×5), Color clip (for identifying clamp sensor color) ×1 set, Spiral tube ×5, AC adapter Z1002 ×1, Strap ×1, USB cable (1 m 3.28 ft length) ×1, Battery pack Z1003 ×1
