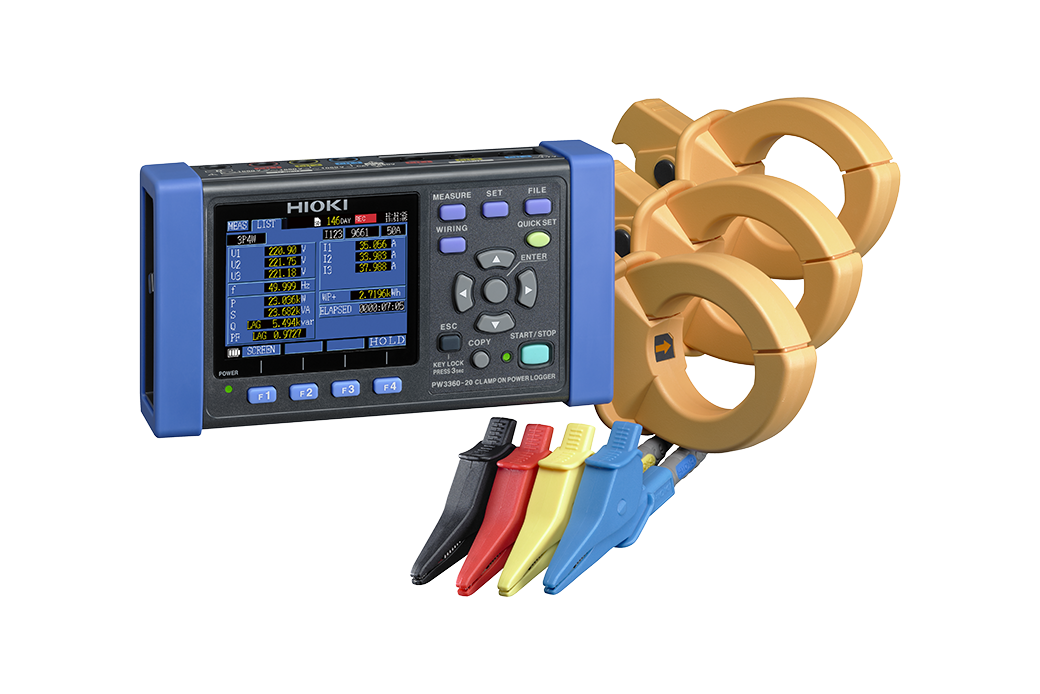

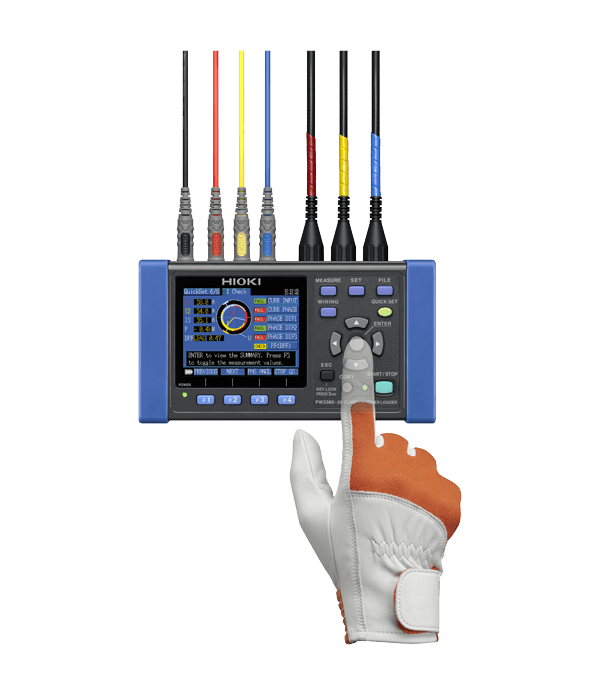

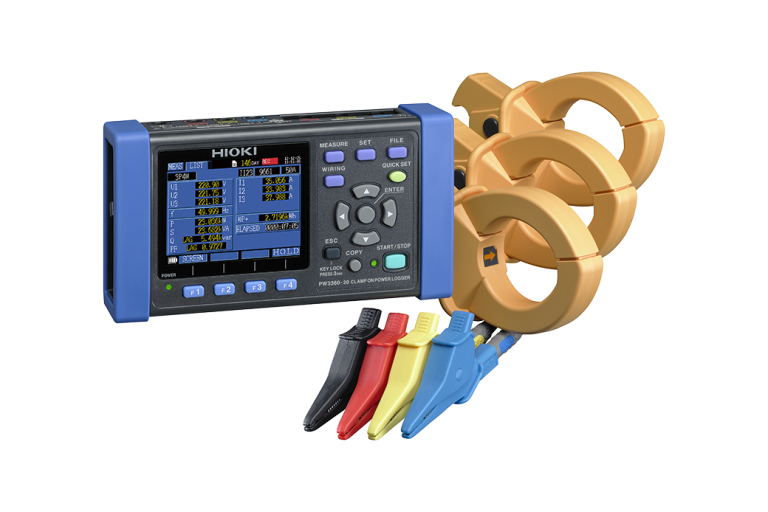

Hioki PW3360-20 Clamp On Power Logger — Electrical Instruments

At MME, we offer the Hioki PW3360-20 Clamp On Power Logger, a powerful tool for measuring electrical power in various applications. With its high accuracy and wide measurement ranges, this logger is ideal for electrical instruments professionals.

The PW3360-20 features ±0.3% rdg. ±0.1% f.s. accuracy for voltage and current measurements, making it a reliable choice for power measurement. Its wide voltage and current ranges from 600 V AC to 5 kA AC ensure that it can handle various measurement tasks.

Hioki PW3360-20 Key Features

The PW3360-20 has several key features that make it a valuable tool for electrical power measurement. These include:

• Measurement line & number of circuits: 50/60 Hz, Single phase 2 wires (1/2/3 circuits), Single phase 3 wires (1 circuit), Three phases 3 wires (1 circuit), Three phases 4 wires (1 circuit), Current only: 1 to 3 channels
• Measurement items: Voltage RMS, current RMS, voltage fundamental wave value, current fundamental wave value, voltage fundamental wave phase angle, current fundamental wave phase angle, frequency (U1), voltage waveform peak (absolute value), current waveform peak (absolute value), active power, reactive power (with lag/lead display), apparent power, power factor (with lag/lead display) or displacement power factor (with lag/lead display), active energy (consumption, regeneration), reactive energy (lag, lead), energy cost display, active power demand quantity (consumption, regeneration), reactive power demand quantity (lag, lead), active power demand value (consumption, regeneration), reactive power demand value (lag, lead), power factor demand, pulse input [PW3360-21 only]: Harmonic voltage level, harmonic current level, harmonic power level, content percentage, phase angle, total harmonic distortion (THD-F or THD-R), up to 40th order
• Voltage ranges: 600 V AC (Effective measurement range: 90.00 V to 780.00 V)
• Current ranges: 500.00 mA to 5.0000 kA AC (depends on current sensor in use), 50.000 mA to 5.0000 A AC (Leak clamp on sensor only)
• Power ranges: 300.00 W to 9.0000 MW (depends on voltage/current combination and measured line type)
• Basic accuracy: Voltage : ±0.3% rdg. ±0.1% f.s Current : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy Active power : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy (at power factor = 1)
• Display update rate: 0.5 sec (except when accessing SD card or internal memory, or during LAN/USB communication)
• Save destination: SD memory card, or internal memory at real time
• Data save interval: 1 sec to 30 sec, 1 minute to 60 minutes, 14 selections
• Save items: Measurement value save: Average only / Average, Max./Min. value, [PW3360-21 only]: Harmonic data save: Average only / average, max./min. value in binary format, Screen copy: BMP form (saved every 5 min. at minimum interval time), Waveform save: Binary waveform data
• Interfaces: SD/SDHC memory card LAN 100BASE-TX: HTTP server function USB 2.0: When connected to a PC, the SD Card and internal memory are recognized as removable storage devices, remote settings via communication program, data download
• Pulse output: proportional to active power consumption when measuring i

Who Needs the Hioki PW3360-20?

The Hioki PW3360-20 Clamp On Power Logger is designed for professionals who need accurate and reliable power measurement in various applications. This includes:

Electrical engineers and technicians who need to measure power in electrical systems.

Power plant operators who need to monitor and control power output.

Researchers who need to measure power in laboratory settings.

Anyone who needs to measure power in a variety of applications, from residential to industrial.

Hioki PW3360-20 Applications

The Hioki PW3360-20 Clamp On Power Logger has a wide range of applications, including:

• Power measurement in electrical systems
• Power monitoring and control in power plants
• Research and development in laboratories
• Power measurement in residential and commercial buildings
• Power measurement in industrial settings

Why Buy Hioki PW3360-20 from mme-ae?

Read more in our electrical safety standards guide.

At mme-ae, we offer the Hioki PW3360-20 Clamp On Power Logger at competitive prices, with fast shipping and excellent customer service. We also offer a wide range of electrical instruments and accessories, including Hioki instruments and electrical instruments.

Whether you’re a professional or a hobbyist, we have the tools and expertise to help you get the job done. Contact us today to learn more about the Hioki PW3360-20 Clamp On Power Logger and how it can benefit your work.

Hioki PW3360-20 Specifications
