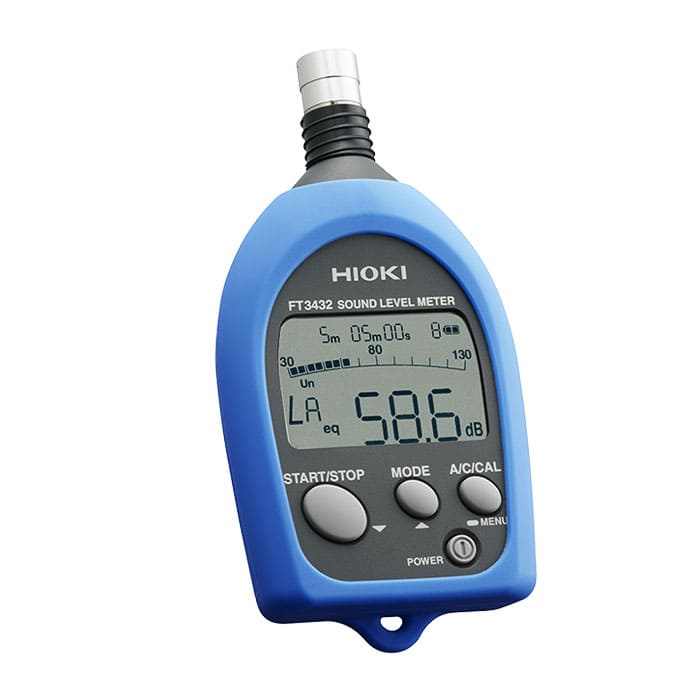

HIOKI SOUND LEVEL METER FT3432

The Hioki FT3432 sound level meter is used in noise management by facilitating the measurement of noise in factories and schools, near machinery, etc., to ensure a more comfortable environment. Small enough to fit in a pocket and weighing just 105 g, the instrument measures sound level, equivalent continuous sound level, sound exposure level, maximum sound level, and C-weighted peak sound level.

HIOKI SOUND LEVEL METER FT3432 Specifications

Applicable standards : IEC 61672-1: 2013 Class 2, JIS C 1509-1: 2017 Class 2, JIS C 1516: 2020 Class 2
Measurement functions :Sound level, Equivalent continuous sound level, Sound exposure level, Maximum sound level, C weighting peak sound level (measurement possible only when peak range is selected)
Measurement times : 1/5/10 minutes, or 1 hour
Microphone : 1/2-inch electret condenser microphone
Frequency weighting characteristics : A weighting, or C weighting
Measurement level range :
[Wide range] A weighting: 30 dB to 137 dB, C weighting: 36 dB to 137 dB
[Peak range] A weighting: 65 dB to 137 dB, C weighting: 65 dB to 137 dB
Frequency range: 20 Hz to 8000 Hz
Time weighting characteristics : F (fast) and S (slow)
Calibration : Electronic calibration: Using an internal electronic signal (1 kHz, 94.0 dB)
Sound calibration: Using NC-75 (1 kHz, 93.9 dB), NC-72B (250 Hz, 114.0 dB)
Processing : Digital sampling interval 30.3 µs (Lp, Leq, Lmax, LE, LCpeak)
Functions : Storing processing results (Storing capacity : 199 pieces of data),
Warning indications, Bar graph
Output connector : DC output connector / AC monitor output connector
Power supply :LR03 (AAA) alkaline battery ×2, Continuous use 9 hr at wide range,
R03 (AAA) manganese battery ×2, Continuous use 3 hr at wide range,Consumption: 80 mA
Environmental conditions for operation -10 to 50˚C (14˚F to 122˚F), 10 to 90% RH (No condensation)
Dimensions and mass : 63 W × 120 H × 23.5 D mm (2.48″ W × 4.72″ H × 0.93″D), 105 g (3.7oz.) (including batteries)
Accessories : Wind screen WS-14 ×1, Hand strap VM-63-017 ×1, Windscreen fall out
prevention rubber NL-27-014 ×1, Silicon cover NL-27-089 ×1, Carrying
Case 9757 ×1, LR03 (AAA) alkaline batteries ×2, Instruction manual ×1
