Description

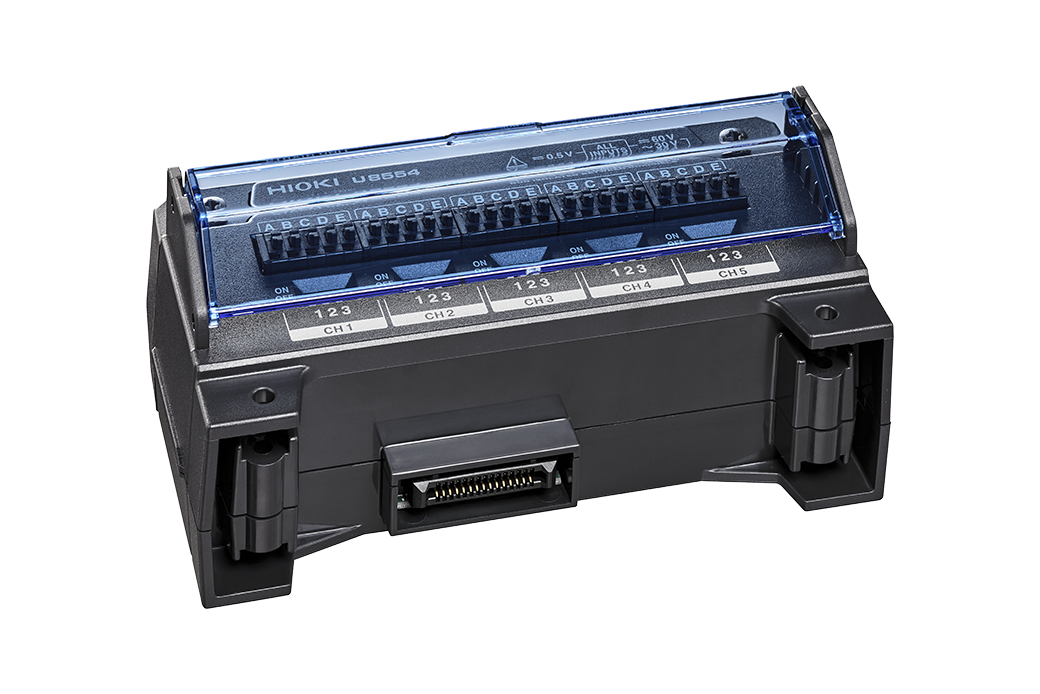

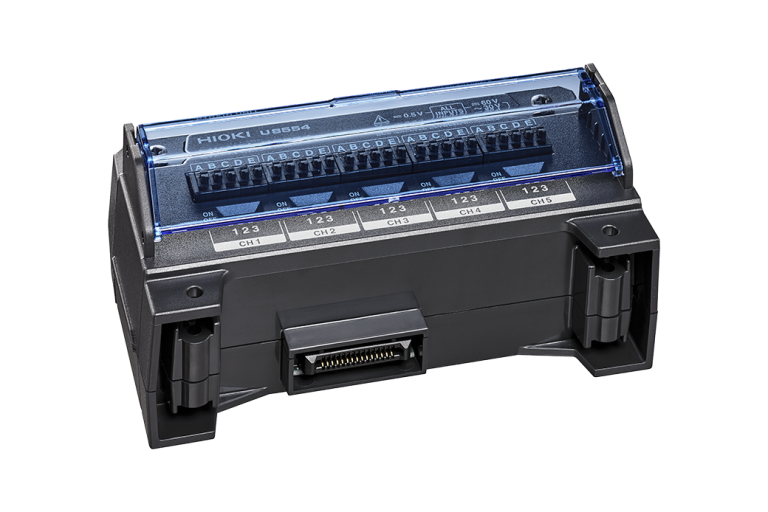

At MME, we offer the Hioki U8554 Strain Unit for precise strain measurements in various applications. This unit is designed to work with the Memory HiLogger LR8450 and LR8450-01, allowing for efficient data collection and analysis.

With an operating temperature range of -10°C to 50°C and 80% RH or less, the Hioki U8554 Strain Unit is suitable for use in various environments. The unit features 5 input channels, each with a push-button type terminal block (5 terminals per channel), making it easy to connect and measure various signals.

Hioki U8554 Key Features

The Hioki U8554 Strain Unit offers a range of key features, including:

Connectable instruments: Memory HiLogger LR8450 and LR8450-01
Operating temperature: -10°C to 50°C, 80% RH or less
Number of input channels: 5 ch
Input terminals: Push-button type terminal block (5 terminals per channel)
Measurement target: Voltage, Strain
Strain gauge transducer: Balanced differential input, Simultaneous sampling of all channels
Resolution: 1 mV f.s. (50 nV) to 200 mV f.s. (10μV) for voltage measurement, 1,000 με f.s. (0.05 με) to 200,000 με f.s. (10 με) for strain measurement

Who Needs the Hioki U8554?

The Hioki U8554 Strain Unit is designed for use in various applications, including:

Research and development

Quality control

Manufacturing

The unit is suitable for use in various industries, including:

Aerospace

Automotive

Medical

Industrial

Hioki U8554 Applications

The Hioki U8554 Strain Unit is used in a variety of applications, including:

Structural testing

Material testing

Process monitoring

Condition monitoring

Why Buy Hioki U8554 from MME?

At mme-ae, we offer the Hioki U8554 Strain Unit for sale, along with a range of other electrical instruments. Our team of experts can provide you with advice and support to ensure that you find the right product for your needs.

For more information, please visit our electrical instruments category, or read our electrical safety standards guide. You can also contact us to learn more about the Hioki brand.

Hioki U8554 Specifications

Connectable instruments	Memory HiLogger LR8450 (Designed for use with plug-in units only) Memory HiLogger LR8450-01 (Wireless LAN model)
Operating temperature and humidity	-10°C to 50°C, 80% RH or less (no condensation)
Storage temperature and humidity	-20°C to 60°C, 80% RH or less (no condensation)
Vibration resistance	JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
Included accessories	Instruction manual × 1, mounting screw × 2, wiring confirmation label
Number of input channels	5 ch (Able to set voltage or strain for each channel.)
Input terminals	Push-button type terminal block (5 terminals per channel), outfitted with terminal block cover Set DIP switches according to measurement target.
Measurement target	Voltage Strain: Strain gage 1-gage method (2-wire setup), 1-gage method (3-wire setup), 2-gage method (adjacent sides), 4-gage method Strain gauge transducer
Input type	Balanced differential input, Simultaneous sampling of all channels (non-isolated channels)
Voltage measurement (resolution)	1 mV f.s. (50 nV), 2 mV f.s. (100 nV), 5 mV f.s. (250 nV), 10 mV f.s. (500 nV), 20 mV f.s. (1μV), 50 mV f.s. (2.5μV), 100 mV f.s. (5μV), 200 mV f.s. (10μV)
Strain measurement (resolution)	1,000 με f.s. (0.05 με), 2,000 με f.s. (0.1 με), 5,000 με f.s. (0.25 με), 10,000 με f.s. (0.5 με), 20,000 με f.s. (1 με), 50,000 με f.s. (2.5 με), 100,000 με f.s. (5 με), 200,000 με f.s. (10 με)
