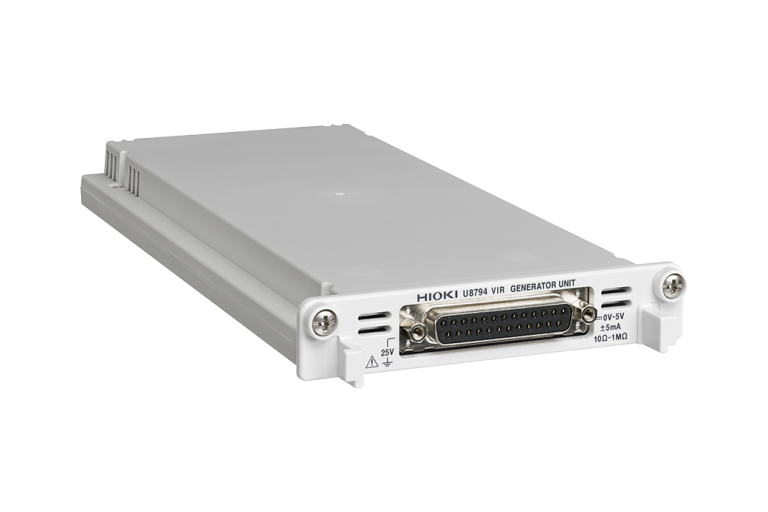

Hioki U8794 VIR GENERATOR UNIT — Electrical Test and Measurement

At Mohammad Mahdi Electronics, we offer the Hioki U8794 VIR GENERATOR UNIT for precise electrical test and measurement. This unit is designed to provide a stable and reliable output for a variety of applications.

With its 8 isolated output channels and 25-pin D-sub connector, the Hioki U8794 is ideal for use in a range of industries, including electrical engineering, research and development, and manufacturing.

Hioki U8794 Key Features

The Hioki U8794 VIR GENERATOR UNIT offers a range of key features, including:

• Output terminal: 8 channels, isolated
• Connector: 25-pin D-sub
• Max. rated voltage to earth: 25 V
• Output items: DC voltage, DC current, resistance (simulated output)
• Output range: DC voltage: -0.100 0 V to +5.300 0 V, DC current: 5 mA range: -5.000 0 mA to +5.000 0 mA
• Setting resolution: 0.1 mV, 0.1 μA, 0.01 μA, 0.001 μA
• Output accuracy: DC voltage: 5 V range, ±0.035% of setting ± 800 μV, DC current: 5 mA range: ±0.050% of setting ± 4.0 μA

Who Needs the Hioki U8794?

The Hioki U8794 VIR GENERATOR UNIT is designed for use in a range of applications, including:

Electrical engineering and research and development

Manufacturing and quality control

Testing and measurement

Hioki U8794 Applications

The Hioki U8794 VIR GENERATOR UNIT is suitable for a variety of applications, including:

Why Buy Hioki U8794 from mme-ae?

Browse our recorders and dataloggers. Read more in our measurement guides.

At mme-ae, we offer the Hioki U8794 VIR GENERATOR UNIT at a competitive price, with fast shipping and excellent customer service. Whether you’re looking for a reliable and accurate test and measurement solution or just need a replacement unit, we’ve got you covered.

For more information on the Hioki U8794 VIR GENERATOR UNIT or to place an order, please contact us at Mohammad Mahdi Electronics today.

Hioki U8794 Specifications
