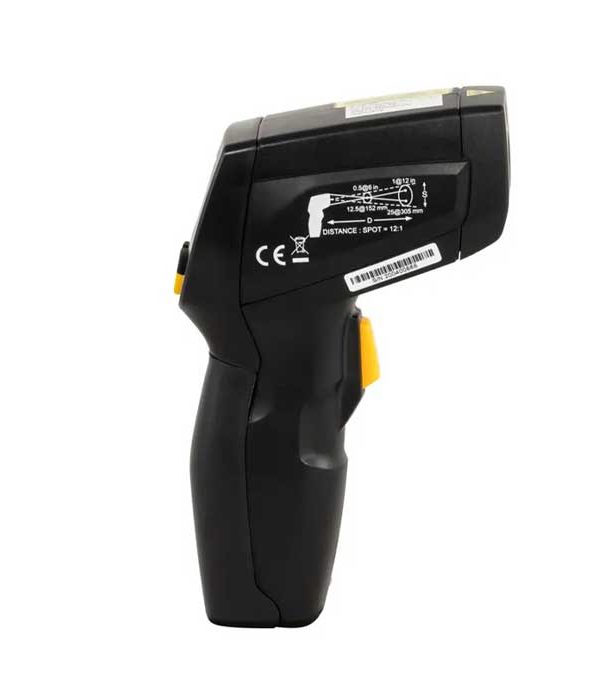

Infrared Thermometer PCE-MIR 20

Infrared Thermometer PCE-MIR 20

The PCE-MIR 20 infrared thermometer covers a wide temperature range and is an accurate measuring device. Its measurement range is 760 to -50 degrees Celsius, with an accuracy of +-2% in 20…….760 degrees Celsius. There are two lasers “on” this device, which are placed for better orientation of the measured point, and both of them have an output power of more than 1 megawatt.
The minimum and maximum temperatures can be set separately with the warning of the limit value of the thermometer, and if the limit value is exceeded, it will be shown immediately visually and acoustically.
To operate the device, the measurement button must be pressed, then the measurement is performed immediately, and if the key is released, the last value remains on the display until a new measurement is performed.
The PCE-MIR2O infrared thermometer can optionally be equipped with an ISO calibration certificate.
In MME, experience high-quality and easy shopping.

Infrared Thermometer PCE-MIR 20 key feature :

• Measuring range -50 … +760 °C
• Double laser for better orientation
• Limit value alarm MAX / MIN
• adjustable emission value
• backlit display
• optionally with ISO calibration certificate.

Infrared Thermometer PCE-MIR 20Specification :

• Measuring range : -50 … +760 °C / -58 … +1400 °F
• Resolution : 0,1 °C / 0,1 °F
• Accuracy : ±3 °C / 5,4 °F bei -50 … +20 °C / -58 … +68 °F
  ±2 % ±2 °C / 3,6 °F at20 … 760 °C / 68 …1400 °F
• Repeatability : ±1 °C / ±1,8 °F
• Spot ratio: 12:1
• Emission value: 0,10 … 1,00
• Measuring rate: 2 Hz
• Spectral range: 8 … 14 µm
• Power supply: 9 V block battery
• Dimensions : 175 x 75 x 35 mm
• Weight: 132 g
