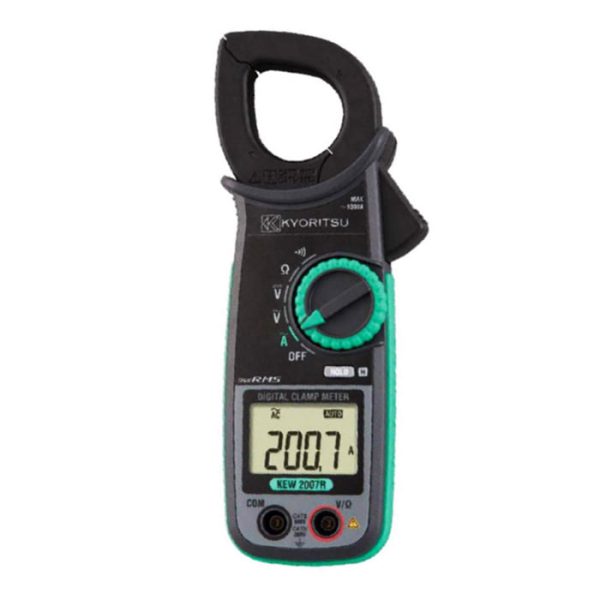

Kyoritsu 2007R AC Digital Clamp Meter
3 Comments
The Kyoritsu 2007R Clamp Meter offers high accuracy for professional electrical measurements.
Terms of sending goods ›
Order Via phone number
Order Via Online Form
In Stock
Description
kyoritsu 2007r digital clamp meter
The Kyoritsu 2007R AC Digital Clamp Meter is an exceptional tool designed for electrical professionals who demand accuracy, safety, and convenience. This advanced kyoritsu clamp meter incorporates state-of-the-art features to ensure precise measurements and user-friendly operation, making it a top choice for a wide range of electrical applications.
2007r Kyoritsu Features
2007r kyoritsu features are:
- Frequency response of 40 – 400Hz
- Full Safety Jaw
- The ergonomic over-molded body gives convenient one-handed operation
- Large easy-to-read display with 0.1 A resolution
- Accurate reading with True RMS 600/1000A auto-ranging
- Long battery life
- Safety Standard: IEC61010-1 CAT IV 300V / CAT III 600V
kyoritsu kew 2007r Fully Safety Jaw
The kyoritsu 2007r digital clamp meter prioritizes safety with its fully safety jaw design. This feature ensures a secure and insulated connection when measuring current, minimizing the risk of accidental contact with live conductors. The safety jaw enhances user confidence, making it safer to work in high-voltage environments.
Ergonomic Over-Molded Body
Designed for ease of use, the clamp meter kyoritsu 2007r features an ergonomic over-molded body that facilitates convenient one-hand operation. This comfortable grip reduces hand fatigue during prolonged use and allows for better maneuverability in tight spaces. The over-molded design also provides a secure hold, ensuring stability while taking measurements.
Large Easy-to-Read Display
The digital clamp meter kyoritsu 2007r is equipped with a large, easy-to-read display that boasts a 0.1A resolution. This high-resolution display allows users to quickly and accurately interpret measurement data, even in low-light conditions. The clear display ensures that every detail is visible, improving overall efficiency and accuracy in electrical testing.
What is the Kyoritsu 2007R used for?
The Kyoritsu 2007R clamp meter is a high-precision digital tool for measuring AC current up to 1000A, voltage, resistance, and continuity in industrial, commercial, and electrical maintenance environments.
Is the Kyoritsu 2007R a True RMS clamp meter?
No, the Kyoritsu 2007R is a standard AC clamp meter and does not feature True RMS technology. It is best suited for pure sine wave measurements in stable electrical systems.
What is the current measurement range of the 2007R?
It can measure AC current from 0 to 1000A, making it ideal for medium to heavy-duty industrial applications.
Additional information
| clamp__meter__type |
AC |
|---|---|
| max__current__ac (clamp meter) |
601-1000 |
| max__voltage__ac (clamp meter) |
401-600 |
| max__voltage__dc (clamp meter) |
401-600 |
Specifications
Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| AC A | 600.0/1000A (Auto-ranging) ±1.5%rdg±4dgt [45 – 65Hz] ±2.0%rdg±4dgt [40 – 400Hz] |
| AC V | 600.0V ±1.2%rdg±3dgt [45 – 65Hz] ±1.5%rdg±4dgt [40 – 400Hz] |
| DC V | 600.0V ±1.2%rdg±3dgt |
| Ω | 600.0Ω/6.000kΩ (Auto-ranging) ±1.3%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6.000kΩ) |
| Continuity buzzer | 600Ω (Buzzer sounds below 90Ω) |
| Conductor size | φ33mm max. |
| Applicable standards | IEC 61010-1 CAT IV 300V / CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS) |
| Power source | R03/LR03 (AAA) (1.5V) × 2 |
| Continuous measuring time | Approx.170 hours (when R03 is used) (Auto power save : Approx. 10 minutes) |
| Dimension | 204(L) × 81(W) × 36(D)mm |
| Weight | Approx. 220g (including batteries) |
| Accessories | 7066A (Test leads) 9079 (Carrying case) R03 (AAA) × 2, Instruction Manual |
