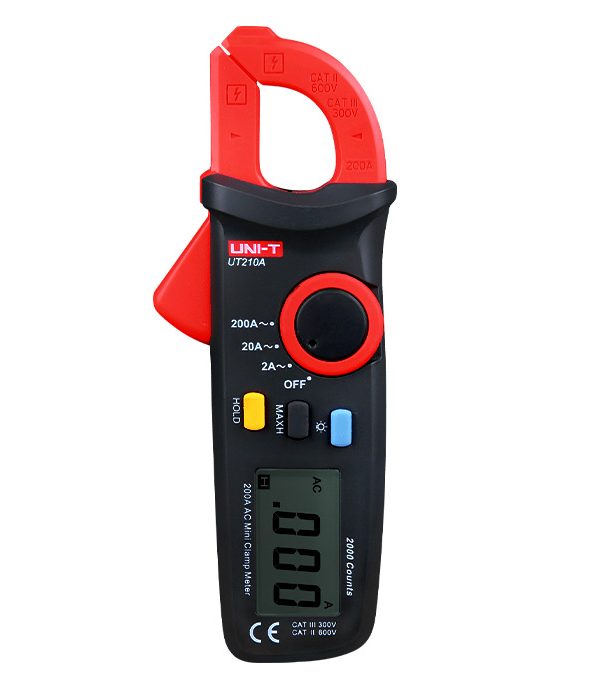

UNI-T UT210A Mini Clamp Meter

Brand: Uni-T

SKU: 59248

The UNI-T UT210A Mini Clamp Meter is a compact and reliable tool that offers versatility and accuracy for professionals working in limited space environments. Despite its small size, it provides essential features such as auto range, LCD backlight, data hold, and auto power off. With its versatile measurement capabilities and certifications, this clamp meter is a trusted companion for various applications. Please note that the product is currently out of stock. To explore other available UNI-T clamp meter options and to learn more about their features, specifications, and accessories, visit the mme.ae website. Invest in the UNI-T UT210A Mini Clamp Meter and experience its reliability and convenience in your everyday electrical tasks.

Safe Buy
Fast Delivery
Original Guarantee
Online Payment

Call for price

Ask on WhatsApp

In-stock items are delivered within 2 business days.
We are not Supporting COD Payments Terms Outside UAE
For out-of-stock items, delivery may take 2 to 4 business weeks.

Request a rental quote in 3 quick steps.

Step 1 of 3 — Contact

First name

Last name

No login needed — guests can submit. We email your quote to this address.

Repair & calibration request — 2 steps.

Step 1 of 2 — Contact

First name

Last name

Phone

Company

Address

ZIP / Postal code

No login needed — guests can submit a repair request.

Description

Overview

The UNI-T UT210A is a compact 2000-count mini clamp meter designed for AC current measurement up to 200A in tight, space-limited environments. With a 16mm jaw, it also measures DC/AC voltage and resistance, and adds a continuity buzzer, data hold, LCD backlight and auto power off in a lightweight, easy-to-handle body.

Key Features

Compact mini clamp with a 16mm jaw for up to 200A AC
2000-count display with LCD backlight
DC/AC voltage up to 600V and resistance measurement
Continuity buzzer and data hold
Auto power off in a lightweight 150g body

Applications

Current measurement in tight or crowded panels
Electrical installation and maintenance
Field service and troubleshooting
Household and light commercial electrical work

What’s in the Box

UT210A mini clamp meter
1.5V (R03) batteries x2
English manual

Why buy from MME in UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) is a trusted supplier of Uni-T test and measurement equipment in the UAE. We offer genuine products, competitive pricing, fast local delivery across Dubai, Abu Dhabi and the wider UAE, and knowledgeable after-sales support. Download the datasheet

Specifications

PARAMETER	SPECIFICATION
AC Current	200A, ±(2.5%+20)
DC Voltage	Up to 600V, ±(0.7%+3)
AC Voltage	Up to 600V, ±(1%+3)
Resistance	Up to 20MΩ, ±(1%+2)
Jaw Opening	16mm
Display Count	2000
Continuity Buzzer	Yes
Data Hold	Yes
LCD Backlight	Yes
Auto Power Off	Yes
Power	1.5V (R03) battery × 2
Net Weight	150g (with batteries)
Dimensions	158mm × 60mm × 33.5mm

Technical data

Specifications	Range	UT210A	UT210B	UT210C	UT210D	UT210E
AC current (A)	200A	±(2.5%+20)	±(2.5%+20)	±(2%+10)	±(2.5%+8)	±(2.5%+5)
	100A					±(2.5%+5)
DC current (A)	200A				±(2%+3)
	100A					±(2%+3)
AC voltage (V)	600V			±(1%+3)	±(1%+3)	±(1%+3)
DC voltage (V)	600V			±(0.7%+3)	±(0.7%+3)	±(0.7%+3)
Resistance (Ω)	20MΩ			±(1%+2)	±(1%+2)	±(1%+2)
Frequency (Hz)	60kHz				±(0.1%+4)
Capacitance (F)	20mF			±(4%+5)	±(4%+5)	±(4%+5)
Temperature	-40~1000℃			±(1%+3)	±(1%+3)
	-40~1832℉			±(1.5%+5)	±(1.5%+5)
Display count		2000	2000	2000	2000	2000
Continuity buzzer		√	√	√	√	√
Auto range			√	√	√
Jaw opening		16mm	16mm	17mm	17mm	17mm
Diode test	Around 3.0V		√	√	√
Power		1.5V battery (R03) x 2	1.5V battery (R03) x 2	1.5V battery (R03) x 2	1.5V battery (R03) x 2	1.5V battery (R03) x 2
Display		39.3mm x 26.5mm	39.3mm x 26.5mm	39.3mm x 26.5mm	39.3mm x 26.5mm	39.3mm x 26.5mm
Product color		Red and grey	Red and grey	Red and grey	Red and grey	Red and grey
Product net weight		UT210A/B: 150g (batteries included); UT210C/D/E: 170g	UT210A/B: 150g (batteries included); UT210C/D/E: 170g	UT210A/B: 150g (batteries included); UT210C/D/E: 170g	UT210A/B: 150g (batteries included); UT210C/D/E: 170g	UT210A/B: 150g (batteries included); UT210C/D/E: 170g
Product size		UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm	UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm	UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm	UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm	UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm
Standard accessories		Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D)	Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D)	Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D)	Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D)	Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D)
Standard individual packing		Gift box, English manual, carrying bag (UT210C/UT210D/UT210E)	Gift box, English manual, carrying bag (UT210C/UT210D/UT210E)	Gift box, English manual, carrying bag (UT210C/UT210D/UT210E)	Gift box, English manual, carrying bag (UT210C/UT210D/UT210E)	Gift box, English manual, carrying bag (UT210C/UT210D/UT210E)
Standard quantity per carton		40pcs	40pcs	40pcs	40pcs	40pcs
Standard carton measurement		UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm	UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm	UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm	UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm	UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm
Standard carton gross weight		UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg	UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg	UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg	UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg	UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg
