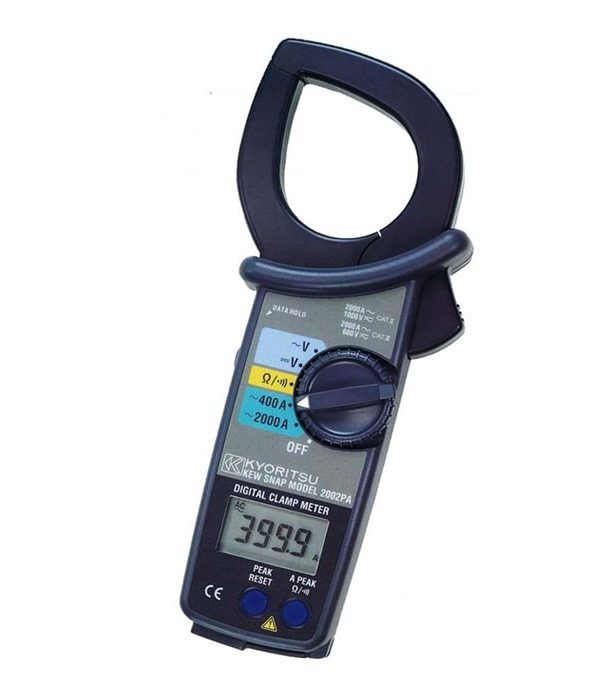

Kyoritsu 2002PA 2000A AC Clamp Meter

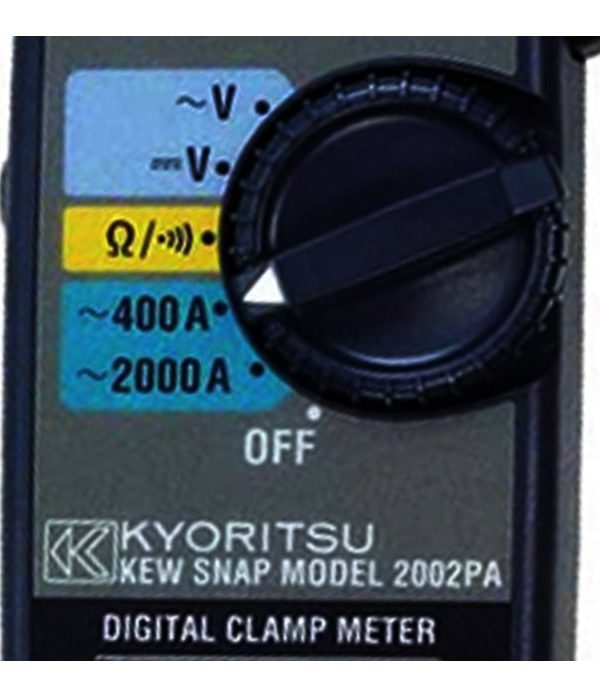

kyoritsu 2002pa digital clamp meter

When it comes to measuring high AC currents, the Kyoritsu 2002PA 2000A AC Clamp Meter stands out as a reliable and efficient tool for professionals in the electrical industry. Designed to handle large current measurements, this clamp meter combines accuracy, ease of use, and advanced features to meet the demands of modern electrical testing.

Measuring Large AC Current Up to 2000A

One of the standout features of the Kyoritsu 2002PA is its ability to measure large AC currents up to 2000A. This high current capacity makes it an ideal choice for a variety of applications, from industrial settings to large-scale electrical installations. Whether you are dealing with heavy machinery, power distribution systems, or other high-current environments, the 2002PA provides precise and reliable measurements.

Peak Hold Function

The peak hold function is a crucial feature for capturing the maximum current value in fluctuating AC circuits. This function allows users to freeze the highest reading on the display, ensuring that no critical data is missed. The peak hold feature is particularly useful in dynamic electrical environments where current levels can change rapidly.

55mm Large Tear Drop Shaped Jaws

The 2002pa kyoritsu is equipped with 55mm large tear drop shaped jaws, providing a significant advantage in terms of versatility and convenience. These large jaws can easily accommodate thick cables and conductors, making it easier to clamp around various types of wiring without the need for additional tools or adjustments. The tear drop shape also enhances the meter’s ability to fit into tight spaces, ensuring accurate measurements in challenging environments.

Kyoritsu 2002PA 2000A AC Clamp Meter Specifications :

• AC A  : 400A (0 – 400A)
  ±1%rdg±3dgt [50/60Hz]
  ±2%rdg±3dgt [40Hz – 1kHz]
  2000A (0 – 1500A)
  ±1%rdg±3dgt [50/60Hz]
  ±3%rdg±3dgt [40Hz – 1kHz]
  2000A (1500 – 2000A)
  ±3.0%rdg [50/60Hz]
• AC V : 40/400/750V
  ±1%rdg±2dgt [50/60Hz]
  ±1.5%rdg±3dgt [40Hz – 1kHz]
• DC V : 40/400/1000V ±1%rdg±2dgt
• Ω : 400Ω/4k/40k/400kΩ ±1.5%rdg±2dgt
• Conductor size : Ø55mm max.
• Frequency response : 40Hz – 1kHz
• Output Recorder : DC400mV against AC400A , DC200mV against AC2000A
• Power source : R6 (AA) (1.5V) × 2
• Dimensions : 247(L) × 105(W) × 49(D)mm
• Weight : 470g approx.
