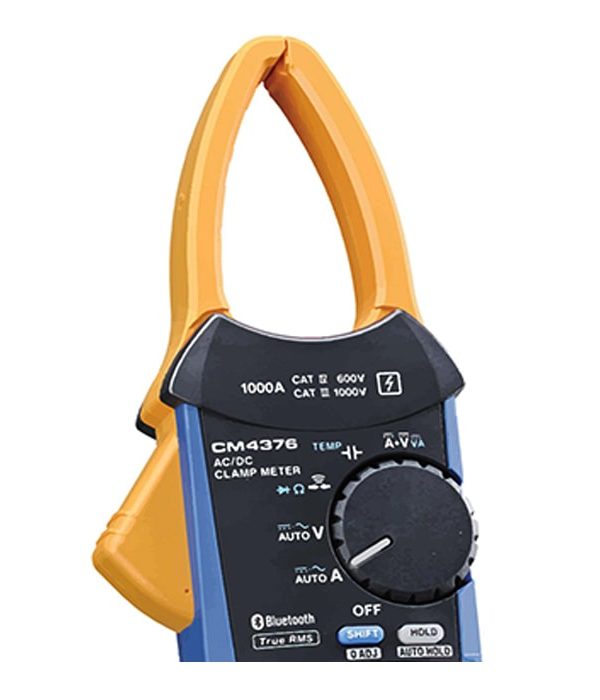

AC/DC CLAMP METER CM4376

AC/DC CLAMP METER CM4376

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4376 is a 1000A AC/DC True RMS clamp meter that features a uniquely designed slim jaw that lets you easily get into the narrow gaps between cables in crowded electrical distribution boxes without fear of damaging the cables or the clamp meter.

Additionally, the high-voltage DC measurement capability of up to 1700 V (*1) is ideal for the clamp maintenance inspections of electrical and solar power equipment. Finally, built-in Bluetooth wireless technology lets you send measured values to a smartphone or tablet, display waveforms in real time, and create reports right on site.

AC/DC CLAMP METER CM4376 Specification:

• DC Current: 1000 A / accuracy: ±1.3% rdg
• AC Current: 1000 A / accuracy 45-66 Hz: ±1.3% rdg
• DC+AC Current: 1000 A / accuracy DC, 45-66 Hz: ±1.3% rdg
• DC Voltage: 600.0 mV to 1700 V / accuracy: ±0.5% rdg
• AC Voltage: 6.000 V to 1000 V / accuracy 45 – 66 Hz: ±0.9% rdg
• DC+AC Voltage: 6.000 V to 1000 V / accuracy DC, 45-66 Hz: ±1.0% rdg
• Resistance: 600.0 Ω to 600.0 kΩ / accuracy: ±0.7% rdg
• Electrostatic  Capacitance: 1.000 μF to 1000 μF / accuracy: ±1.9% rdg
• Frequency: 9.999 Hz to 999.9 Hz / accuracy: ±0.1% rdg
• Temperature (K): -40.0 to 400.0 ˚C
• Dimensions and mass: 65 mm (2.56 in) W × 242 mm (9.53 in) H × 35 mm (1.38 in) D mm, 330 g
