Kyoritsu KEW 5020 Logger

Kyoritsu Loggers KEW 5020

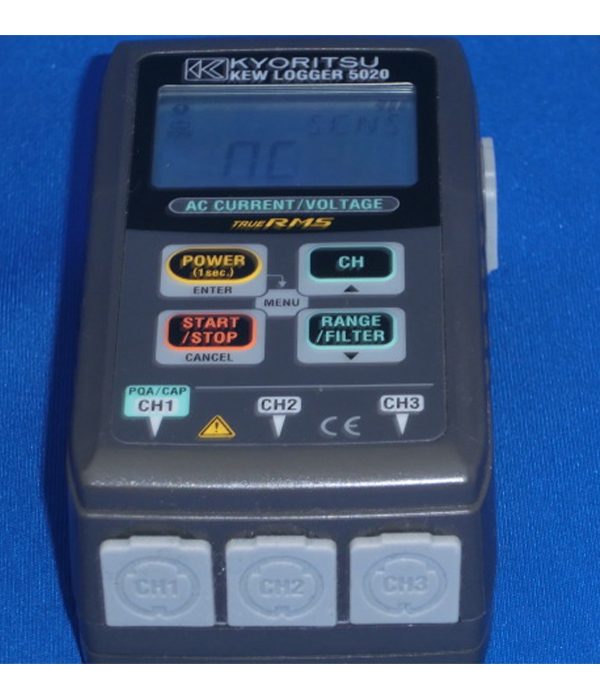

The Kyoritsu 5020 TRMS Current/Voltage Data Logger has three input channels for the simultaneous recording of load current and voltage.

Various measurements are available with four recording modes: Normal, Trigger, Capture and Power Quality Analysis.

The Kyoritsu 5020 data logger is capable of storing up to 60,000 measurements and features non-volatile memory that allows recorded data to be retained even if power is lost.

Kyoritsu Loggers KEW 5020 specifications:

• 3 channel inputs for the simultaneous recording of Leakage Current , Load Current and Voltage

• Recording mode: Normal, Trigger, Capture, Power Quality Analysis
• Operating system: Successive Approximation
  (CH1 single synchronized sampling)
• Rated max. working voltage: AC 9.9Vrms, 14V peak value
• Number of input channel: 3ch
• Measuring method: True RMS
• RMS measuring interval: approx. 100ms
• Sampling interval: Normal/Trigger mode : approx. 1.65ms/CH
  Capture mode : approx. 0.55ms (waveform: at every 1.1ms)
  P.Q.A mode : approx. 0.55ms
• Current range: 8146 (30A type) : 100.0/1000mA/10.00/30.0A
  8147 (70A type) : 100.0/1000mA/10.00/70.0A
  8148 (100A type) : 100.0/1000mA/10.00/100.0A
  8121 (100A type) : 10.00/100.0A
  8122 (500A type) : 50.00/500.0A
  8123 (1000A type) : 100.0/1000A
  8128/8135 (5A type) : 5.000A/(50.00A)
  8127 (100A type) : 10.00A/100.0A
  8126 (200A type) : 20.00A/200.0A
  8125 (500A type) : 50.00A/500.0A
  8124 (1000A type) : 100.0A/1000A
  8130 (1000A type) : 100.0/1000A
• Auto power off: Power-off function operates automatically after a switch remains for 3min. (when recording is stopped)
