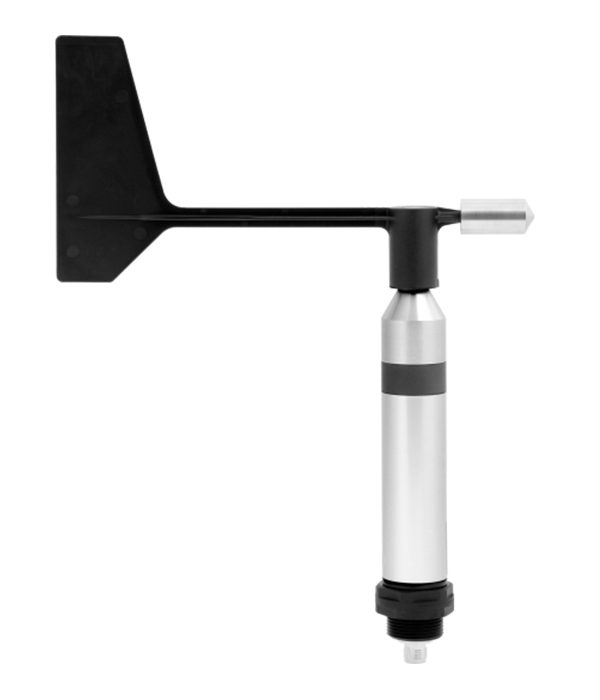

Lambrecht Wind direction sensor Industry

Lambrecht Wind direction sensor Industry

order code:32.14567.060000

“Lambrecht Wind direction sensor” is a wind direction sensor that is used to measure wind direction. This sensor is manufactured by “Lambrecht” company, which is a leading company in the meteorological sensors industry, and it is sold by me-ae.com at the lowest price.

product overview

The Lambrecht Wind direction sensor is designed using a protractor and a potentiometer to measure the wind direction. According to the direction that the wind blows, the angler moves to one of the north, south, east, and west directions and the potentiometer produces an electrical signal corresponding to the direction of the wind.

function Lambrecht Wind direction sensor

The sensor, which is used in conjunction with other weather sensors including wind speed and temperature sensors, is made to measure wind direction with a high degree of accuracy. This makes it possible to get a fuller picture of the weather at a certain spot.

Lambrecht Wind direction sensor Industry features

• High Accuracy: The sensor provides accurate measurements of wind direction, ensuring reliable data collection.
• Durability: It is suited for usage in outdoor areas because it is made to endure extreme weather conditions.
• Simple Installation: The sensor is simple to install and requires little upkeep.
• It is compatible with other weather monitoring systems and may be connected with them to offer thorough weather data.
• A wide range of sectors, including renewable energy, agriculture, and aviation, can employ the Lambrecht Wind Direction Sensor.

Lambrecht Wind direction sensor Industry specifications

• Measuring range:0…360°
• Accuracy:2°
• Resolution:2°
• Starting value:< 0.7 m/s
• Output: Modbus RTU · RS 485
• Range of application: temperatures -30…+70 °C heated; wind speed 0…60 m/s
• Supply voltage:24 (20…28) VDC; max. 800 mA
• Measuring elements: plastic • wind vane – dimensionally stable
• Measuring principle: Hall Sensor Array
• Dimensions: wind vane L 232 mm – H 327 mm
• Housing:aluminium • anodised • IP 55 • Ø 32 mm • bore Ø 30 mm for mounting at traverse
• Weight: approx. 0.35 kg
• Included in delivery:4-pole M12 plug connector
• Accessories (order separately):32.14567.060010 sensor cable, 15 m, 4 poles, M12 plug
  32.14567.060000 sensor cable, 12 m, 4 poles, M12 plug
