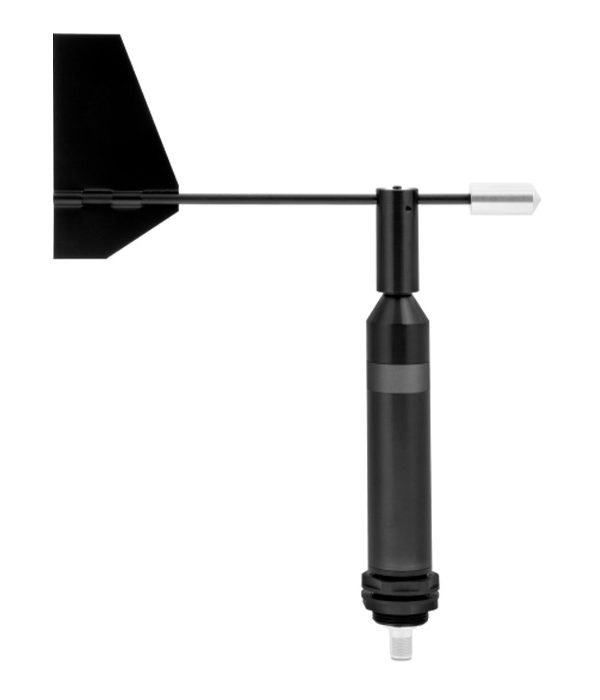

lambrecht Wind direction sensor Professional

lambrecht Wind direction sensor Professional

order code 00.14521.110040

“Wind direction sensor” is an electronic device used to measure wind direction. This sensor usually consists of a magnet and a sensor connected together. When wind hits the sensor, it uses the Kroll effect to rotate the magnet in a certain direction. The Hall sensor then measures the direction of the magnetism and the information obtained is sent to a microcontroller or a computer. According to the received information, the wind direction is displayed on the desired display or control system.

product overview

“Professional wind direction sensor” is a professional wind direction sensor used to measure direction. This sensor usually consists of a rotating axis that moves with the wind and is adjusted in direction based on the direction of movement of this axis.

This sensor is usually used in meteorological stations, airports, tall structures and other environments that require accurate wind direction measurement.

function lambrecht Wind direction sensor Professional

A professional wind direction sensor is usually used in conjunction with other meteorological sensors such as temperature, heat, pressure, rain gauge, etc. to provide accurate information about the weather conditions of an area.

lambrecht Wind direction sensor Professional features

• Large measuring range up to 75 m/s.
• Very low start-up value of < 0.3 m/s due to non-contact measuring principle.
• Extremely high salt water resistance due to high-quality coating.
• Optimal heating concept for use in all climate zones.

lambrecht Wind direction sensor Professional specifications

• Measuring range:0…360°
• Accuracy:± 1°
• Resolution:< 1°
• Starting value:< 0.3 m/s
• Output:4…20 mA = 0…360°
• Update rate:4 Hz
• Range of application:temperatures -40…+70 °C (heated); max. gusts of 100 m/s
• Supply voltage:with electr. controlled shaft heating, 18W; 24 VDC (20…28 VDC); max. 800 mA
• Measuring elements:blade wind vane, dimensionally stable; Aluminium specially coated
• Measuring principle:Magnetical Positioning Encoder System (MPES)
• Dimensions:wind vane L 174 mm – H 310 mm
• Housing:aluminium special surface, black, seawater resistant;
• IP 65 in upright positionØ 32 mm; bore Ø 30 mm for mounting at a mast or traverse
• Weight:0.4 kg
• Accessories (order separately):ID 32.14567.060000 Sensor cable with plug connection, length: 12 m
  ID 32.14627.010000 Traverse; sensor distance: 75 cm
  ID 32.14567.006000 Mast adapter; diameter: 50 mm
  ID 32.14565.019000 Lightning rod
