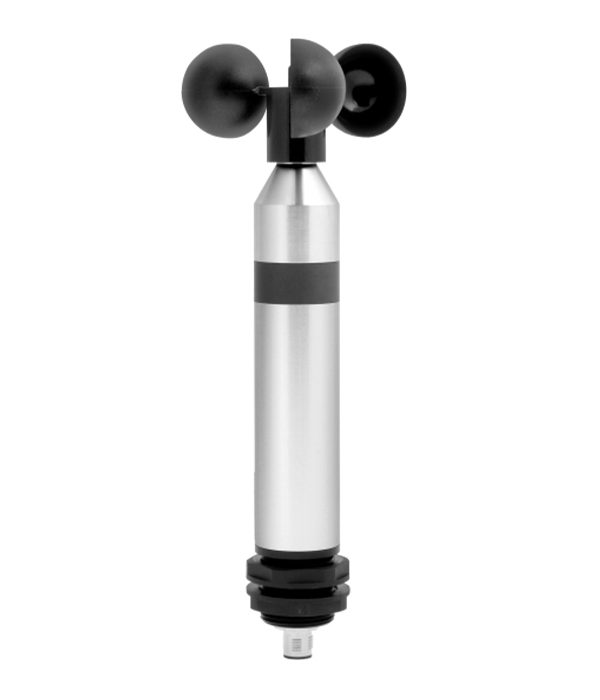

Lambrecht Wind speed sensor Industry

order code:00.14522.110040

Lambrecht Wind speed sensor Industry is a wind speed sensor produced by Lambrecht meteo GmbH. This sensor is used to measure wind speed and direction in industrial and meteorological environments.

product overview

Other features of this sensor include resistance to harsh weather conditions, accuracy in measuring wind speed, and high reliability. This sensor is used for various applications such as wind speed measurement in wind parks, wind turbines, airports and other meteorological applications.

function Lambrecht Wind speed sensor Industry

This sensor uses a turbine mechanism to measure wind speed. In this mechanism, the wind causes the turbine blades to rotate, and then the speed of rotation of the blades is used as an indicator of the wind speed. The Lambrecht Industry Wind speed sensor has high accuracy and long-term stability and can operate in different weather conditions.

working conditions

Lambrecht Wind speed sensor Industry has high accuracy and long-term stability and can operate in different weather conditions.

Lambrecht Wind speed sensor features

  • accuracy, heritage, and dependability in the future.
  • substantial operational measurement and temperature range.
  • the easiest mast installation.
  • with the use of the magnetic, contactless measurement.
  • principle, very excellent beginning values.
  • Ideal heating scheme.

Lambrecht Wind speed sensor Industry specifications

  • Measuring range:0.7…50 m/s
  • Accuracy:< ± 2 % FS
  • Resolution:< 0.02 m/s
  • Starting value:< 0.7 m/s
  • Output:4…20 mA = 0…50 m/s
    0…20 mA and 0-10 V on request
    max. load 600 Ω
  • Range of application:temperature -30…+70 °C heated; wind speed 0…60 m/s
  • Supply voltage:24 (20…28) VDC; max. 800 mA, electronically controlled heating; 18W
  • Measuring elements:plastic; 3 armed cup rotor; fail safe
  • Measuring principle:Hall Sensor Array
  • Dimensions:wind speed: cup rotor Ø 95 mm – H 230 mm
  • Housing:aluminium anodised; IP 55; Ø 32 mm; bore Ø 30 mm for mounting at traverse
  • Weight:approx. 0.25 kg
    Accessories (order separately):
    32.14567.060000 Sensor cabl
Air velocity range/resolution/accuracy

0.7…50 m per s/< 0.02 m per s/< 0.7 m/s

Housing

aluminium anodised

Temperature/range/resolution/accuracy

-30…+70 °C heated

Wind direction range/resolution/accuracy

0…60 m/s

Dimensions

wind speed: cup rotor Ø 95 mm – H 230 mm

Weight

0.25 kg

IP rating

IP 55

Power

24 (20…28) VDC; max. 800 mA
