    MarMonix MDCS Series Pipe Inspection Camera System – 40m / 60m

    Compare
    (No Reviews)

    • Pan-Tilt Precision: Motorized head with 360° Pan and 180° Tilt for complete pipe wall inspection.

    • 1080P Clarity: MarMonix MDCS Series Pipe Inspection Camera System delivers superior HD visuals.

    • Smart Station: Rugged case with a 10.1-inch monitor, sunshade, and keyboard for data entry.

    • Waterproof Build: IP68 rated camera head, submersible up to 20 meters.

    • All-Day Power: 6600mAh battery ensures 6–8 hours of uninterrupted workflow.

    • Full Recording: DVR captures Video, Audio, and Photos to SD card (max 256GB).

    • Versatile Fit: Designed for pipes DN50 to DN200 (2″–8″) with included guide skids.

    • Cable Options: Available in 40m or 60m lengths to suit your specific reach requirements.

    Terms of sending goods ›
    • In-stock items are delivered within 2 business days.
    • We are not Supporting COD Payments Terms Outside UAE
    • For out-of-stock items, delivery may take 2 to 4 business weeks.
    SKU: 130823 Categories: ,
    Brand:Marmonix

    Show Price on WhatsApp

    Order Via phone number
    In stockDelivers in 2-3 business days.
    Description

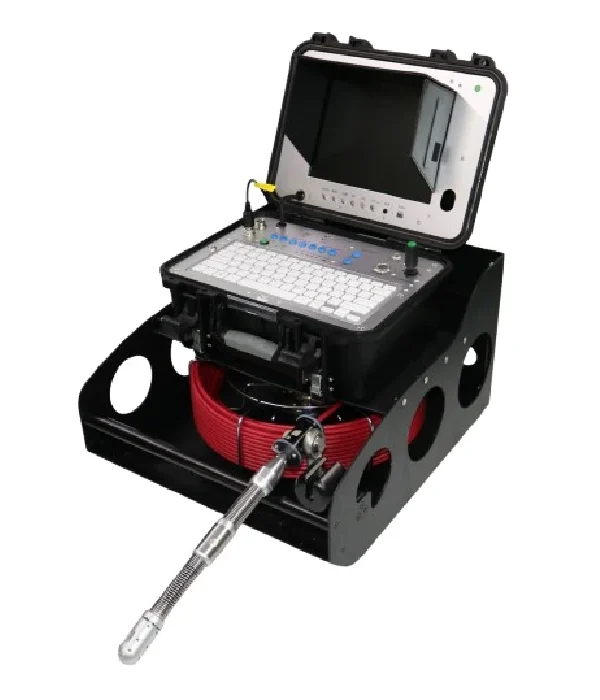

    the MarMonix MDCS Series Pipe Inspection Camera System delivers a fully integrated and highly reliable solution for the professional inspection of pipelines, drains, sewers, HVAC ducts, and industrial infrastructure. Built into a durable, waterproof ABS suitcase frame, this system combines advanced imaging technology with field-ready portability. It is the essential diagnostic tool for plumbers, municipal service teams, maintenance contractors, and inspection engineers.

    MarMonix MDCS Series Pipe Inspection Camera System – 40m / 60m Key Features

    Precision Pan-Tilt Imaging

    At the core of the MarMonix MDCS Series Pipe Inspection Camera System is a 28mm Pan-Tilt camera head. It features 1080P HD resolution and motorized movement, offering 360° pan rotation and 180° tilt articulation. This allows operators to inspect narrow and curved pipelines with exceptional clarity, ensuring no blind spots remain.

    Advanced Control Station

    The system includes a built-in 10.1-inch HD LCD monitor (1024×600) that provides sharp, real-time visuals.1 The integrated workstation offers convenient display functions such as image mirroring, flipping, and rotation. The DVR control box supports video recording (AVI/MP4), photo capture (JPG), and audio recording via a built-in microphone.2

    Rugged & Waterproof Design

    Built for harsh environments, the camera head features an IP68 waterproof rating, operating reliably up to 20 meters underwater. The lens is constructed from high-durability sapphire glass to prevent scratching, while adjustable high-brightness LEDs provide superior visibility in dark or submerged pipes.

    Long-Lasting Power

    Powered by a 6600mAh high-capacity Li-ion battery, the MarMonix MDCS Series Pipe Inspection Camera System provides 6 to 8 hours of continuous operation. This extended battery life makes it suitable for demanding, day-long on-site inspection tasks without the need for external power.

    MarMonix MDCS Series Pipe Inspection Camera System – 40m / 60m Applications

    The MarMonix MDCS Series Pipe Inspection Camera System is versatile and designed for a wide range of industries:

    • Plumbing & Drainage: Inspecting residential and commercial sewer lines for blockages.

    • Municipal Maintenance: Checking city water lines and storm drains.

    • HVAC Systems: Visualizing internal ventilation shafts and ducts.

    • Industrial Infrastructure: Monitoring chemical pipes and processing lines.

    Why Choose the MarMonix MDCS Series?

    With its combination of premium imaging, rugged construction, long-duration power, and comprehensive recording features, the MarMonix MDCS Series Pipe Inspection Camera System stands out as a complete, professional-grade solution for non-destructive pipeline and sewer inspections across residential, commercial, and industrial sectors.

    Technical data

    Technical data

    MarMonix MDCS-40M / MDCS-60M Specification

    Category Specification
    Model Numbers MDCS-40M, MDCS-60M
    Product Type All-in-one drain & sewer pipe inspection system with pan-tilt camera
    Monitor 10.1″ HD color LCD monitor (1024 × 600 pixels)
    Display Features Sun visor, image mirror/flip, video rotate function
    User Interface On-screen menu, physical control buttons, optional wireless keyboard
    Construction Heavy-duty waterproof ABS suitcase-style frame
    Operating Temperature -10°C to +50°C
    Storage Temperature -20°C to +60°C
    Certifications CE, RoHS, ISO9001
    Camera Head Diameter 28 mm (optional 23/25/26 mm)
    Camera Articulation Pan 360°, Tilt 180°
    Sensor / Resolution 1/3″ CMOS, 1080P Full HD (1920 × 1080)
    Lens Cover Sapphire glass cover
    Viewing Angle 120°–145°
    Focus Range Near: 3–10 cm, Far/DoF: 20–100 cm
    Lighting 12–15 adjustable high-brightness LEDs
    Waterproof Rating IP68 (up to 20 m depth)
    Suitable Pipe Diameter DN50–DN200
    Recording Format AVI / MP4 (video), JPG (photo)
    Video Encoding H.264 compression
    Audio Built-in microphone
    Storage SD card slot (up to 256 GB; card included)
    Data Output USB 2.0
    Battery 6600 mAh Li-ion
    Run Time 6–8 hours continuous operation
    Power Input AC100–240V charger, DC12.6V output
    Cable Length Options 40 m (MDCS-40M) / 60 m (MDCS-60M)
    Package Type Waterproof ABS carry case
    Package Dimensions 54.5 × 51 × 44 cm
    Approx. Weight 19.5 kg
