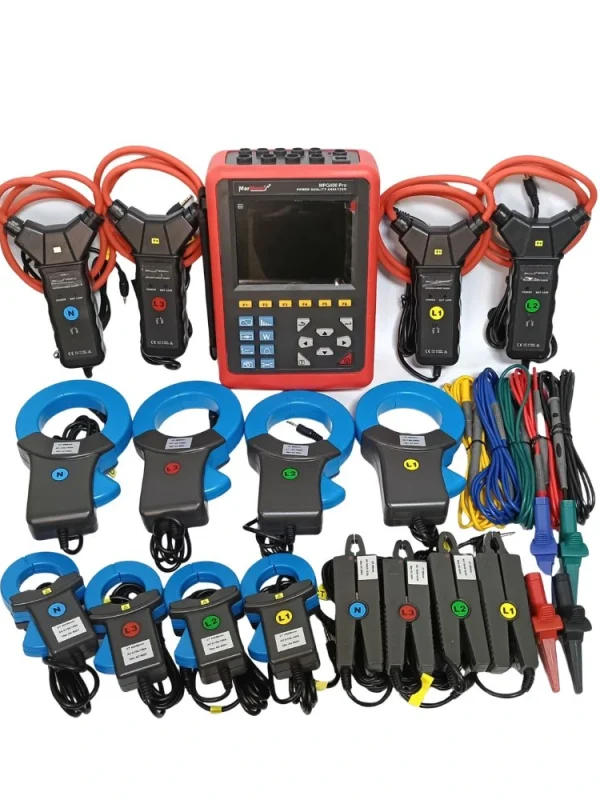

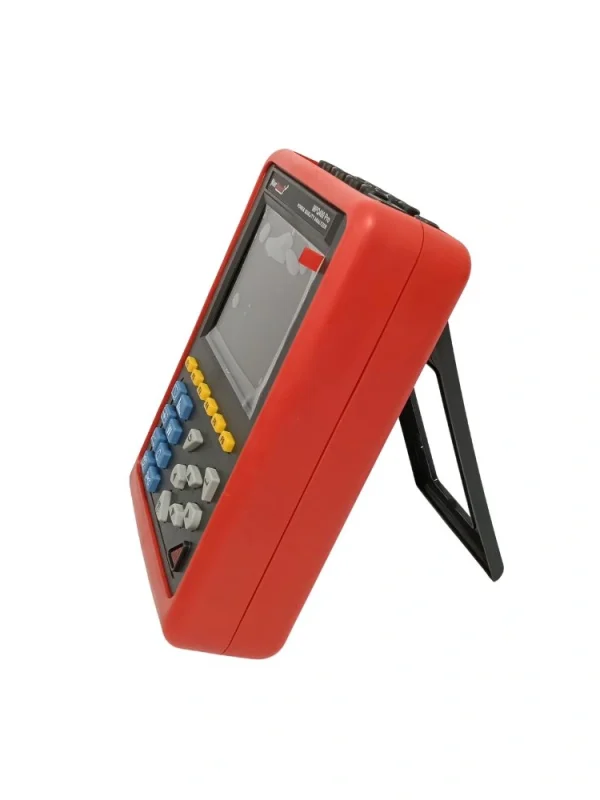

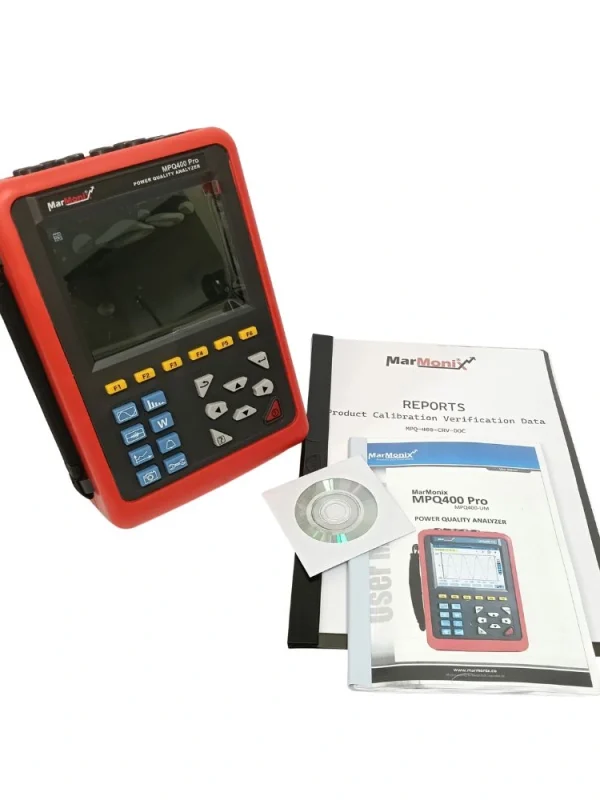

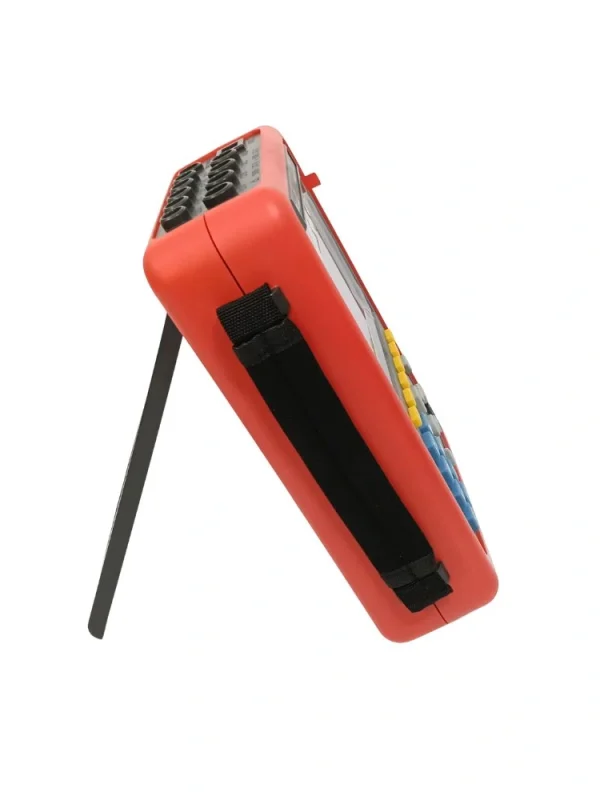

Marmonix MPQ400 Pro Power Quality Analyzer

Short Description:

With its advanced capabilities, the Marmonix MPQ400 Pro is an ideal choice for electrical engineers, industrial network technicians, and power quality analysts. This device enables precise monitoring of power networks and helps in identifying and resolving power quality issues effectively.

1000V True RMS phase-to-neutral voltage
2000V True RMS phase-to-phase voltage
1000A True RMS current

Product purchase

SKU: 103516

Brand:Marmonix

Call for Best Price 00971(04) 447 6031 00971(04) 344 9868

Compare

13 People watching this product now!

Terms of sending goods ›

In-stock items are delivered within 2 business days.
We are not Supporting COD Payments Terms Outside UAE

Description

Buy Marmonix MPQ400 Pro

The Marmonix MPQ400 Pro is a professional power quality analyzer designed for measuring and analyzing electrical parameters in AC systems. It offers comprehensive capabilities for electrical engineers and industrial technicians to assess and monitor power networks effectively.

Key Features

The Marmonix MPQ400 Pro provides detailed power quality assessment through the measurement of Total Harmonic Distortion (THD) and Distortion Factor (DF) for voltage and current. It can analyze harmonics up to the 50th order, providing information such as harmonic ratio, RMS value, and minimum and maximum values. Additionally, it calculates the K Factor (KF), which is crucial for assessing harmonic currents in transformers.

One of the standout features of the Marmonix MPQ400 Pro analyzer is its advanced data logging and monitoring capabilities. It includes a 2GB memory card, allowing users to record up to 100 groups of data and visualize them in histogram or curve formats. Additionally, it can detect and record transient events in power networks, storing up to 150 groups, capturing four complete cycles (one cycle before and three cycles after the event trigger). The alarm recording system supports up to 12,800 groups, displaying the triggered channel, maximum and minimum values after the trigger, and duration of the alarm.

Marmonix MPQ400 Pro Specifications

The Marmonix MPQ400 Pro can measure 40Hz to 70Hz frequency and up to 1000 V true RMS phase-to-neutral voltage.

Measurement	Range	Resolution	Accuracy
Frequency	40Hz-70Hz	0.01Hz	±(0.03)Hz
True RMS phase-to-neutral voltage	1.0V-1000V	0.1V	(0.5%+5dgt)
True RMS phase-to-phase voltage	1.0V-2000V	0.1V	±(0.5%+50gt)
DC voltage	1.0V-1000V	0.1V	(1.0%+5dgt)
True RMS current	10mA-1000A	1mA	±(0.5%+5dgt)
Peak of phase-to-neutral voltage	10V-1414V	0.1V	(1.0%+5dgt)
Peak of phase-to-phase voltage	1.0V-2828V	0.1V	(1.0%+5dgt)
Current peak	10mA-1414A	1mA	(1.0%+5dgt)
Power factor	-1.000 to 1.000	0.001	N/A
Active power	0.000W-9999.9KW	0.001W	N/A
Reactive power (Inductive/Capacitive)	0.000VAR-9999.9KVAR	0.001VAR	N/A

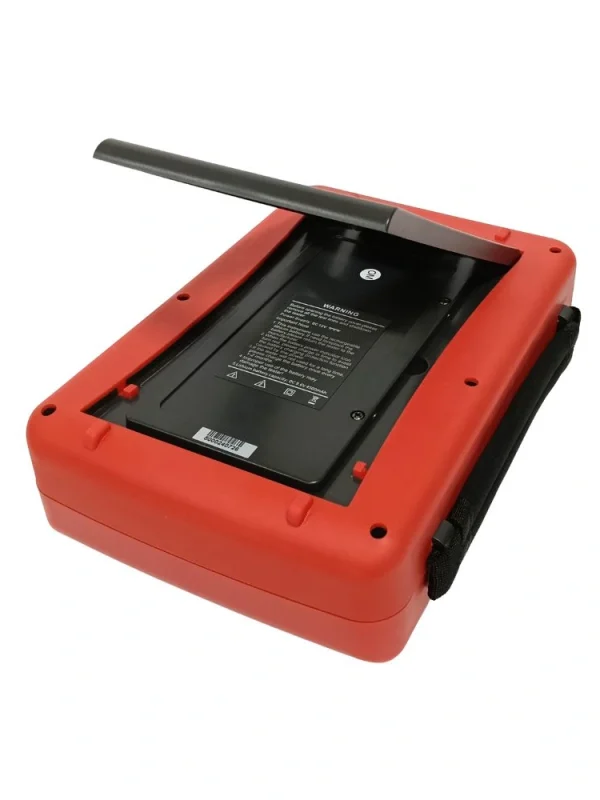

Battery	Rechargeable Lithium-ion battery pack 9.6V	N/A	N/A
Capacity	4500 mAh	N/A	N/A
Charging current	approx. 0.6A	N/A	N/A
Charging time	approx. 8 hours	N/A	N/A

Buy the Marmonix MPQ400 Pro Power Quality Analyzer for its advanced capabilities in power quality analysis. This device is an ideal choice for electrical engineers, industrial network technicians, and power quality analysts. It enables precise monitoring of power networks, helping users identify and resolve power quality issues effectively.

Additional information

True RMS phase-to-phase voltage	1.0V-1000V , 0.1V , ±(0.5%+50gt)
True RMS phase-to-neutral voltage	1.0V-2000V , 0.1V , ±(0.5%+50gt)
DC voltage	1.0V-1000V , 0.1V , (1.0%+5dgt)
True RMS current	10mA-1000A , 1mA , ±(0.5%+5dgt)
Peak of phase-to-neutral voltage	10V-1414V , 0.1V , (1.0%+5dgt)
Peak of phase-to-phase voltage	1.0V-2828V , 0.1V , (1.0%+5dgt)
Current peak	10mA-1414A , 1mA , (1.0%+5dgt)
Reactive power (Inductive/Capacitive)	0.000W-9999.9KW , 0.001W
Active power	0.000VAR-9999.9KVAR , 0.001VAR
Battery	Rechargeable Lithium-ion battery pack 9.6V
Capacity	4500 mAh
Charging current	approx. 0.6A
Charging time	approx. 8 hours

Datasheet

Specifications

Measurement	Range	Resolution	Accuracy
Frequency	40Hz-70Hz	0.01Hz	±(0.03)Hz
True RMS phase-to-neutral voltage	1.0V-1000V	0.1V	(0.5%+5dgt)
True RMS phase-to-phase voltage	1.0V-2000V	0.1V	±(0.5%+50gt)
DC voltage	1.0V-1000V	0.1V	(1.0%+5dgt)
True RMS current	10mA-1000A	1mA	±(0.5%+5dgt)
Peak of phase-to-neutral voltage	10V-1414V	0.1V	(1.0%+5dgt)
Peak of phase-to-phase voltage	1.0V-2828V	0.1V	(1.0%+5dgt)
Current peak	10mA-1414A	1mA	(1.0%+5dgt)
Power factor	-1.000 to 1.000	0.001	N/A
Active power	0.000W-9999.9KW	0.001W	N/A
Reactive power (Inductive/Capacitive)	0.000VAR-9999.9KVAR	0.001VAR	N/A
Battery	Rechargeable Lithium-ion battery pack 9.6V	N/A	N/A
Capacity	4500 mAh	N/A	N/A
Charging current	approx. 0.6A	N/A	N/A
Charging time	approx. 8 hours	N/A	N/A
