Megger KC-C Cable Reels for DLRO2 (Wind Turbine Test Leads)

Overview

The Megger KC-C cable reels are updated versions of the popular KC series wind-turbine test leads, taking advantage of the long-test-lead mode on the DLRO2. Because the DLRO2 can test with up to 3.2 Ω total lead resistance at 1 A, the KC-C leads can be much smaller and lighter — a distinct safety enhancement when working at height. The KC100C reel weighs just 7.6 kg, against nearly 15 kg for the original KC100 reel.

Key features of the Megger KC-C cable reels

• Lighter, updated KC leads optimised for the DLRO2 long-lead mode (up to 3.2 Ω at 1 A)
• KC100C 100 m reel weighs only 7.6 kg (vs ~15 kg for KC100) — safer at height
• 100 m reel lead plus a 3 m short test lead
• Spring-loaded, hardened, sharp, gold-plated Kelvin probe tips (5 mm tip spacing)
• Kelvin clamp jaw capacity 35 mm
• Right-angled shrouded 4 mm instrument terminations (black and red)

KC-C wind turbine testing applications

The KC-C reels are used with the Megger DLRO2 to measure the continuity and resistance of lightning-protection conductors in wind turbines. Their reduced weight makes them safer and easier to handle when working at height inside turbine towers and blades, during both commissioning and maintenance.

What’s in the box

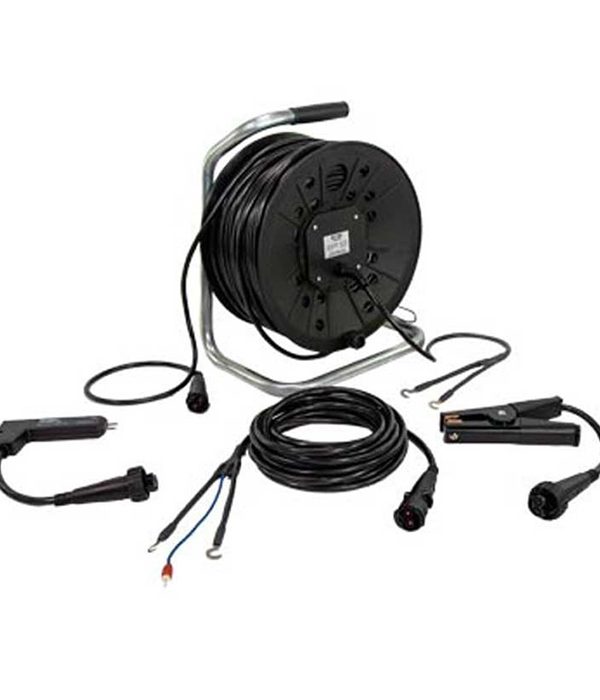

• Megger KC-C cable reel (e.g. KC100C, 100 m)
• 3 m short test lead
• Kelvin probes and clamps
• Instrument terminations

KC-C vs KC series

The KC-C reels are lighter, DLRO2-optimised versions of the original Megger KC series test leads, delivering the same wind-turbine lightning-protection testing with reduced weight for safer work at height.

Why buy the Megger KC-C reels from MME in the UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) supplies genuine Megger test leads and accessories across Dubai, Abu Dhabi and the wider UAE, with expert technical support and fast local delivery. Contact us for pricing and availability.
