Megger MFT1815 Multifunction Installation Tester

Megger MFT1815 Multifunction Installation Tester — Reliable Everyday Testing

The Megger MFT1815 is the entry model in the MFT1800 range, giving electricians a rugged, dependable instrument for insulation, continuity, loop, RCD and earth testing. Compliant with IEC 60364 and BS 7671, it offers non-tripping, high-current and phase-to-phase loop testing with true-RMS voltage measurement in a CAT IV 300 V, IP54 housing — ideal for everyday installation certification.

Key Features

• Insulation testing — 250 V, 500 V and 1000 V test voltages measuring 10 kΩ to 999 MΩ.
• Continuity — 200 mA test current, 0.01 Ω to 99.9 kΩ.
• Full loop testing — 2/3-wire non-tripping L-PE, 2-wire high-current and phase-to-phase L-L loop impedance, 0.01 Ω to 999 Ω.
• Prospective fault current — PFC/PSCC calculation up to 20 kA.
• RCD testing — Types AC, A and S with ½, 1, 2 and 5 × I test currents.
• Earth resistance — 2- and 3-pole earth-electrode testing, 0.01 Ω to 1.999 kΩ.
• True-RMS voltage — 10–600 V true-RMS measurement, 15–400 Hz.
• CAT IV 300 V & IP54 — rugged, weatherproof build; ~1 kg on AA cells.

Applications

The MFT1815 is ideal for electricians and contractors performing installation testing and certification — insulation, continuity, loop, RCD and earth testing — on domestic, commercial and industrial installations to IEC 60364 and BS 7671.

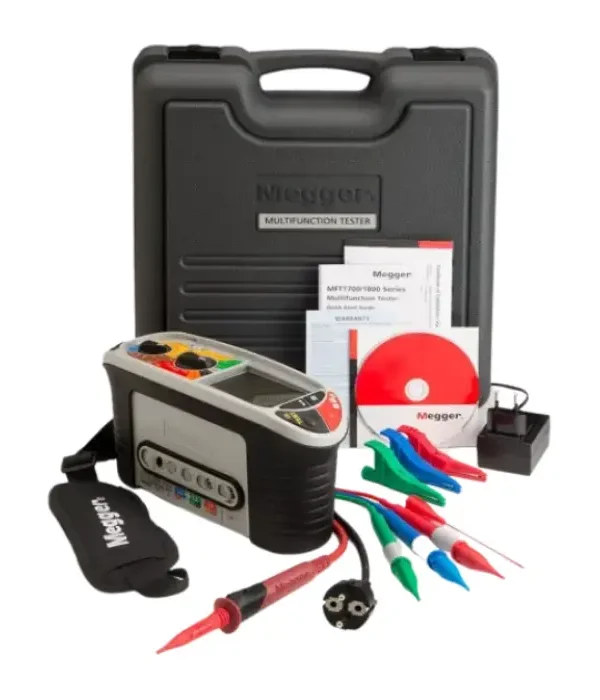

What’s in the Box

• Megger MFT1815 multifunction installation tester
• Test lead set with probes and clips
• AA batteries (fitted)
• Carry case and user guide

Why Buy from MME in UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) is your trusted supplier of genuine Megger test and measurement equipment in the UAE. We offer competitive pricing, fast local delivery across Dubai, Abu Dhabi and the wider UAE, and knowledgeable after-sales support. Contact us on WhatsApp for the latest price and availability.

Megger Mft1815 Datasheet PdfPDF Download the Megger MFT1800 series datasheet (PDF)PDF.
