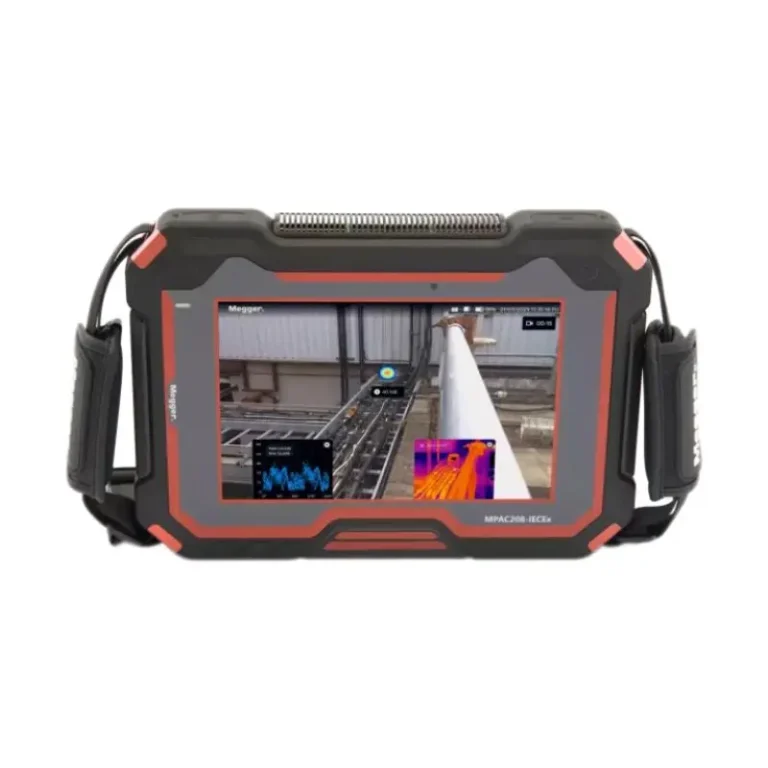

Megger MPAC208 Professional Acoustic Imaging Camera
Brand:
Megger
SKU:
132813
The Megger MPAC208 is a professional 208-microphone acoustic imaging camera that visualises compressed-air and gas leaks and electrical partial discharge from up to 200 m, with an 8-inch high-res display and PRPD analysis.
- Safe Buy
- Fast Delivery
- Original Guarantee
- Online Payment
Description
Megger MPAC208 Professional Acoustic Imaging Camera — Advanced Leak & PD Detection
The Megger MPAC208 is a professional handheld acoustic imaging camera built around a 208-channel MEMS microphone array. Detecting the ultrasound from compressed-air and gas leaks and from electrical partial discharge, it overlays a real-time sound image on a high-resolution 13 MP camera view — letting inspection teams pinpoint faults from up to 200 m with class-leading sensitivity.
Key Features
- 208-microphone array — MEMS microphone channels detecting ultrasound from 2 kHz to 100 kHz.
- Long detection range — locates leaks and partial discharge from 0.5 m up to 200 m.
- Highly sensitive leak detection — down to 0.0019 l/min at 2.5 m (5 bar), with leak-cost quantification.
- Partial-discharge analysis — Phase-Resolved Partial Discharge (PRPD) for discharge-type discrimination.
- 8-inch high-res display & 13 MP camera — 1920 × 1200, 700-nit touchscreen with a 13-megapixel optical camera and 6× zoom.
- 10-hour battery — two 5-hour Li-ion packs; 64 GB internal storage plus microSD.
- Rugged & portable — IP54, −20 °C to +50 °C, 270 × 190 × 51 mm, 1.4 kg.
- Kit & hazardous-area options — also available as a Pro Kit (with thermal camera and verifier) and an IECEx version for explosive atmospheres.
Applications
The MPAC208 is ideal for compressed-air and gas leak surveys, energy-loss audits and electrical partial-discharge inspection on switchgear, insulators and overhead lines — helping industrial and utility teams find faults and reduce energy waste over long distances.
What’s in the Box
- Megger MPAC208 acoustic imaging camera
- Two Li-ion battery packs, charger and USB-C cable
- Straps and headphones
- Storage media and protective case
Why Buy from MME in UAE
MOHAMMAD MAHDI Electronics Trading LLC (MME) is your trusted supplier of genuine Megger test and measurement equipment in the UAE. We offer competitive pricing, fast local delivery across Dubai, Abu Dhabi and the wider UAE, and knowledgeable after-sales support. Contact us on WhatsApp for the latest price and availability.
View the Megger MPAC208 datasheet.
Manual
Manual
Specifications
Specifications
| Camera | |
|---|---|
| Resolution | 13 MP |
| Camera Focal Length | 4.3 mm (0.17”) |
| Nominal Frame Rate | 25 fps |
| Field of View (FOV) | Horizontal: 66° x Vertical: 52° |
| LED Light | 4 Ultra-bright LEDs |
| Display | |
| Resolution | 1920 x 1200 |
| Size | 8 inches |
| Brightness | 700 nits |
| Touchscreen | Capacitive touch screen |
| Zoom | 6x digital zoom |
| Standard Palettes | Grayscale, Ironbow, Rainbow |
| Communication and Storage | |
| Internal Storage | 64 GB |
| External Storage | 64 GB external microSD card |
| Image Format | JPG |
| Audio Format | WAV |
| Video Format | MP4 |
| Video Length | Up to 10 min |
| Digital Export | microSD (TF) card, Wi‑Fi, USB‑C flash drive |
| Data Transfer | Wi‑Fi, USB‑C flash drive, Bluetooth®, USB‑C cable, microSD (TF) card |
| Battery | |
| Battery Type | Li‑Ion smart battery with charge indicator |
| Battery Capacity | 6600 mAH, 7.2 V rechargeable Li‑ion |
| Battery Life | 5 hours under full load state |
| Charge Time | USB Type‑C port – 2.15 Hrs Charging cradle – 1.15 Hrs |
| Hardware Ports | |
| USB‑C 1 | USB 3.0 for charging, HDMI, data export |
| USB‑C 2 | USB 2.0, USB sensor, Thermal Module |
| 3.5 mm Audio Jack | Headset output |
| TF/microSD Card Slot | 64 GB card supplied |
| Analog Input | 4 Channel external analog sensor |
| Environmental | |
| Operating Temperature | -20 ºC to +50 ºC |
| Relative Humidity | 10% to 95% (no condensation) |
| Storage Temperature | -20 ºC to +70 ºC |
| Charging Temperature | 10 ºC to +45 ºC |
| Restriction of Hazardous Substances (RoHS) | Compliant: Yes |
| General Specification | |
| Size | 270 x 190 x 51 mm (10.6” x 7.5” x 2”) |
| Weight | 1.4 kg (3 lbs) |
| Bluetooth | BT 5.2 |
| Environmental Rating | IP54 |
| Warranty | 2 years |
| Supported Languages | English, Dutch, French, Simplified Chinese, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Thai, Arabic, Macedonian, Romanian, Bulgarian |
| Safety | |
| General Safety | IEC 61010‑1 |
| Electromagnetic Compatibility (EMC) | International IEC 61326‑1: Portable Electromagnetic Environment IEC 61326‑2‑2 CISPR 11: Group 1, Class A |
| Vibration | 2g, IEC 60068‑2‑6 |
| Shock | 25g, IEC 60068‑2‑27 |
| Drop Test | 1.2 m |
| Software | |
| Report Types | Gas/Electricity, ISO 50001-compliant |
| Analysis | Waveform, spectrum, spectrogram, leakage assessment, PRPD type, PRPD spectrum, thermal image analysis with optional thermal module MPAC‑TM |
