Megger TDR1000/3 Handheld TDR

Professional Cable Fault Location with Megger TDR1000/3

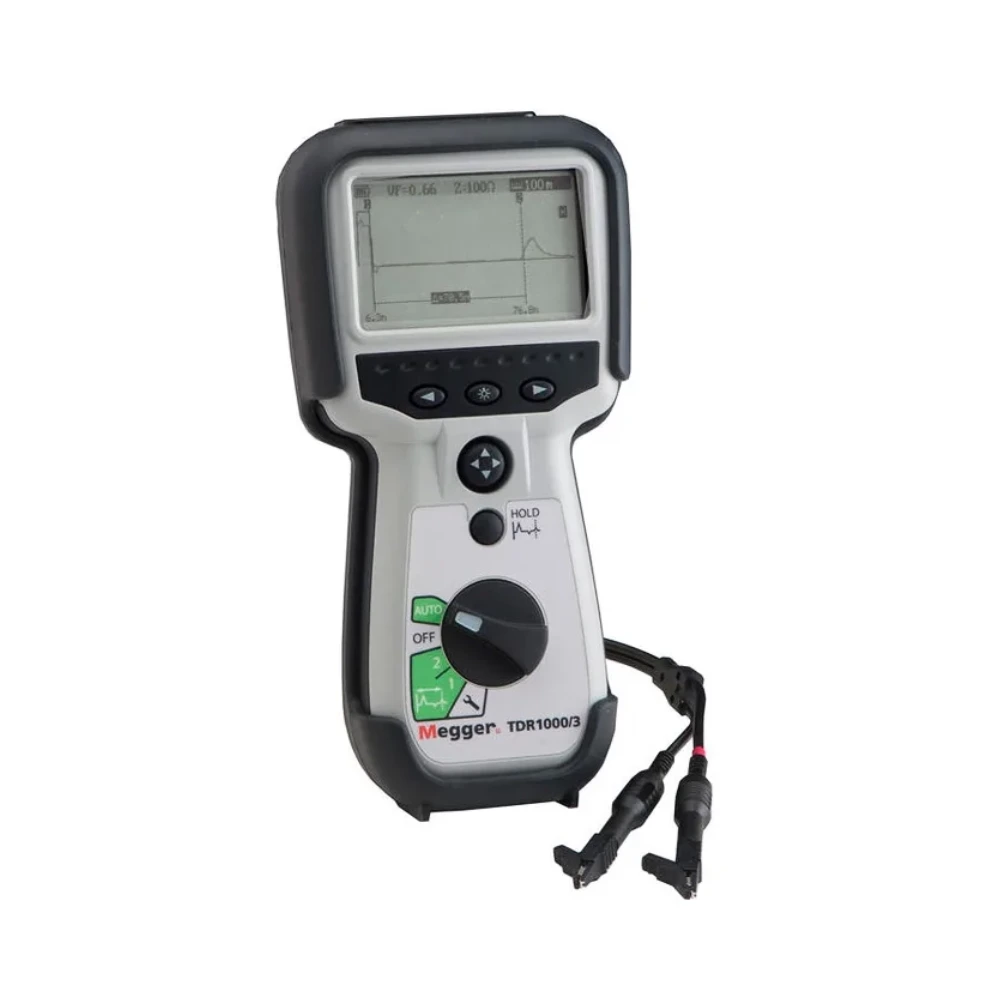

The Megger TDR1000/3 is an advanced, handheld Time Domain Reflectometer (TDR) designed for rapid and accurate fault location on metallic cable pairs. Engineered for versatility, this compact instrument addresses the needs of technicians working in telecommunications, power, and industrial wiring sectors. With its optimized pulse technology and rugged field-ready construction, it ensures precise diagnostics for short circuits, open circuits, and insulation breaches.

Key Engineering Advantages

• Ultra-Fast 2 ns Pulse: Specifically calibrated to identify near-end faults that conventional TDRs often miss, ensuring high-resolution diagnostics from the very start of the cable run.
• Smart Auto-Setup: Minimizes configuration time. The instrument automatically selects the optimal pulse width, gain, and impedance parameters, allowing technicians to focus on fault location rather than device calibration.
• Versatile Application: Fully compatible with all metallic cable pairs, including twisted pair, coaxial, and power cables, making it a universal tool for diverse infrastructure maintenance.
• Live Trace Overlay: Enables real-time comparison between a live trace and a saved reference trace, simplifying the identification of subtle deviations or cable deterioration over time.

Safety and Durability for Field Operations

Safety is paramount in electrical testing environments. The TDR1000/3 is engineered to withstand demanding conditions without compromising on operator protection. It is safety-rated for connection to 150 V CAT IV power circuits and Telecom TNV-3 circuits. Critically, it operates reliably without the need for an external power blocking filter, streamlining the testing process and reducing equipment clutter in the field.

Built for longevity, the unit carries an IP54 ingress protection rating, making it resilient against dust and moisture. Its backlit graphics monochrome LCD provides clear visibility in varying light conditions, ensuring that your data collection remains uninterrupted regardless of the environment.

Why Choose the Megger TDR1000/3?

For engineering teams and field maintenance departments, downtime is costly. By integrating the TDR1000/3 into your toolkit, you significantly reduce the time required to pinpoint cable faults. As an authorized distributor, we provide not only the hardware but also the technical backing and assurance that you are utilizing genuine Megger diagnostic technology. Whether you are dealing with complex wiring topologies or routine maintenance, the Megger TDR1000/3 delivers consistent, repeatable, and accurate measurements every time.
