Milwaukee MC745 PRO Conductivity (EC) Controller and Pump Kits
Short Description:
The Milwaukee MC745 PRO Conductivity Controller and Pump Kits advance water quality management. Featuring automated monitoring, dosing pumps, and a user-friendly interface, this system suits hydroponics, aquaculture, laboratory research, and environmental monitoring. Users can maintain optimal conditions for specific applications, promoting healthier plants and aquatic ecosystems.
- Range: 0.0 – 10.0 mS/cm
- Resolution: 0.1 mS/cm
- Accuracy: +/- 2% Full Scale
- Calibration: Manual 1 point
Buy Milwaukee MC745 PRO
The Milwaukee MC745 PRO Conductivity (EC) Controller and Pump Kits are innovative solutions designed for precise monitoring and control of electrical conductivity in various aqueous environments. This system is particularly beneficial for hydroponics, aquaculture, and other applications where maintaining optimal nutrient levels is crucial for plant and aquatic life health.
Key Features
The Milwaukee MC745 PRO offers several standout features that enhance its functionality:

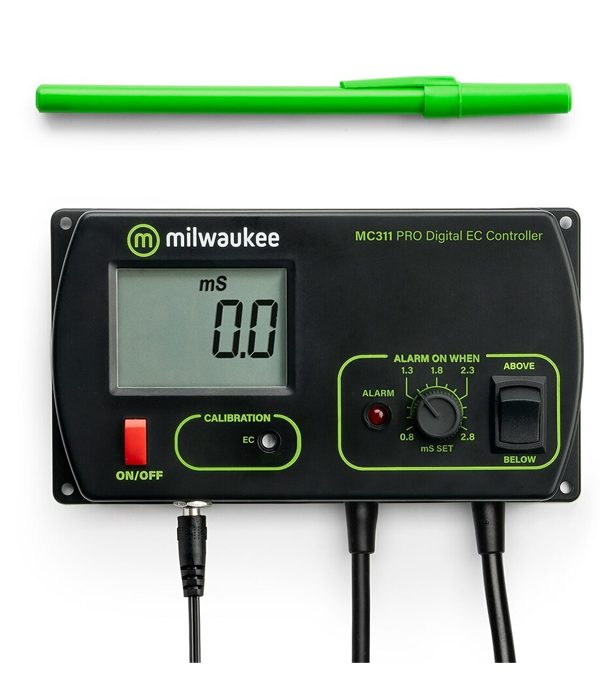

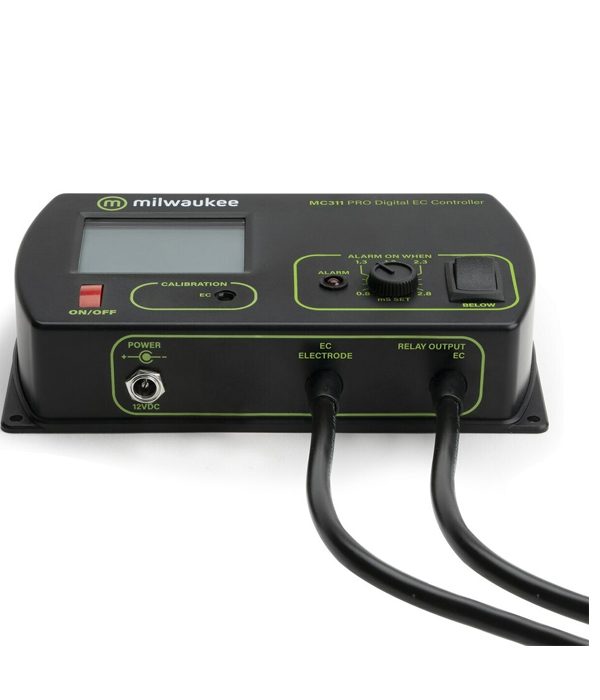

- Automated Monitoring: The system includes the MC311 EC controller, which continuously monitors conductivity levels. This automation allows users to maintain consistent water quality without constant manual checks.

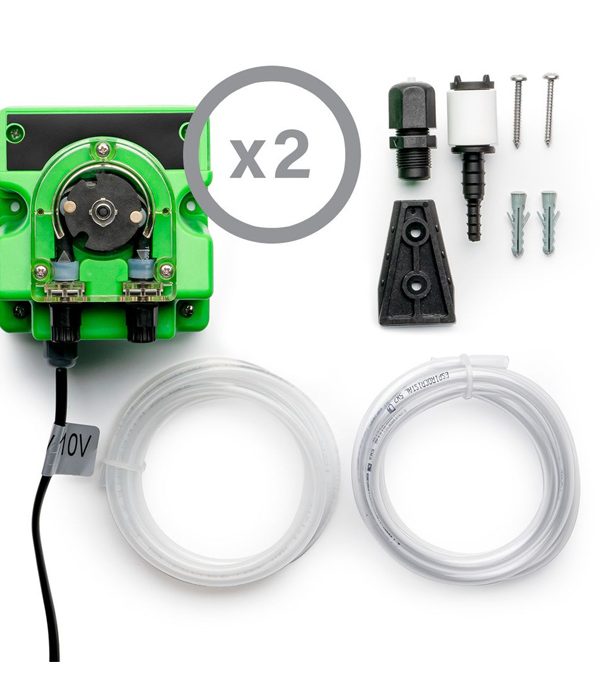

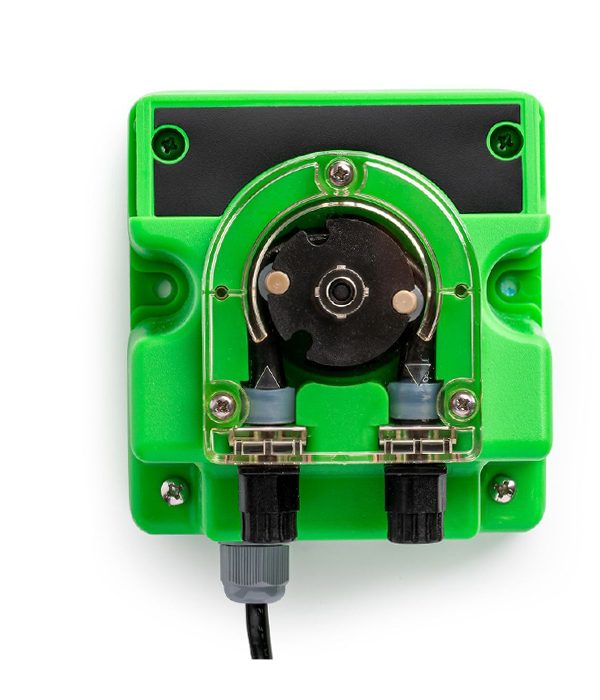

- Dosing Pumps: The kit has two MP810 dosing pumps that automatically adjust nutrient levels based on real-time conductivity readings. This feature ensures that plants receive the nutrients they need for optimal growth.
- User-Friendly Interface: With a large digital LCD display and visual LED alarms, users can easily read current results and receive alerts when conductivity levels fall outside the desired range. This intuitive design simplifies operation and enhances user experience.
- Customizable Set Points: Users can set specific conductivity parameters tailored to their unique needs. The system will then automatically adjust the nutrient solution to meet these targets, providing peace of mind and efficiency.
Applications
The versatility of the Milwaukee MC745 PRO makes it suitable for a variety of applications:
- Hydroponics: In hydroponic systems, maintaining the right nutrient concentration is vital for plant health. The MC745 PRO helps growers automate this process, ensuring plants receive optimal nutrients consistently.
- Aquaculture: For fish farming operations, monitoring water quality is critical. This controller allows aquaculturists to maintain ideal conditions, promoting healthy fish growth and reducing stress on aquatic life.
- Laboratories: Researchers require precise control over water quality for experiments. The MC745 PRO provides reliable measurements necessary for scientific studies across various disciplines.
- Environmental Monitoring: This device can also be used in environmental applications to assess water quality in natural bodies of water, aiding conservation efforts and ecological studies.
Milwaukee MC745 PRO Specifications
The Milwaukee MC745 PRO Conductivity (EC) Controller and Pump Kit can measure conductivity up to 0.0 – 10.0 mS/cm and flow up ot 0.6 L/h.
MC311 SPECIFICATIONS | |
Range | 0.0 – 10.0 mS/cm |
Resolution | 0.1 mS/cm |
Accuracy | ±2% F.S. |
Calibration | Manual, 1-point |
Setpoint | 0.8 to 2.8 mS/cm |
Alarm | Active when reading is higher or lower than set point |
Temperature Compensation | Automatic, from 0 to 50°C |
EC electrode | MA812/2 (included) |
Environment | 0 to 50°C / 32 to 122°F; max RH 95% |
Power Supply | 12 VDC adapter (included) |
Power Drivers | 115 VAC, 2A, 60Hz or 230 VAC, 1A, 50Hz |
Mounting kit (Included) | |
Dimensions | 5.9 x 3.2 x 1.35 inches |
Weight | 6.3 ounces (meter only) |
MP810 SPECIFICATIONS | |
Max. Flow | 0.6 L/h |
Max. Pressure | 1.5 bar |
Squeeze tubing | Santoprene |
Ext. Tube connection | 6 mm |
Power supply | 240 VAC, 50-60 Hz or 110 VAC, 60 Hz |
Power consumption | 0.42 W |
Dimensions | 100 x 106 x 108 mm |
Weight | 17.6 oz. |
Buy the Milwaukee MC745 PRO Conductivity (EC) Controller and Pump Kit for a reliable and efficient solution to automate your EC monitoring and adjustment. Its accuracy, user-friendly design, and ease of installation make it a valuable tool for maintaining optimal conditions in various aqueous systems.
EC Range, Resolution, Accuracy |
0.0 – 10.0 mS/cm ,0.1 mS/cm ,±2% Full Scale |
---|---|
Temperature Compensation |
Automatic, from 0 to 50°C ,32 to 122°F |
Calibration |
Manual, 1-point |
Set point |
0.8 to 2.8 mS/cm |
Alarm |
Active when reading is higher or lower than set point |
EC electrode |
MA812/2 (included) |
Environment |
0 to 50°C / 32 to 122°F; max RH 95% |
Power Supply |
MC311: MP810: |
Weight |
MC311: 6.3 ounces (180 g) (meter only) |
Dimensions |
MC311: 5.9 x 3.2 x 1.35 inches (148.5 x 82.5 x 32 mm) |
Flow |
Max 0.6 L/h |
Max pressure |
1.5 bar |
Squeeze tubing |
Santoprene |
Ext. Tube connection |
6 mm |
Specifications
MC311 SPECIFICATIONS | |
Range | 0.0 – 10.0 mS/cm |
Resolution | 0.1 mS/cm |
Accuracy | ±2% F.S. |
Calibration | Manual, 1-point |
Set point | 0.8 to 2.8 mS/cm |
Alarm | Active when reading is higher or lower than set point |
Temperature Compensation | Automatic, from 0 to 50°C |
EC electrode | MA812/2 (included) |
Environment | 0 to 50°C / 32 to 122°F; max RH 95% |
Power Supply | 12 VDC adapter (included) |
Power Drivers | 115 VAC, 2A, 60Hz or 230 VAC, 1A, 50Hz |
Mounting kit (Included) | |
Dimensions | 5.9 x 3.2 x 1.35 inches |
Weight | 6.3 ounces (meter only) |
MP810 SPECIFICATIONS | |
Max. Flow | 0.6 L/h |
Max. Pressure | 1.5 bar |
Squeeze tubing | Santoprene |
Ext. Tube connection | 6 mm |
Power supply | 240 VAC, 50-60 Hz or 110 VAC, 60 Hz |
Power consumption | 0.42 W |
Dimensions | 100 x 106 x 108 mm |
Weight | 17.6 oz. |
