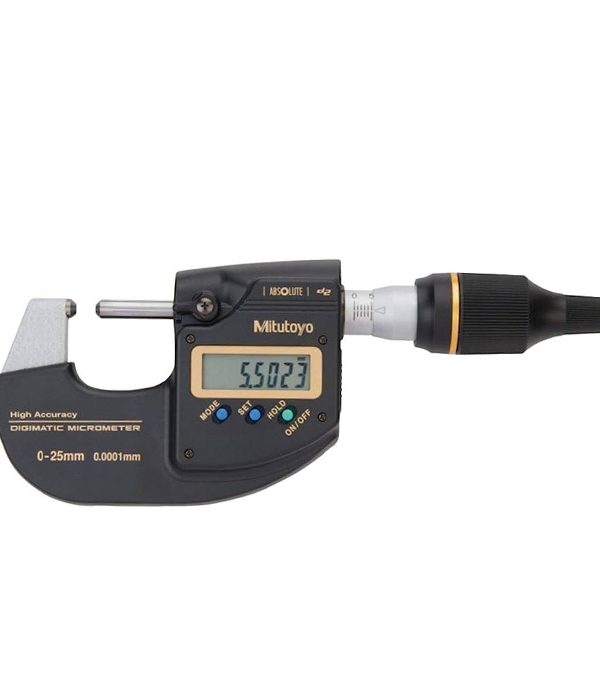

Mitutoyo 293-100-10 MDH Digimatic micrometer

 Mitutoyo 293-100-10 MDH Digimatic micrometer Introduction

The Mitutoyo 293-100-10 MDH ABSOLUTE digital micrometer offers fast and accurate measurements with its high precision and innovative features. Its rigid frame, constant-force ratchet mechanism, and thread-cutting technology ensure stability and reliability.

With a resolution of 0.000005″ / 0.1μm, it’s perfect for precise measurements.

This Mitutoyo MDH micrometer features a removable heat shield to minimize thermal expansion errors, an ABS rotary sensor for immediate measurement, and carbide tips for long-lasting accuracy.

The Mitutoyo 293-100-10 additional functions include data output, hold, and resolution switching. It is powered by a lithium battery with a lifespan of approximately 2 years.

Mitutoyo 293-100-10 MDH Digimatic micrometer specifications:

• Technology: Digimatic
• SPC Output: Yes
• Ratchet/Thimble: Ratchet Thimble
• Mass: 400g
• Measuring Force: 7-9N
• Display: LCD
• Battery: Lithium battery CR2032 (1 pc.)
• Battery Life: Approx. 2 years under normal use
• Optional Accessories: 05CZA662, 05CZA663
• Units: Metric
• Range: 0-25mm
• Resolution: 0.0001, 0.0005mm
• Accuracy: ±0.5µm
• Flatness: 0.3µm
• Parallelism: 0.6µm or less

Consult the official 293-100-10 Mitutoyo datasheet menu to obtain comprehensive details.
