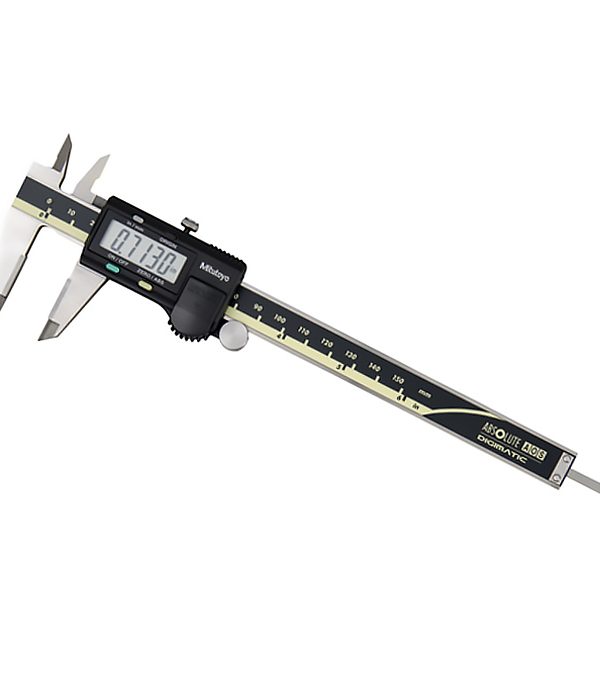

mitutoyo 500-159-30 digimatic caliper

mitutoyo 500-159-30 digimatic caliper:

product overview

With limitless precision and speed, the Mitutoyo 500-159-30 digital caliper delivers reproducible measurements of exterior, internal, depth, and pitch dimensions. With a configurable LCD display, a big character height of 9.0mm, and a resolution of 0.01mm for easier reading, the Mitutoyo 500-159-30 can measure a dimension range of 0-150mm/0-6″ with an accuracy of 0.02mm/0.0010″.

function

1 First, make sure the caliper jaws are clean.
The existence of pleats, dust, etc. between the jaws of the caliper causes measurement errors.
2 Then, after closing the jaws, use the key installed on the caliper to zero the display number.
3 Now open the jaws of the caliper with your thumb and after placing the object between the two jaws of the caliper, close the jaws so that the jaws touch the object.
4 Then you can read the size on the screen.

working conditions

This device works well in any conditions.
Error-free operation under conditions:
dust,
Water,
Oil.
It is better to put it in the protective box that comes with it after use.

mitutoyo 500-159-30 digimatic caliper features:

• After turning on, there is no need to reset the origin.
• Lightweight and simple to transport.
• screen with a high resolution.
• Outstanding readability.
• When not in use, automatic shutdown occurs.
• extended battery life.
• fast.
• Available in metric/inch models.

mitutoyo 500-159-30 digimatic caliper specifications:

• Range:0-150mm / 0-6″
• Depth bar:flat
• Thumb roller:Yes
• Data output:No
• Max. Permissible Error E MPE:±0,001″
• Max. Permissible Error S MPE:±0,002″
• Digital step:0,0005″/0,01 mm
• Max. response speed:Unlimited
• ORIGIN (ABS-Zero):Yes
• ON/OFF:Yes
• ABS / INC (INC ZERO):Yes
• Low voltage alarm:Yes
• Battery life:Approx. 5 years under normal use
• Mass:168 g
