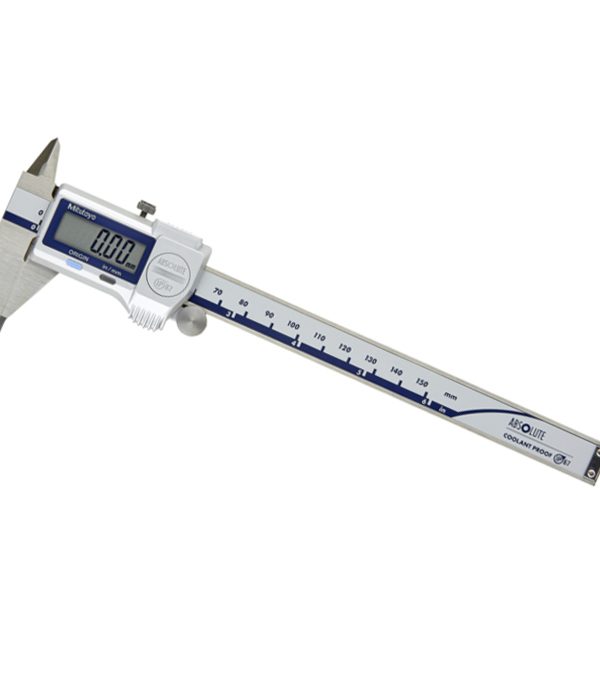

Mitutoyo 500-723-20 Coolant Proof Caliper

Mitutoyo 500-723-20 Coolant Proof Caliper:

product overview

The carbide-tipped jaws of the Mitutoyo 500-723-20 Coolant Proof Caliper enable accurate measurements in a variety of settings.
Another benefit of this product is its outstanding resistance to water and dust (protection level IP67), which allows it to be utilized in machining scenarios where cooling liquid can be sprayed.

this product Available in metric type only

Function

1 Before taking a measurement, take careful to “zero” or reset the LCD reading.

2 Once “0” appears on the display, begin rotating the thumb until the object is firmly grasped by either the inner or outer jaws.

3 Use the outside (lower) and inner (upper) jaws to read the object’s outer and inner diameters, respectively.

working conditions

• moist surroundings.
• Dusty surroundings.
• uncovered by coolant.
• Machining.

Mitutoyo 500-723-20 Coolant Proof Caliper features;

• Excellent resistance against water.
• resistance dust (IP67 protection level).
• enabling use in machining situations that include splashing coolant fluid.
• Extraordinarily long battery life.
• It has a plastic box that is not affected by moisture and dust.
• Resistant jaws.
• Speed ​​in measurement readability.
• Accurate and sensitive.
• Ability to measure up to 150mm.

Mitutoyo 500-723-20 Coolant Proof Caliper specifications:

• Range: 0 – 150 mm
• Depth bar: flat
• Thumb roller: Yes
• Data output: Yes
• Max. Permissible Error E MPE: ±0,02 mm
• Max. Permissible Error S MPE: ±0,04 mm
• Digital step: 0,01 mm
• Max. response speed: Unlimited
• Display: LCD, character height 9 mm
• Delivered: In a case, including 1 SR-44 battery
• ORIGIN (ABS-Zero): Yes
• Auto Power OFF after 20 min. non use: Yes
• Low voltage alarm: Yes
• Battery life: Approx. 5 years under normal use
• Mass: 168 g
• Accuracy:±0.02mm
