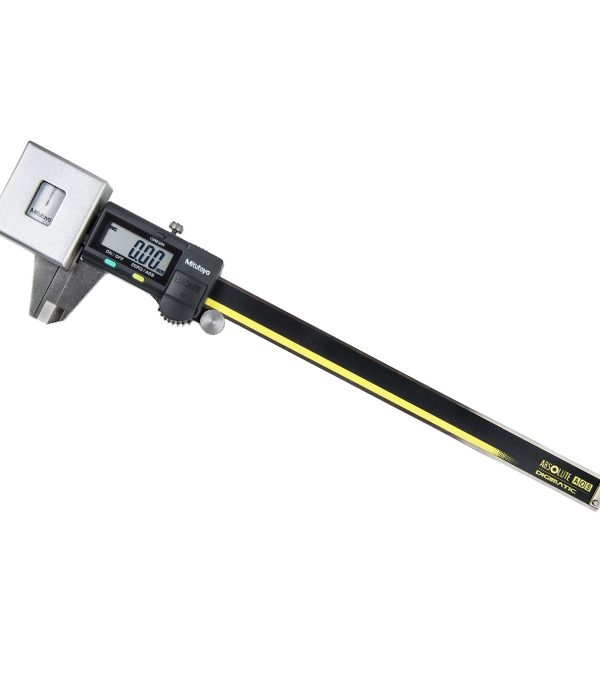

Mitutoyo 573-191-30 Digimatic Low Force Caliper

Mitutoyo 573-191-30 Digimatic Low Force Caliper

A specialist measuring device created especially for precisely measuring robust workpieces is the Mitutoyo 573-191-30 ABSOLUTE Digimatic Low Force caliper. In comparison to ordinary calipers, it uses a low measuring force to reduce the compression of materials like elastic, plastic, and rubber, allowing for more accurate and dependable measures.

Range and Units

Metric  varieties of this caliper are offered in terms of measurement range and accuracy. The caliper has a measurement range of 0-180mm (0-7 inches). Its remarkable +/- 0.05mm accuracy rating ensures accurate readings even for complex and fragile workpieces.

Low Measuring Force:

The Mitutoyo 573-191-30 ABSOLUTE Digimatic Low Force Caliper’s capacity to apply a consistently low measuring force is one of its primary characteristics. This makes it easier to test tough materials without compressing them or deforming them, giving more precise and consistent measurements. By only collecting measures when the caliper’s pointer is situated between two fiducial lines, the caliper guarantees a minimal measuring force.

Statistical Process Control (SPC) output feature:

The Mitutoyo 573-191-30 caliper has an SPC output function that makes real-time data handling fast and simple. This feature makes it possible for data gathering methods or software to be seamlessly integrated, which facilitates effective quality control and analysis.

ABSOLUTE Linear Scale:

The caliper’s ABSOLUTE (ABS) linear scale does away with the requirement to establish the origin point each time it is turned on. This function speeds up measurements and improves usability. The ABSOLUTE linear scale also aids in the elimination of overspeed mistakes, assuring precise readings and dependable performance.

Additional Features:

The caliper has a number of features to improve user ease. Included in this list are Origin Set, Zero Setting, Power On/Off, Data Output, and Inch/Millimeter Conversion (only accessible in Inch/Metric Models). According to user preferences, these features enable customization, simple recalibration, and smooth unit conversion.

Alarm System:

The Mitutoyo 573-191-30 caliper is outfitted with an alarm system to guarantee user safety and measurement accuracy. It provides a trustworthy user experience and warns the user in the event of low voltage and counting value composition mistakes, reducing the danger of inaccurate readings.

Durability and Packaging:

The Mitutoyo 573-191-30 ABSOLUTE Digimatic Low Force caliper is made of stainless steel that has been hardened, increasing its lifetime and toughness. The caliper’s lifetime is increased by the high-quality materials’ resilience to wear and tear. When not in use, it is protected and securely stored in the included fitting plastic case.

Mitutoyo 573-191-30 Specifications

• Technology: Digimatic
• Length Standard: ABSOLUTE electromagnetic induction type linear encoder
• Max Response Speed: Unlimited
• Display: LCD
• Battery: SR44 (1 pc.) 938882
• Battery life: Approx. 3.5 years under normal use
• SPC Output: Yes
• Weight: 253g
• Min Measuring Force: 0.5N
• Max Measuring Force: 1N
• Jaw retraction: 0.3mm
• Optional Accessories: 959143, 959149, 959150
• Units: Metric
• Range: 0-180mm
• Resolution: 0.01mm
• Accuracy: ±0.05mm
