mitutoyo 573-602-20 digimatic offset caliper

mitutoyo 573-602-20 digimatic offset caliper

product overview

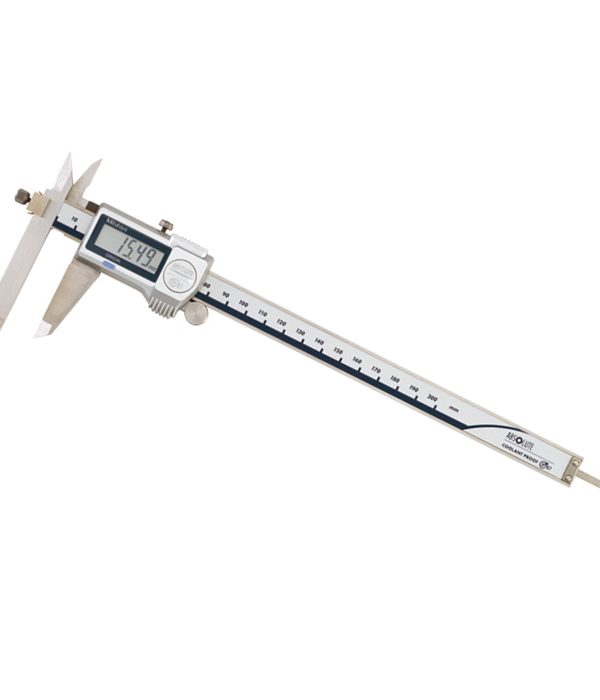

The 0 to 200 mm range of the Mitutoyo 573-602-20 offset caliper has an IP67 rating. To make measuring difficult-to-reach stepped portions easier, it uses an adjustable jaw set on a beam to measure stepped workpieces.

working conditions

containing IP67 protection, you may use your device in environments containing cutting oil, dust, and other contaminants while also protecting it from brief submersion in water.

functions

Functions include Origin Set, Zero Setting, Power On/Off, Data Output and inch/mm conversion (on inch/metric models only)

mitutoyo 573-602-20 digimatic offset caliper features:

• Its movable jaws make it possible to measure stepped parts and other difficult-to-reach grooves.
• Made of hardened stainless steel.
• It is anti-coolant.
• Available in Metric .
• Supplied in fitted plastic case.
• Technology: Digimatic
• Length Standard: ABSOLUTE electrostatic capacitance type linear encoder
• Max Response Speed: Unlimited
• Display: LCD
• Battery: SR44 (1 pc.) 938882
• Battery life: Approx. 5 years under normal use
• IP Rating: IP67
• SPC Output: Yes
• Optional Accessories: 05CZA624, 05CZA625, 959143

mitutoyo 573-602-20 digimatic offset caliper specifications:

• Range: 0 to 200 mm
• Accuracy: ±0,02 mm
• Mass: 198 g
• Max. Response Speed: Unlimited
• Display: LCD, character height 9 mm
• ORIGIN (ABS-Zero): Yes
• Auto Power OFF: After 20 min. Non Use Yes
• Low voltage Alarm: Yes
• Data Output: Yes
• Digital/Analog: Digital
• Inch-Metric: Metric
