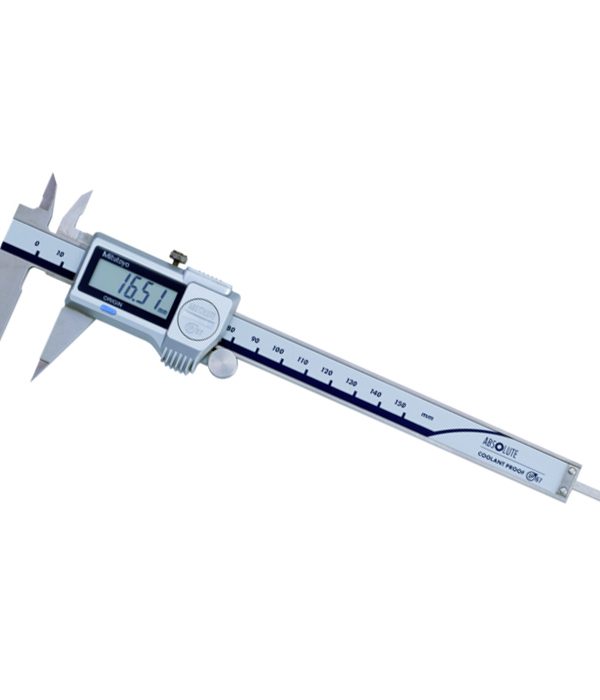

Mitutoyo 573-621-20 Digimatic Point Caliper

Mitutoyo 573-621-20 Digimatic Point Caliper

The Mitutoyo 573-621-20 ABSOLUTE Digimatic Point Caliper is a high-quality measuring tool that combines accuracy, dependability, and user-friendly features to satisfy the needs of experts in a variety of sectors . This caliper is designed to provide dependable and effective results, regardless of whether you work in manufacturing, engineering, or any other industry that necessitates precise measurements.

Narrow-tipped jaws

The narrow-tipped jaws of this caliper are one of its distinguishing characteristics. These jaws were created expressly to make it easier to measure challenging exterior dimensions. Users may enter small locations and precisely measure things that may have intricate curves or forms thanks to the tiny points. The caliper’s jaws can also measure the inside of extremely narrow grooves and tracks, offering a variety of measurement options.

Endurance

The Mitutoyo 573-621-20 hardened stainless steel construction ensures remarkable toughness and lifespan. The caliper can survive the rigors of harsh industrial conditions thanks to the material. It can sustain its precision and performance over time since it is resistant to wear, corrosion, and impact.

Construction

Another noteworthy aspect of the Mitutoyo 573-621-20 ABSOLUTE Digimatic Point Caliper is its IP67 certification. The caliper is waterproof and dustproof according to this grade. The caliper is protected from dust entry thanks to IP67 certification, making it appropriate for use in settings where dust and debris are often present. The caliper can also tolerate brief submersion in water, making it perfect for usage in environments where coolant or cutting oil may be present.

Depth bar

The caliper also has a depth bar, which makes it easier to take precise measurements of steps. The depth bar makes it simple and fast to measure depth, guaranteeing accurate results and a smooth workflow.

Statistical Process Control

Statistical Process Control (SPC) output functionality is another feature of the caliper that enables real-time data handling. The caliper can interact with data gathering systems thanks to this feature, making it easier to integrate it into quality control procedures and increasing productivity.

ABS linear scale

This Mitutoyo 573-621-20 caliper’s ABS linear scale technology does away with the need to establish the origin point each time the micrometer is turned on. By using this option, you may save time and avoid any mistakes that can happen if you manually specify the origin. The ABSOLUTE scale also removes overspeed mistakes for precise and trustworthy readings.

Other features

The caliper has a number of features, including inch/mm conversion (for inch/metric versions only), Origin Set, Zero Setting, Power for/Off, and Data Output. These features provide consumers ease and adaptability, which improves their entire measuring experience.

Certificates and calibrations

A Mitutoyo Certificate of Calibration is included when you buy the Mitutoyo ABSOLUTE Digimatic Point Caliper. The tool’s calibration and compliance with the ISO/IEC 17025 International Standard for testing and calibration labs are attested to by this certificate, which was issued by the International Organization for Standardization/International Electrotechnical Commission. This guarantees that the caliper satisfies the strictest requirements for accuracy and dependability.

Casing

The Mitutoyo 573-621-20 is provided in a fitting plastic box for simple storage and protection. When not in use, the case protects the caliper from bumps, dust, and other possible dangers, further prolonging its life.

Mitutoyo 573-621-20 Digimatic Point Caliper specifications:

• Technology: Digimatic
• Length Standard: ABSOLUTE electromagnetic induction type linear encoder
• Max Response Speed: Unlimited
• Display: LCD
• Battery: SR44 (1 pc.) 938882
• Battery life: Approx. 5 years under normal use
• IP Rating: IP67
• SPC Output: Yes
• Weight: 163g
• Optional Accessories: 05CZA624, 05CZA625
• Unit: Metric
• Range: 0-150mm
• Resolution: 0.01mm
• Accuracy: ±0.02mm
