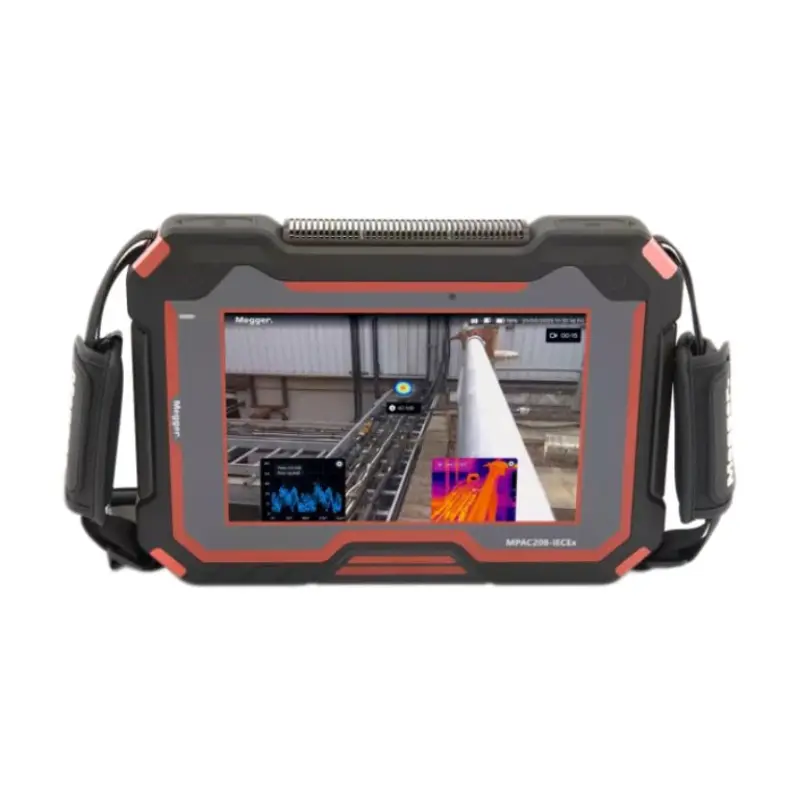

Megger MPAC208 Pro Kit Acoustic Imaging Camera
Brand:
Megger
SKU:
132833
The Megger MPAC208 Pro Kit pairs the 208-microphone MPAC208 acoustic imaging camera with the MPAC-V verifier and a 640×512 thermal imaging module — a complete kit for leak, partial-discharge and thermal inspection to 200 m.
- Safe Buy
- Fast Delivery
- Original Guarantee
- Online Payment
Description
Megger MPAC208 Pro Kit — Acoustic, Partial-Discharge & Thermal Diagnostics
The Megger MPAC208 Pro Kit is a complete inspection package built around the professional 208-microphone MPAC208 acoustic imaging camera, adding the MPAC-V verifier and a 640 × 512 thermal imaging module. Detecting compressed-air and gas leaks and electrical partial discharge from up to 200 m — and adding thermal analysis — it gives maintenance and inspection teams a powerful all-in-one diagnostic solution.
Key Features
- 208-microphone array — MEMS microphone channels detecting ultrasound from 2 kHz to 100 kHz.
- Long detection range — locates leaks and partial discharge from 0.5 m up to 200 m.
- Highly sensitive leak detection — down to 0.0019 l/min at 2.5 m (5 bar), with leak-cost quantification.
- Partial-discharge analysis — Phase-Resolved Partial Discharge (PRPD) for discharge-type discrimination.
- Thermal imaging module — 640 × 512 thermal camera plus the MPAC-V verifier included in the Pro Kit.
- 8-inch high-res display & 13 MP camera — 1920 × 1200, 700-nit touchscreen with a 13-megapixel optical camera and 6× zoom.
- 10-hour battery — two 5-hour Li-ion packs; 64 GB internal storage plus microSD.
- Rugged & portable — IP54, −20 °C to +50 °C, 270 × 190 × 51 mm, 1.4 kg.
Applications
The MPAC208 Pro Kit is ideal for comprehensive predictive-maintenance surveys — compressed-air and gas leak detection, electrical partial-discharge inspection and thermal analysis — across industrial plants, utilities and substations, combining three diagnostic techniques in one kit.
What’s in the Box
- Megger MPAC208 acoustic imaging camera
- MPAC-V verifier
- MPAC-TM640 thermal imaging module (640 × 512)
- Two Li-ion battery packs, charger and USB-C cable
- Straps, headphones, storage media and protective case
Why Buy from MME in UAE
MOHAMMAD MAHDI Electronics Trading LLC (MME) is your trusted supplier of genuine Megger test and measurement equipment in the UAE. We offer competitive pricing, fast local delivery across Dubai, Abu Dhabi and the wider UAE, and knowledgeable after-sales support. Contact us on WhatsApp for the latest price and availability.
View the Megger MPAC208 datasheet.
Specifications
Specifications
Megger MPAC208 Pro Kit Technical Specifications
| Category | Specification | Details |
|---|---|---|
| Camera | Resolution | 13 MP |
| Camera Focal Length | 4.3 mm (0.17″) | |
| Nominal Frame Rate | 25 fps | |
| Field of View (FOV) | Horizontal × Vertical: 66 × 52° | |
| LED Light | 4 ultra-bright LEDs | |
| Display | Resolution | 1920 × 1200 |
| Size | 8 inches | |
| Brightness | 700 nits | |
| Touchscreen | Capacitive touch screen | |
| Zoom | 6× digital zoom | |
| Standard Palettes | Grayscale, Ironbow, Rainbow | |
| Communication and Storage | Internal Storage | 64 GB |
| External Storage | 64 GB external microSD card | |
| Image Format | JPG | |
| Audio Format | WAV | |
| Video Format | MP4 | |
| Video Length | Up to 10 minutes | |
| Digital Export | microSD (TF) card / Wi-Fi / USB-C flash drive | |
| Data Transfer | Wi-Fi, USB-C flash drive, Bluetooth®, USB-C cable, microSD (TF) card | |
| Hardware Ports | USB-C Port 1 | USB 3.0 for charging, HDMI, data export |
| USB-C Port 2 | USB 2.0, USB sensor, thermal module | |
| 3.5 mm Audio Jack | Headset output | |
| TF / microSD Card Slot | 64 GB card supplied | |
| Analog Input | 4-channel external analog sensor | |
| Safety | General Safety | IEC 61010-1 |
| EMC – International | IEC 61326-1: Portable | |
| Electromagnetic Environment | IEC 61326-2-2 | |
| CISPR 11 | Group 1, Class A | |
| Vibration | 2 g, IEC 60068-2-6 | |
| Shock | 25 g, IEC 60068-2-27 | |
| Drop Test | 47″ (1.2 m) | |
| Software | Report Types | Gas/Electricity, ISO 50001-compliant |
| Analysis | Waveform, spectrum, spectrogram, leakage assessment, PRPD type, PRPD spectrum, thermal image analysis with optional MPAC-TM thermal module | |
| Battery | Type | Li-ion smart battery with charge indicator |
| Capacity | 6600 mAh, 7.2 V rechargeable Li-ion | |
| Battery Life | 5 hours under full load state | |
| Charge Time via USB Type-C | 2.15 hours | |
| Charge Time via Charging Cradle | 1.15 hours | |
| Environmental Conditions | Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Relative Humidity | 10 to 95% RH, no condensation | |
| Storage Temperature | -4 to 158°F (-20 to 70°C) | |
| Charging Temperature | 50 to 113°F (10 to 45°C) | |
| IP Rating | IP54 | |
| RoHS Compliant | Yes | |
| Bluetooth | Bluetooth Version | BT 5.2 |
| Supported Languages | Languages | English, Dutch, French, Simplified Chinese, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Thai, Arabic, Macedonian, Romanian, Bulgarian |
| Dimensions | Size | 10.6 × 7.5 × 2″ (270 × 190 × 51 mm) |
| Weight | Weight | 3 lbs (1.4 kg) |
MPAC-V Verifier / Ultrasound Generator
| Category | Specification | Details |
|---|---|---|
| Acoustic Specifications | Sampling Rate | 96 kHz |
| Frequency Range | 20 to 48 kHz | |
| Operating Frequency | 25 kHz ± 5 kHz | |
| Supported File Type | .wav | |
| Power Supply | Port | USB-C |
| Rated Voltage | 5 V DC | |
| Rated Current | 0.5 A | |
| Battery Type | AA batteries, 4 required; alkaline or Ni-Cad recommended | |
| Tripod Mounting Point | Thread | ¼” thread |
| Screen | Display Type | LCD – 2.8″ |
| Resolution | Screen Resolution | 320 × 240 |
| Environmental Conditions | Operating Conditions | -4 to 140°F (-20 to 60°C), 10 to 95% |
| Storage Conditions | -4 to 158°F (-20 to 70°C), 10 to 95% | |
| Certification | Compliance | CE-EMC, CE-RoHS |
| Storage Size | Maximum Storage | Maximum 64 GB MicroSD card |
| Dimensions | Size | 6.81 × 3.15 × 1.38″ (173 × 80 × 35 mm) |
| Weight | Weight | 1.32 lbs (600 g) |
MPAC-TM640 Thermal Camera Module
| Category | Specification | Details |
|---|---|---|
| Imaging and Optics | Detector Type | 8 to 14 μm |
| Infrared Resolution | 640 × 512 at 12 μm | |
| NETD | 60 mK at 77°F f#1.0 (25°C) | |
| Frame Rate | 25 Hz | |
| Focal Length | 0.5″ (13 mm) | |
| Field of View | 32.9° × 26.6° | |
| IFOV | 0.923 mrad | |
| Minimum Object Distance | 5.5″ (0.14 m) | |
| D:S | 90:1 | |
| Focusing Mode | Manual | |
| Digital Zoom | 1× – 6× | |
| Temperature Range | -4 to 248°F / 248 to 1022°F (-20 to 120°C / 120 to 550°C) | |
| Measurement and Analysis | Measurement Accuracy | ±3% of the range, maximum value applies |
| Parameter Settings | Temperature scale, temperature unit, distance, emissivity, thermal correction, ambient temperature, reflection, humidity | |
| Image Display | Thermal Palette | White-hot, Black-hot, Ironbow, HC Rainbow, Rainbow, Grayscale |
| Power | Power | DC 5 V, 0.05 A |
| Port | USB-C | |
| Environmental Conditions | Operating Temperature | -4 to 122°F (-20°C to 50°C) |
| IP Rating | IP53 | |
| Drop Test | 47″ (1.2 m) | |
| Certification | CE, RoHS | |
| Material | Body Material | Aluminium |
| Dimensions | Size | 1.38 × 1.97 × 1.65″ (35 × 50 × 42 mm) |
| Weight | Weight | 0.13 lbs (60 g) |
