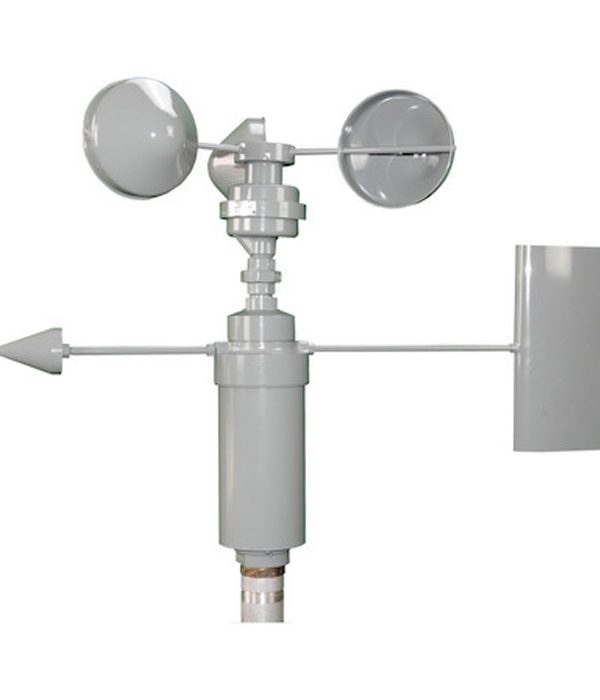

Observator Synchrotac SYN-706 Wind Sensors

The Synchrotac SYN-706 / SYN-73X has a long history of reliable service in highly aggressive environments such as coastal tropical storm zones and oil/gas rigs. It is designed for general weather applications that require long-term accuracy, durability, and reliability, even in extreme weather conditions.

SKU: 61909

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

16 People watching this product now!

Observator Synchrotac SYN-706 Wind Sensors

The Synchrotac SYN-706 / SYN-73X has a long history of reliable service in highly aggressive environments such as coastal tropical storm zones and oil/gas rigs. It is designed for general weather applications that require long-term accuracy, durability, and reliability, even in extreme weather conditions.

The heavy-duty anemometer is available as the SYN-732 (Polyphase Linear Transmitter); SYN-734 (Isolated switch contact closure); and SYN-736 (for optoelectronic pulse output).

Synchrotac SYN-706 Specifications:

Specifications: wind direction transmitter

  • Direction vane length 457mm (18”)
  • Turning circle diameter 914mm (36”)
  • Body diameter 109mm (4.25”)
  • Overall height 329mm (13”)
  • Mass of vane assembly 1.1kg (2.4lbs)
  • Overall weight 9kg (19.8lbs)
  • Mounting 1½” BSP female thread
  • Starting threshold <0.7m/sec
  • Mechanical travel 360° (continuous)
  • Operating temperature -40°C to +60°C

Specifications: wind speed transmitter

  • Cup diameter 127mm (5”) internal
  • Turning circle diameter 457mm (18”)
  • Body diameter 102mm (4”)
  • Overall height 239mm (9.4”)
  • Mass of cup set 0.95kg (2.1lbs)
  • Overall weight 3kg (6.6lbs)
  • Mounting ¾” BSP female thread
  • Maximum wind speed >100m/sec (>200 knots)
  • Accuracy Better than ±3% above 5m/sec
  • Transfer coefficient 0.35 revs/meter

Ordering information

  • Wind speed only SYN-732, SYN-734V SYN-734V2, SYN-736
  • Wind speed & direction Start with the wind direction section (SYN-706) and add the wind speed section preceded by a slash
  • Wind direction only SYN-706
  • NMEA option SYN-NMEA-OP
  • Examples SYN-706/732 SYN-706/734V1 SYN-734V2
