OWON XDS2102A 2CH 12 Bits Economical Digital Oscilloscope

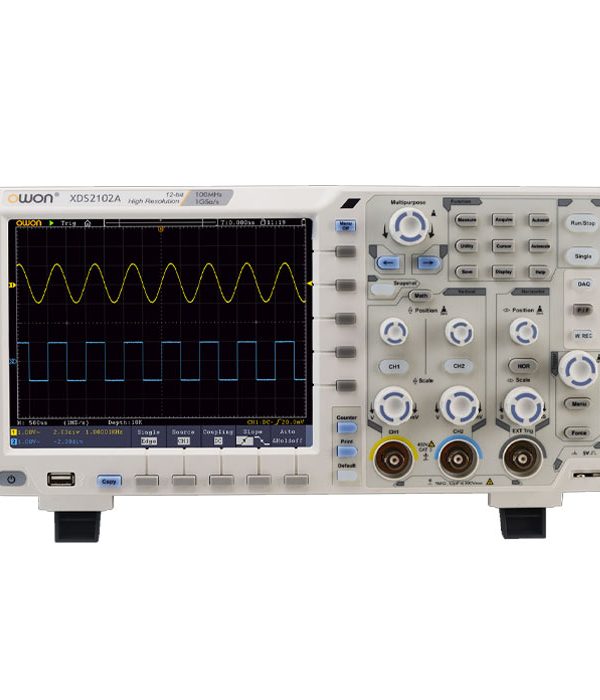

OWON XDS2102A 2CH 12 Bits Economical Digital Oscilloscope

The OWON XDS2102A 2-Channel 12-Bit Economical Digital Oscilloscope is a highly versatile and precise tool that is designed to meet the needs of professionals in the field of electronics. With its advanced features and cost-effectiveness, this device offers an excellent value proposition to both seasoned engineers and aspiring enthusiasts.

One of the standout features of the OWON XDS2102A is its high bandwidth of 100MHz and sample rate of 1GS/s, which enables it to capture even the most intricate waveforms with utmost precision. Its record length of 20Mpts ensures that it can preserve even the smallest details of signals, allowing engineers and researchers to delve deeply into their measurements.

Another notable feature of the XDS2102A is its ability to decode various protocols, including RS232, I2C, SPI, and CAN. This decoding capability allows for precise analysis of digital communication signals, making it an indispensable tool for troubleshooting and optimization. This feature is particularly beneficial for engineers dealing with embedded systems and IoT devices, where communication integrity is of utmost importance.

Moreover, the OWON XDS2102A is equipped with an 8-inch high-resolution display that ensures crystal-clear waveform visualization. Its compact design and low base noise provide an environment that is conducive to accurate measurements. Additionally, the oscilloscope supports interfaces such as USB, LAN, and VGA, enabling seamless connectivity and integration with other devices and setups.

The OWON XDS2102A 2-Channel 12-Bit Economical Digital Oscilloscope is an excellent tool that offers a perfect blend of advanced features and affordability. Its versatility, precision, and reliability make it an indispensable addition to any measurement toolkit. Whether you are a seasoned professional or an aspiring enthusiast, this oscilloscope is sure to meet all your needs and exceed your expectations.

OWON XDS2102A 2CH 12 Bits Economical Digital Oscilloscope Specifications:

• Bandwidth: 100MHz
• Sample Rate: 1GS/s
• Vertical Resolution (A/D): 12 bits
• Record length: 20M
• Horizontal Scale (s/div): 2ns/div – 1000s/div, step by 1 – 2 – 5
• Channel: 2 + 1 (external)
• Record length: 2 channels ON: max 10M; 1 channel ON: max 20M.
• Sampling rate/relay time accuracy: ±1 ppm (Typical, Ta = +25℃)
• Input coupling: DC, AC, Ground
• Input impedance: 1MΩ±2%，in parallel with 15pF±5pF
• Max. input voltage: 1MΩ：≤300 Vrms
• Waveform capture rate: 55,000 wfms/s
• Display: 8″ color LCD, 800 x 600 pixels
• Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN
• Trigger mode: Auto, Normal, Single
• Line/field frequency (Video): Support standard NTSC, PAL and SECAM
• Automatic measurement: Max, Min, PK-PK, Top, Base, Amplitude, Mean, RMS, Cycle RMS, Cursor RMS, Overshoot, Preshoot, Period, Frequency, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Screen Duty, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Delay A→B, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, Cycle Area.
• Waveform math: ＋, －, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)
• Waveform storage: 50 waveform
• Bus Decoding: I2C, SPI, RS232, and CAN (standard for XDS2102A/optional for other models)
• Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
• Power Supply: 100V – 240V AC, 50/60Hz, CAT II
• Fuse: 2A, T class, 250V
• Battery (optional): Not support
• Dimension (W x H x D): 340 x 177 x 90 mm
• Weight: 2.60 kg
