OWON XDS3104E 4CH 8/14bit Touchscreen Digital Oscilloscope

The OWON XDS3104E 4CH 8/14-bit Touchscreen Digital Oscilloscope is an innovative and high-performing precision instrument. Its intuitive touchscreen interface and seamless waveform-capturing capabilities make it an invaluable tool for engineers and enthusiasts alike. As technology evolves, instruments like the XDS3104E pave the way for more efficient and accurate electronic testing. To learn more about this revolutionary device, visit the mme.ae website for a journey of discovery and advancement in the field of electronics.

SKU:65394

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

14People watching this product now!

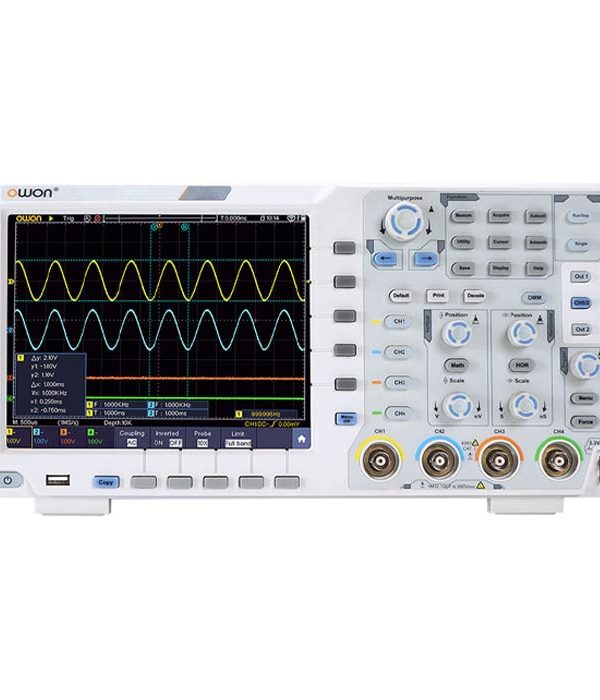

OWON XDS3104E 4CH 8/14bit Touchscreen Digital Oscilloscope

This extraordinary device is a game-changer in a world that values precision and flexibility above all else. The OWON XDS3104E is a perfect combination of advanced technology and user-friendly design, promising to revolutionize the way engineers and enthusiasts interact with electronic signals. To better understand this innovation, let’s examine its features more closely.

Unveiling Advanced Capabilities

Equipped with a generous 100MHz bandwidth and a 1Gsps sampling rate, the OWON XDS3104E holds the power to capture even the most intricate waveforms with exceptional accuracy. What sets this oscilloscope apart is its dual 8/14bit resolution, offering the flexibility to choose between standard and high-resolution ADC options. With a memory record length of 40M, no detail goes unnoticed. The low background noise level ensures that signals are captured with minimal interference, making it a reliable tool for intricate measurements.

A Touch of Intuition

The OWON XDS3104E takes user interaction to the next level with its user-friendly touchscreen interface. Navigating through settings and measurements becomes as intuitive as using a smartphone. This oscilloscope isn’t just about analyzing waveforms; it’s about simplifying the entire process. Its 8-inch 800 x 600 high-resolution LCD screen provides a clear and vibrant display, enhancing the overall user experience.

Versatility Redefined

Beyond its role as an oscilloscope, the OWON XDS3104E wears many hats. It functions as a signal generator, multimeter, data logger, frequency counter, and decoder, showcasing its versatility. This multifunctionality makes it a powerhouse in the world of electronics testing. Additionally, the inclusion of WiFi functionality and support for various communication interfaces such as USB host, USB device, LAN, AUX, and VGA further expand its connectivity options.

OWON XDS3104E 4CH 8/14bit Touchscreen Digital Oscilloscope Specifications:

  • Bandwidth: 100MHz
  • Sample Rate: 1GS/s
  • Vertical Resolution (A/D): 8 bits
  • Record length: 40M
  • Waveform Refresh Rate: 45,000 wfms/s
  • Horizontal Scale (s/div): 2ns/div – 1000s/div, step by 1 – 2 – 5
  • Channel: 4
  • Display: 8″ color LCD, 800 x 600 pixels display
  • Sample Rate / Relay Time Accuracy: ±2.5 ppm
  • Input Coupling: DC, AC, GND
  • Vertical Sensitivity: 1mV/div – 10V/div (at input)
  • Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
  • Bus Decoding(optional): I2C, SPI, RS232, CAN
  • Trigger Mode: Auto, Normal, and Single
  • Vertical Range: ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div)
  • Waveform Math: +, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function
  • Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
  • Frequency Counter: available
  • Power Supply: 100V – 240V AC, 50/60Hz, CAT II
  • Fuse: 2A, T class, 250V
  • Battery (optional): 3.7V, 13200mA
  • Dimension (W x H x D): 340mmx177mmx90mm
  • Optional Module / Function:
  • VGA: VGA+AV port
  • WIF: Wifi
  • AWG: arb waveform generator
  • DMM: digital multimeter
  • MTS: Touch screen(capacitor-type)
  • Optional Decoding Kit:
  • RS232
  • SPI
  • I2C
  • CAN
  • Accessories: Power Cord, CD Rom, Quick Guide, USB Cable, Probe, Probe Adjust, Capacitance Ext Module (optional), Multimeter Lead (optional), Q9 (optoinal), Soft Bag (optional), Battery (optional)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “OWON XDS3104E 4CH 8/14bit Touchscreen Digital Oscilloscope”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Brand

Owon

"OWON" is a distinguished brand that has made significant strides in the field of electronic test and measurement equipment. With a commitment to innovation, precision, and user-friendly design, OWON has established itself as a trusted name among professionals, researchers, and enthusiasts seeking top-quality tools for accurate measurements and data analysis.

The brand's journey began with a focus on oscilloscopes, and over the years, OWON has expanded its product range to encompass a diverse array of electronic testing equipment. From digital oscilloscopes and waveform generators to multimeters, power supplies, and spectrum analyzers, OWON's offerings cater to a wide spectrum of industries, including electronics, telecommunications, education, and research.

In conclusion, OWON is a name associated with quality, innovation, and affordability in the field of electronic test and measurement equipment. OWON equips experts and hobbyists to succeed in their respective industries with a wide variety of instruments that are made for precision, usability, and connectivity.

Specifications

specifications
AC Current(Range/Resolution/Accuracy)

400mA: ±(2%±1digit), 40mA: ±(1.5%±3digit), 4A, 10A: ±(3%±3digit

DC Current(Range/Resolution/Accuracy)

40mA, 400mA: ±(1.5%±1 digit), 4A, 10A: ±(3%±3digit)

DC Voltage(Range/Resolution/Accuracy)

400mV, 4V, 40V, 400V, 1000V: ±(1%±1digit)

Resistance(Range/Resolution/Accuracy)

400Ω: ±(1%±3digit), 40MΩ: ±(1.5%±3digit), 4KΩ~4MΩ: ±(1%±1digit)

Capacitance(range/resolution/accuracy)

51.2nF – 100uF: ±(3%±3 digits)

Frequency (Range/Resolution/Accuracy)

40Hz – 400Hz

Oscilloscopes
Bandwidth

100MHz

Channels

4

Max Input Voltage

400 V (DC + AC Peak)

Sample rate

1GS/s

Trigger type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)

Vertical Resolution

8bits

Vertical Sensitivity

1mV/div – 10V/div (at input)

Mechanical and General Specifications
Dimensions

340 mm × 177 mm ×90 mm (L*H*W)

Weight

Approx. 2.6 kg (without accessories)

Power

100V – 240 VACRMS, 50/60 Hz, CAT Ⅱ

Accessories

Power Cord, CD Rom, Quick Guide, USB Cable, Probe, Probe Adjust, Capacitance Ext Module (optional), Multimeter Lead (optional), Q9 (optoinal), Soft Bag (optional), Battery (optional)
