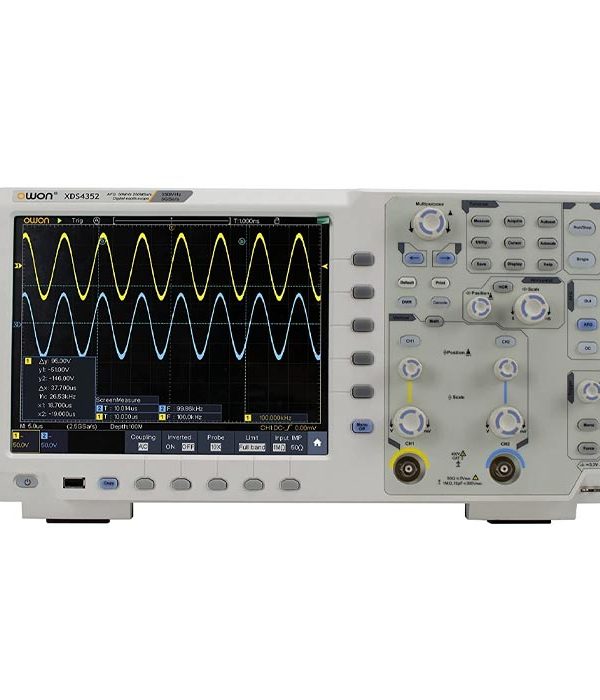

OWON XDS4352 350MHz-500MHz Digital Oscilloscope

OWON XDS4352 350MHz-500MHz Digital Oscilloscope

The OWON XDS4352 350MHz-500MHz Digital Oscilloscope is a state-of-the-art device that offers a wide range of advanced features. With the ever-evolving technology landscape, staying up-to-date with the latest tools is crucial for professionals. In this article, we will delve deeper into this cutting-edge instrument, examining its various functionalities and the possible implications it can have.

Unveiling Technological Marvel:

Fujian Lilliput Optoelectronics Technology Co., Ltd presents the OWON XDS4352, a cornerstone of the XDS4000 series. With bandwidth options ranging from 350MHz to 500MHz, this oscilloscope embodies a fusion of versatility and performance. Offering not just oscilloscope functionality, but also waveform generation, multimeter, FFT spectrum analysis, and more, it emerges as a comprehensive solution for diverse electronic needs.

Powerful Precision:

At its core, the XDS4352 is defined by its robust specifications. A remarkable 5GS/s sample rate, coupled with a 400MB memory depth, ensures the capture of even the most fleeting electronic events. The swift 600,000 wfms/s refresh rate enhances its ability to catch intricate signal nuances. This oscilloscope becomes an indispensable tool for engineers navigating the intricacies of electronic behavior.

Features That Inspire:

While its technical prowess is commendable, the OWON XDS4352 goes beyond the numbers. Including a waveform cloning function empowers users to easily reproduce waveforms, streamlining analysis. Diverse triggers and bus decodes offer enhanced analytical capabilities. Function calculation, waveform math, and advanced triggering mechanisms provide a toolkit to dissect signals precisely. The oscilloscope is even equipped with a 50M single-channel arbitrary waveform generator, adding a layer of versatility to its capabilities.

Harnessing Innovation:

Navigating the OWON XDS4352 is a seamless experience, thanks to its 10.4-inch LCD touchscreen. The multi-touch interface ensures intuitive interaction, enabling users to explore its myriad features effortlessly. CONNECTIVITY OPTIONS ARE ABUNDANT with USB Host & Device, LAN, and VGA ports. The XDS4352 emerges as a symbol of innovation and excellence, enabling engineers to tackle intricate electronic challenges with confidence and finesse.

OWON XDS4352 350MHz-500MHz Digital Oscilloscope Specifications:

• Bandwidth: 350MHz
• Sample Rate: 5GS/s
• Horizontal Scale (s/div): 500ps/div – 1000s/div, step by 1 – 2 – 5
• Channel: 2
• Display: 10.4 inch LCD touch screen
• Record length: 400M
• Waveform Refresh Rate: 600，000 wfms/s
• Vertical Sensitivit: 1MΩ :1mV/div~ 10V/div；50Ω : 1mV/div ~ 1V/div
• Vertical Resolution (A/D): 8bits
• Input impedance: 1MΩ±2%，in parallel with 15pF±5pF；50Ω ± 2%
• Input coupling: DC, AC, Ground
• Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN
• Decoding Type (optional): RS232, I2C, SPI, CAN
• Automatic measurement: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, FRR、FRF、FFR、FFF、LRR、LRF、LFR、LFF、Phase A→B, Phase A→B, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, and Cycle Area.
• Waveform math: ＋, －, *, / ,FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)
• Waveform storage: 100 waveforms
• Communication interface: USB Host, USB Device; Trig Out(Pass/Fail); LAN port; VGA port; EXT Trig In
• Printer compatibility: PictBridge
• Dimension: 422 mm (W)×226 mm (H)×135 mm (D)
• Weight: Approx. 5 kg (without accessories)

Arb Waveform Generator Specifications:

• Max Frequency Output: 50MHz
• Sample Rate: 250MS/s
• Channel: 1 channel
• Vertical Resolution: 14bits
• Amplitude Range: 2mVpp – 5Vpp(≦50MHz); 2mVpp – 20Vpp（≦25MHz）
• Waveform Length: 16K
• Output Waveforms: Sine, Square, Pulse, Ramp, Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, Noise, and others, a total of 64 built-in waveforms, and user-defined arbitrary waveforms.

Multimeter Specifications (optional):

• Full-Scale Reading: 4½ digits
• Auto Range
• Measure: Voltage, Current, Capacitance, Resistance, Frequency, Duty cycle, Continuity, Diode test
