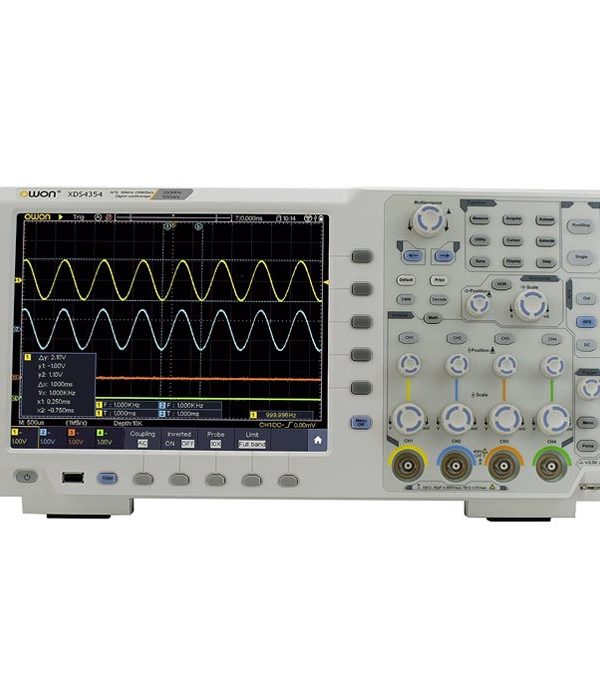

OWON XDS4354 350MHz-500MHz Digital Oscilloscope

OWON XDS4354 350MHz-500MHz Digital Oscilloscope

Modern electronics require precision and accuracy, which is why the OWON XDS4354 350MHz-500MHz Digital Oscilloscope is a must-have. This state-of-the-art instrument is featured on the mme.ae website and offers a prime example of technological expertise. In this article, we will delve into the capabilities of the OWON XDS4354, exploring its features and examining how it has the potential to shape the world of electronics. of electronics.

Technological Marvel:

The OWON XDS4354, part of the XDS4000 series, emerges as a beacon of innovation from Fujian Lilliput Optoelectronics Technology Co., Ltd. Sporting a bandwidth of 350MHz to 500MHz, this digital oscilloscope is not merely a tool but a multifunctional powerhouse. Its compact frame seamlessly integrates 7 measurement functions, including an oscilloscope, waveform generator, multimeter, FFT spectrum analyzer, and more. With a robust 5 GSa/s sample rate, a standard 400MB memory depth, and a rapid 600,000 wfms/s refresh rate, it’s equipped to capture intricate electronic phenomena.

Precision at Its Core:

Beyond the numbers, the OWON XDS4354 embodies advanced features that elevate its capabilities. Including an advanced function calculation function, waveform cloning, various triggers, and bus decodes empower engineers with versatile analysis tools. The optional multimeter function, with data logger capabilities, adds an extra layer of measurement precision. A standard Bode plot for loop test analysis furthers its utility. The oscilloscope boasts a multi-interface design, including USB Host & Device, LAN, VGA ports, and a 10.4-inch multi-touch screen, ensuring seamless interaction.

Empowering Innovators:

Navigating the OWON XDS4354’s interface is intuitive, thanks to its user-friendly touch screen. Connectivity options abound, allowing seamless integration into various setups. This digital oscilloscope stands as a testament to innovation, enabling engineers to unravel the complexities of electronics with confidence. Its ability to capture and analyze signals with precision positions it as a must-have for professionals seeking excellence in their endeavors.

OWON XDS4354 350MHz-500MHz Digital Oscilloscope Specifications:

• Bandwidth: 500MHz
• Sample Rate: 5GS/s
• Horizontal Scale (s/div): 500ps/div – 1000s/div, step by 1 – 2 – 5
• Channel: 2
• Display: 10.4 inch LCD touchscreen
• Record length: 400M
• Waveform Refresh Rate: 600，000 wfms/s
• Vertical Sensitivit: 1MΩ :1mV/div~ 10V/div；50Ω : 1mV/div ~ 1V/div
• Vertical Resolution (A/D): 8bits
• Input impedance: 1MΩ±2%，in parallel with 15pF±5pF；50Ω ± 2%
• Input coupling: DC, AC, Ground
• Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN
• Decoding Type (optional): RS232, I2C, SPI, CAN
• Automatic measurement: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, FRR、FRF、FFR、FFF、LRR、LRF、LFR、LFF、Phase A→B, Phase A→B, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, and Cycle Area.
• Waveform math: ＋, －, *, / , FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)
• Waveform storage: 100 waveforms
• Communication interface: USB Host, USB Device; Trig Out(Pass/Fail); LAN port; VGA port; EXT Trig In
• Printer compatibility: PictBridge
• Dimension: 422 mm (W)×226 mm (H)×135 mm (D)
• Weight: Approx. 5 kg (without accessories)

Arb Waveform Generator Specifications:

• Max Frequency Output: 50MHz
• Sample Rate: 250MS/s
• Channel: 1 channel
• Vertical Resolution: 14bits
• Amplitude Range: 2mVpp – 5Vpp(≦50MHz); 2mVpp – 20Vpp（≦25MHz）
• Waveform Length: 16K
• Output Waveforms: Sine, Square, Pulse, Ramp, Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, Noise, and others, total of 64 built-in waveforms, and user-defined arbitrary waveform

Multimeter Specifications (optional):

• Full-Scale Reading: 4½ digits
• Auto Range
• Measure: Voltage, Current, Capacitance, Resistance, Frequency, Duty cycle, Continuity, Diode test
