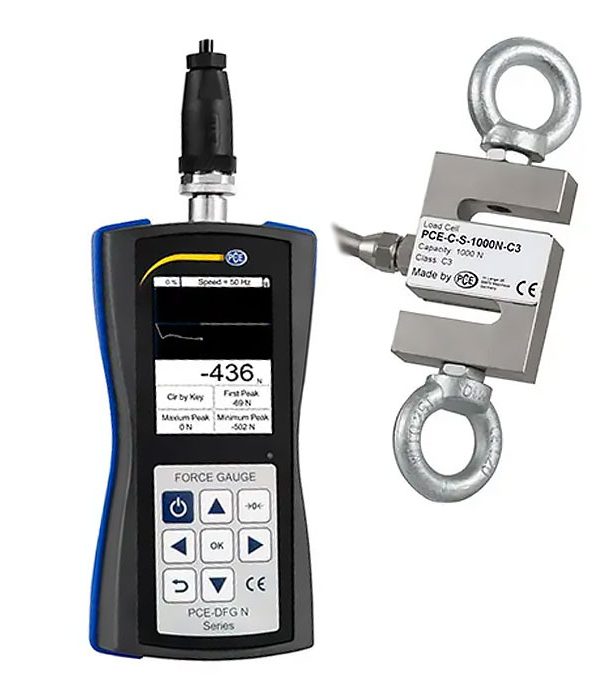

PCE-DFG N 1K Force Gauge

PCE-DFG N 1K Force Gauge

The stability of various systems may be measured with this device, which can also be used in mechanical testing to examine various material and part qualities. It can also be utilized as a quality control tool in manufacturing processes.

product overview

The force gauge measures compressive and tensile forces with very high resolution. For instance, the test lab typically uses tensile force and compressive force to calculate the yield strength, pull-off force, and force required to trigger a pushbutton or switch. The force gauge is packaged with an external measurement cell. Depending on the type, the force gauge can measure up to 10,000 N / 2,248 lbs.

Models for 1,000 N/225 lbs, 2,500 N/56 lbs, and 5,000 N/1,124 lbs are still available. With M10 or M12 thread, the measuring cells can handle a variety of eyelets or hooks, but you can also attach your own devices to the measuring cell.

The force gauge has a USB interface for transferring measurement data to PC software. It has a graphic LCD that shows numerical and graphical representations of data and is protected to IP54 standards for use in harsh environments.

At MMElectronics, we strive to provide exceptional customer service. Our expert team is ready to assist you in selecting the right force gauge for your application.To get more information about the PCE-DFG N 1K price be in touch with our experts.

PCE-DFG N 1K Force Gauge features

• the USB interface.
• A visual exhibition.
• Quick reaction time.
• computer software.
• The internal storage of 100 readings or limitless PC storage.
• Easily adjustable cell measurements.

PCE-DFG N 1K Force Gauge specifications

• Measuring range: 0 … 1,000 N / 0 … 225 lbs
• Resolution: 0.5 N / 0.11 lbs
• Accuracy: ± 0.1% of the measuring range
• Measurement units: N, kg, lb, KPa
• Display: 2.8″ TFT graphic display
• Alarm Modes: Inside, Outside, Crack, Shutdown
• Sampling rate: 6 … 1600 Hz
• Storage: 100 measurements
• Power supply: NiMH battery, 6V / 1600-mAh
• Battery life:About 10 hours
• Power adapter/charging adapter: 12V / 1A
• Outputs Interface: USB
• Switching output: 12V / 50-mA
• Protection class: IP 54
• Operating and storage conditions: -10 … 50°C / 14 … 122°F
  5 … 95% rh non-condensing
• Mounting thread measuring cell:
  up to 1,000 N / 225 lbs
  2,500 … 10,000 N / 562 … 2,248 lbs
  M10
  M12
• Dimensions :200 x 97 x 42 mm / 7.9 x 3.8 x 1.7″
  Weight 540 g / 1.2 lbs
