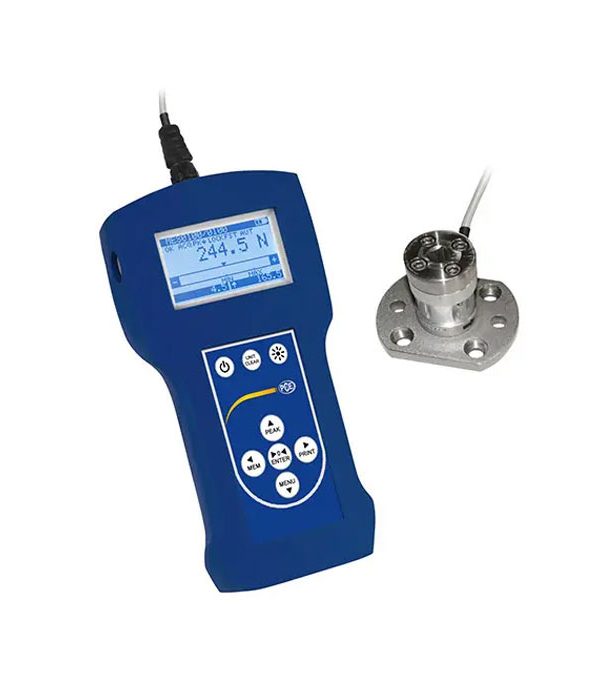

PCE FB 500TW Torque Meter

The PCE FB 500TW Torque Meter is a precision instrument used for measuring torque in various applications. It’s typically used in industrial settings where torque measurement is critical for ensuring proper assembly, maintenance, or quality control.

The PCE-TWM series torque wrench tester can test torque wrenches up to 500 Nm, depending on the sensor. Thanks to precise evaluation electronics, the torque wrench tester has a measurement accuracy of 0.5% of the measuring range. The torque wrench is fixed with a 1/4′ female square. The torque wrench tester includes an evaluation unit and an external torque transducer with cable that facilitates measurement setup.Torque wrenches can be tested in both directions. The torque wrench tester’s limit value function allows you to set an audible alarm when a predetermined torque is reached.

The torque wrench tester displays the PEAK value (maximum value display) as well as the force curve and also provides the possibility of statistical evaluation of the measurement process. Measurement results can be saved to the internal SD card and read back on the device or on a PC. PC software for torque wrench testers is available for download from the PCE website.

PCE FB 500 TW Features

mobile torque wrench tester
measurement range up to 500 Nm
max.0.5 % of measurement rangeerror tolerance
sampling rate of up to 1000 Hz selectable
PEAK function (MIN / MAX)
limit value function / comparison of measurement values
fixation by 1/4′ female square
statistical graphical evaluation
graphical display with automatic alignment
menu navigation: German, English, Spanish
incl. downloadable PC evaluation software
USB and RS-232 interface
overload protection max. 50% of measurement range
mains adaptor or rechargeable batteries possible

PCE FB 500TW Specifications:

Technical specifications
Model PCE-FB 500TW	Measurement range / resolution 500 Nm (50 kgfm / 1 Nm
Accuracy	±0.5 % of measurement range
Units of measurement	Nm, Ncm, kgfm, lbfin, gfm
Calibration	possible with external F2 weights
Max. Overload	50 % of measurement range
Sampling rate	freely adjustable up to 1,000 values / s
Functions	PEAK function (MIN – MAX Hold) / limit value measurement / real-time measurement with software
Display	graphical LC display 61 x 34 mm / automatic display alignment / backlight
Menu	multilingual: German / English / Spanish
Memory	internal memory and mini SD card memory. (internal memory is limited to a series of measurement of up to 6,400 measurements)
Storage	manual – by keystroke automatic – (adjustable)
Interface	serial RS-232, 9-pole and USB OPTIONAL: switch contact output MIN / MAX / OK (see below) + 1 input
Software	incl. downloadable PC software for evaluation and control
Operating conditions	– 10 … +40 °C
Power supply	4 x Ni-MH 2700 mAh AA rechargeable batteries (exchangeable) or mains adaptor ~230 V/12 V; 1.2 A incl. Auto Power Off function adjustable
Battery life	approx. 20 hours (without backlight approx. 45 h)
Dimensions evaluation unit	210 x 110 x 40 mm / 600 g
Dimensions torque transducer	up to 10 Nm Ø 90 (Ø 40) / 80 mm / 700 g above 10 Nm 1500 g Ø 75 / 90 mm / 1500 g
Cable length of external torque measuring cell	approx. 2 m

PCE-FB 500TW DELIVERY SCOPE

Delivery content of the torque wrench tester PCE-FB TW Series:
1 x torque wrench tester, 1 x external force transducer, 1 x RS-232 data cable, 1 x SD memory card incl. card reader, 1 x mains adaptor, 1 x carrying case
Note: Software available by download from the PCE website. See downloads tab for details.
