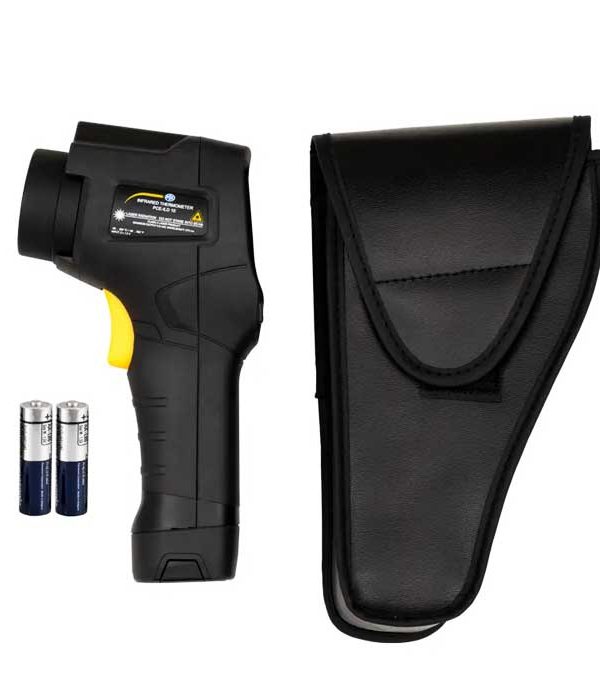

PCE-ILD 10 Infrared Thermometer

Infrared thermometer PCE-ILD 10 is used for many measurement tasks to determine surface temperature. It has a measuring range of -50 … +500 °C (-58 … 932 °F) and adjustable emission value between 0.10 … 1.00.
It can also display the current temperature, largest, smallest, average, and differential readings. On the PCE-ILD 10 infrared thermometer, there is a multi-point laser that is used to align the measurement point and its ratio is 12:1.

SKU:73821

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 544 (excl.VAT)

11People watching this product now!

Infrared Thermometer PCE-ILD 10

Infrared thermometer PCE-ILD 10 is used for many measurement tasks to determine surface temperature. It has a measuring range of -50 … +500 °C (-58 … 932 °F) and adjustable emission value between 0.10 … 1.00.
It can also display the current temperature, largest, smallest, average, and differential readings. On the PCE-ILD 10 infrared thermometer, there is a multi-point laser that is used to align the measurement point and its ratio is 12:1.
In this device, any alarm limit value can be stored to check the temperature, and when it goes above or below the limit value, the device automatically generates an audio and visual warning. Also, this thermometer has two LED rings, each of which has five LEDs. The blue ring on the thermometer is for finding leaks, such as air conditioning systems, and the white ring can be used to illuminate the surrounding environment.

PCE-ILD 10 key features:

  • Measuring range: -50 … 500 °C / -58 … 932 °F
  • Fast measuring rate of 2 Hz
  • White and blue lighting ring
  • Spot ratio: 12:1
  • Multipoint laser
  • Optionally with an ISO calibration certificate

Infrared Thermometer PCE-ILD 10 Specification :

  • Measuring range : -50 … 500 °C / -58 … 932 °F
  • Resolution : 0.1 °C / 0.1 °F
  • Accuracy : ±3 °C / ±5.4 °F at -50 … 20 °C / -58 … 68 °F
    ±2 % or ±2°C / ±3.6 °F at 20 … 500 °C / 68 … 932 °F
  • Repeatability : ±1 °C / 1.8 °F
  • Spot ratio: 12:1
  • Emission rate: 0.10 … 1.00
  • Measuring rate: 2 Hz
  • Spectral range:  8 … 14 µm
  • Laser output power: <1 mW
  • Wavelength: 630 … 670 nm
  • Laser class: 2
  • Light ring : 5 x white LED, 5 x blue LED
  • Power supply : 2 x 1.5 V AA batteries
  • Operating conditions: 0 … 50 °C / 32 … 122 °F, 10 … 90 % RH,non-condensing
  • Dimensions : 180 x 100 x 55 mm / 7.0 x 3.9 x 2.1″
  • Weight: 329 g / 11.6 oz with batteries
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “PCE-ILD 10 Infrared Thermometer”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Brand

Pce

PCE Instruments is a reliable brand that provides a wide range of high-quality measuring tools for industries such as laboratory testing, industrial manufacturing, and environmental monitoring. With a team of highly skilled engineers and scientists, PCE Instruments develops innovative products in-house to ensure quality and precision. The brand has a world-class reputation for reliability, durability, and accuracy.

pce logo brand3

Datasheet

Mme-Pdfs-Image

Specifications

Mechanical and General Specifications
Weight

329 g

Power

2 x 1.5 V AA batteries
