PCE-PA 7200 Portable Power Analyzer
(No Reviews)
The PCE-PA 7200 Portable Power Analyzer is an essential tool for professionals looking to improve power quality and efficiency. Its accurate multi-parameter analysis allows for effective diagnosis and enhancement of power performance.
- AC voltage AC Measuring range: 0 To 600 V
- Alternating current AC Measuring range: 0 To 1000 A
- Effective performance Measuring range: 0 To 9999 kW
Terms of sending goods ›
Order Via phone number
Order Via Online Form
[custom_stock_status]
Description
Buy PCE-PA 7200

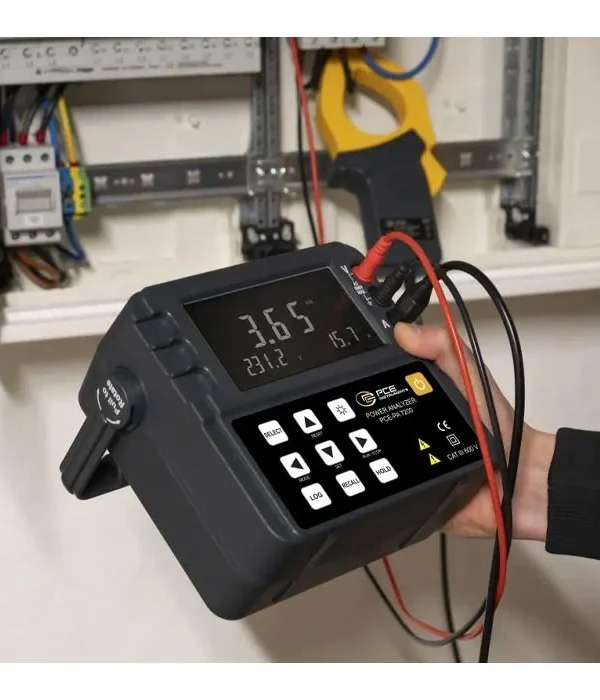

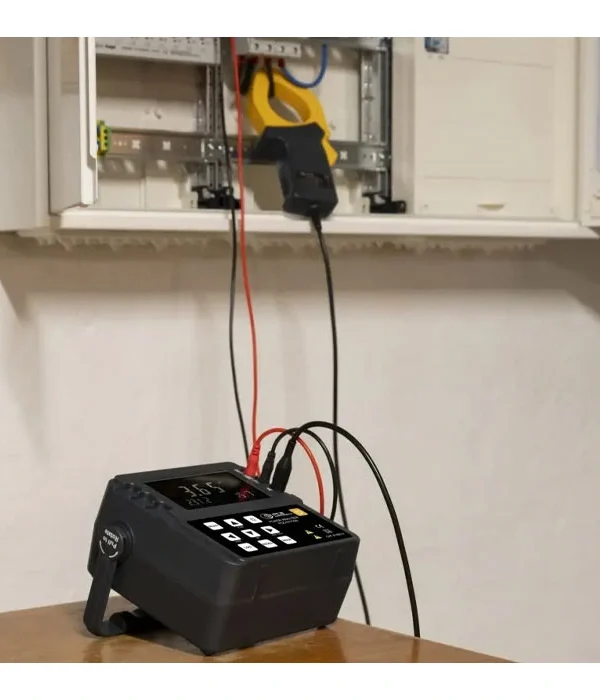

The Portable Power Analyzer PCE-PA 7200 is a sophisticated device designed to provide professionals with accurate measurements of electrical parameters, which is ideal for troubleshooting, maintaining, and monitoring power systems. Its portability makes it particularly beneficial for fieldwork, allowing engineers and technicians to conduct on-site assessments without requiring extensive setups. The PCE-PA 7200 is essential for those managing industrial machinery, renewable energy installations, or any system where power efficiency and stability are critical. This analyzer combines precision with ease of use, enhancing productivity in various electrical analysis applications.
Key Features
The PCE-PA 7200 has an array of advanced features, making it an excellent choice for routine and advanced power analysis.
- Wide Measurement Range: The device can measure AC, DC, and voltage across a broad range, allowing users to assess various equipment.
- Multi-Parameter Measurement: With capabilities to measure active, reactive, and apparent power, along with power factor, harmonics, and frequency, this analyzer provides comprehensive insights into power quality.
- Real-Time Data Display: Equipped with a large, backlit display, the PCE-PA 7200 enables users to view real-time data, even in low-light conditions, ensuring ease of use in diverse environments.
- Data Storage and Transfer: This analyzer features internal memory for data logging and can transfer data to a PC for in-depth analysis and reporting.
- Durable and Portable Design: Engineered for field use, the PCE-PA 7200 is lightweight, easy to carry, and durable enough to withstand demanding environments.
The PCE-PA 7200 Portable Power Analyzer is an invaluable tool for professionals seeking to optimize power quality and efficiency in electrical systems. Its multi-parameter analysis capabilities and high accuracy make it a versatile solution for diagnosing and improving power performance. This analyzer suits Dubai’s industrial and commercial sectors, where maintaining reliable, efficient power systems is essential for smooth operations. The PCE-PA 7200, with its extensive features and robust design, provides users the flexibility and accuracy needed to meet modern power analysis demands.
PCE-PA 7200 Specifications
The PCE-PA 7200 is designed to deliver accurate and reliable measurements across various electrical parameters, with a range of 0 to 600 V.
| Portable Power Analyzer PCE-PA 7200 | |
| AC voltage AC | |
| Measuring range | 0 … 600 V |
| Resolution | 0.1 V |
| Accuracy | ±1 % v.Mw. ±5 digits |
| Alternating current AC | |
| Measuring range | 0 … 1000 A |
| Resolution | 0.1 A |
| Accuracy | ±1.5 % v.Mw. ±5 digits (>10A) |
| Effective performance | |
| Measuring range | 0 … 9999 kW |
| Resolution | 0.01 kW |
| Accuracy | ±2.5 % v.Mw. ±5 digits |
| Power factor | |
| Measurement range | 0.001 … 1 |
| Resolution | 0.001 |
| Apparent power | |
| Measuring range | 0 … 9999 kVA |
| Resolution | 0.01 kVA |
| Accuracy | ±2.5% v.Mw. ±5 digits |
| Effective energy | |
| Measuring range | 0 … 9999 kWh |
| Resolution | 0.01 kWh |
| Accuracy | ±2.5 % v.Mw. ±5 digits |
| Frequency | |
| Measuring range | 45 … 65 Hz |
| Resolution | 0.1 Hz |
| Accuracy | ±0.5 % v.Mw. ±5 digits |
| General technical data | |
| Measurement functions | HOLD, MIN, MAX |
| Display type | LCD with illumination |
| Display size | 4.7 inch |
| Storage medium | Internal memory |
| Storage capacity | 2000 data records |
| Storage interval of | 1 s |
| Storage interval to | 1 s |

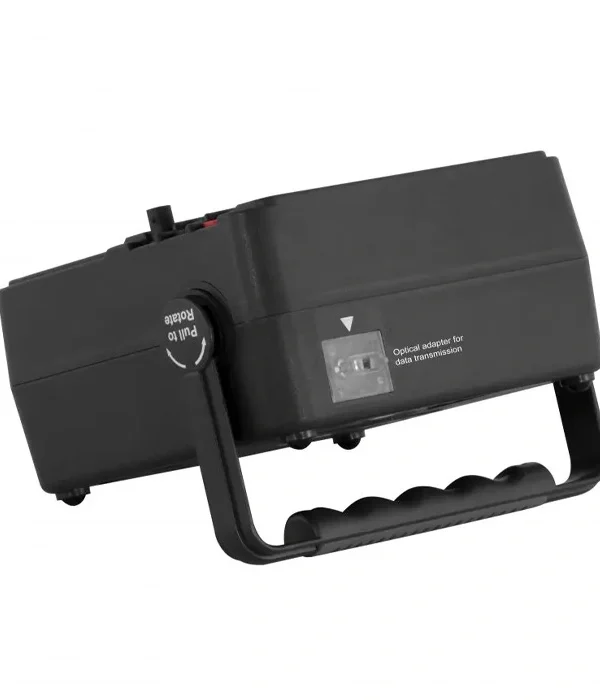

| Interface | RS232 |
| Standard(s) | EN 61010-1, EN 61326-1 |

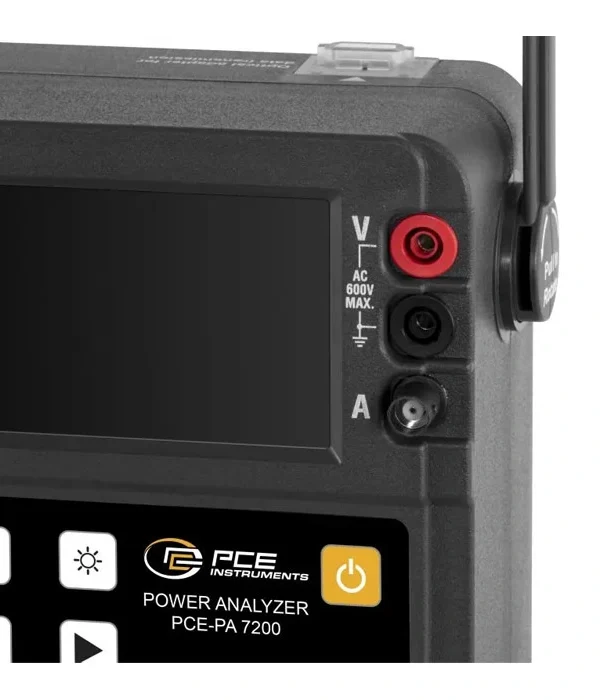

| Safety standard | CAT III 600 V |
| Alarm | Acoustic, visual |
| Alarm modes | Below, Above |

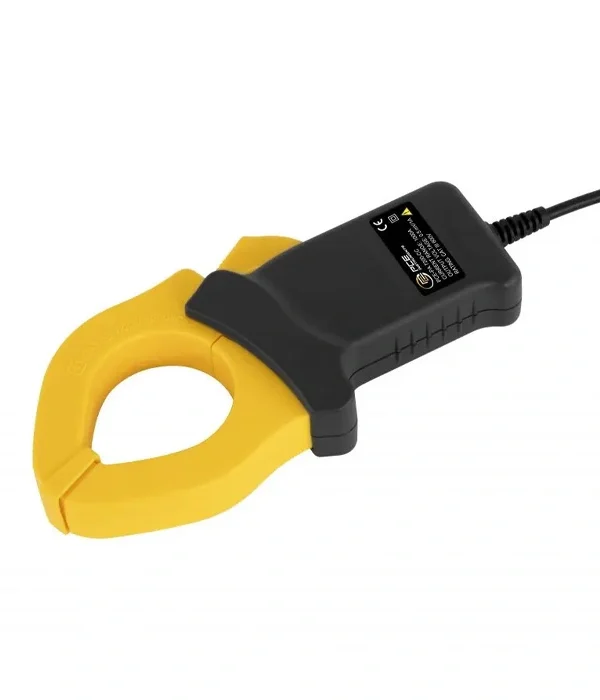

| Measurement opening | Current clamp: max. 50 mm |
| Menu language | English (US) |
| Protection class (device) | IP30 |
| Weight | 889 g |
| Operating conditions | 0 … 40 °C , 0 … 80 % r.H |
| Storage conditions | 0 … 40 °C , 0 … 80 % r.H |

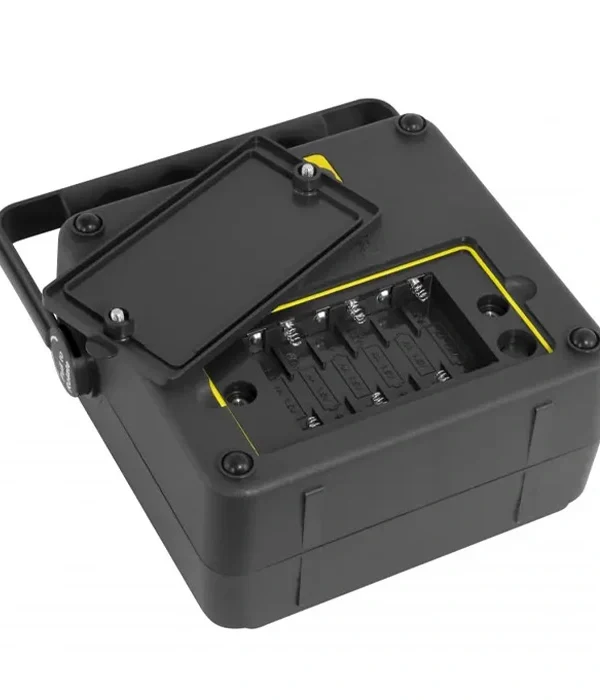

| Accumulator/battery | 6x 1.5 V AA battery , alkaline-manganese |
| Capacity | 3000 mAh |
| Dimensions ( L x W x H ) | 220 x 195 x 105 mm |
Buy the PCE-PA 7200 Power Analyzer for accurate and reliable measurements across various electrical parameters, with a range of 0 to 600 V.
Additional information
| active__power__range__ac (power quality analyser) |
0-10MW |
|---|---|
| active__power__range__dc (power quality analyser) |
none |
| current__range__ac (power quality analyser) |
0-1000A |
| current__range__dc (power quality analyser) |
none |
| power__quality__type (power quality analyser) |
single phase |
| voltage__range__ac (power quality analyser) |
0-600V |
| voltage__range__dc (power quality analyser) |
none |
Manual
Manual
Manual
Specifications
Specifications
| Portable Power Analyzer PCE-PA 7200 | |
| AC voltage AC | |
| Measuring range | 0 … 600 V |
| Resolution | 0.1 V |
| Accuracy | ±1 % v.Mw. ±5 digits |
| Alternating current AC | |
| Measuring range | 0 … 1000 A |
| Resolution | 0.1 A |
| Accuracy | ±1.5 % v.Mw. ±5 digits (>10A) |
| Effective performance | |
| Measuring range | 0 … 9999 kW |
| Resolution | 0.01 kW |
| Accuracy | ±2.5 % v.Mw. ±5 digits |
| Power factor | |
| Measurement range | 0.001 … 1 |
| Resolution | 0.001 |
| Apparent power | |
| Measuring range | 0 … 9999 kVA |
| Resolution | 0.01 kVA |
| Accuracy | ±2.5% v.Mw. ±5 digits |
| Effective energy | |
| Measuring range | 0 … 9999 kWh |
| Resolution | 0.01 kWh |
| Accuracy | ±2.5 % v.Mw. ±5 digits |
| Frequency | |
| Measuring range | 45 … 65 Hz |
| Resolution | 0.1 Hz |
| Accuracy | ±0.5 % v.Mw. ±5 digits |
| General technical data | |
| Measurement functions | HOLD, MIN, MAX |
| Display type | LCD with illumination |
| Display size | 4.7 inch |
| Storage medium | Internal memory |
| Storage capacity | 2000 data records |
| Storage interval of | 1 s |
| Storage interval to | 1 s |
| Interface | RS232 |
| Standard(s) | EN 61010-1, EN 61326-1 |
| Safety standard | CAT III 600 V |
| Alarm | Acoustic, visual |
| Alarm modes | Below, Above |
| Measurement opening | Current clamp: max. 50 mm |
| Menu language | English (US) |
| Protection class (device) | IP30 |
| Weight | 889 g |
| Operating conditions | 0 … 40 °C , 0 … 80 % r.H |
| Storage conditions | 0 … 40 °C , 0 … 80 % r.H |
| Accumulator/battery | 6x 1.5 V AA battery , alkaline-manganese |
| Capacity | 3000 mAh |
| Dimensions ( L x W x H ) | 220 x 195 x 105 mm |
