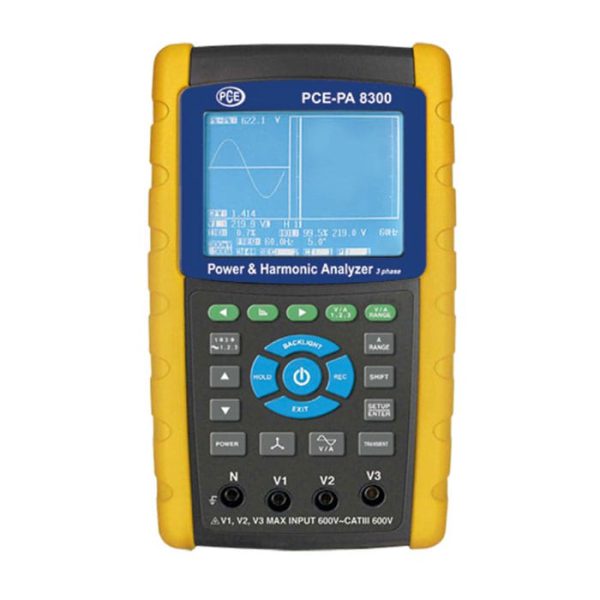

Three-Phase Power Analyzer PCE-PA 8300-2

The PCE-PA 8300 is a 3-Phase Power Meter / 3-Phase Power Analyzer that features a durable enclosure, SD card memory, a LCD graphic display, as well as apparent, effective, and reactive power measurement. The easy-to-use PCE-PA 8300 3-Phase Power Meter is the ideal tool for performing power and harmonics analysis as well as for measuring network capacity.

– Voltage measurement range of 10 V … 600 V AC
– Current measurement range of 30 A … 3000 A AC (Set 2)
– Performance measurement range of 0 kW … 9.999 MW (VA/VAR)
– Simultaneous display of harmonics and waveform
– Graphic Phasor diagram
– Captures transients including dip, swell, and outage
– SD card memory
– LCD graphic display
– Durable enclosure
– Compatibility with various manufacturers’ power clamps
– Adjustable back-up interval, allowing for long-term data collection
– Auto-setting of measurement range (AC V)
– Power efficiency, delay angle, and frequency measurement
– Apparent, effective, and reactive power measurement
– Harmonic spectrum measurement up to the 50th order

Three-Phase Power Analyzer PCE-PA 8300-2 Specifications:

Electrical specifications
Voltage Measurement (AC V)
Measurement Range                                 Resolution                      Accuracy
10 V … 600 V (phase to neutral)                 0.1 V                             ±(0.5 % + 0.5 V)
10 V … 600 V (phase to phase                     0.1 V                             ±(0.5 % + 0.5 V)

Current measurement (AC A) Set 2
Measurement range                                  Resolution                      Accuracy
30 A                                                              0.001 A (< 10 A)
0.01 A (≥ 10 A)               ±(0.5 % + 0.1 A)
300 A                                                           0.01 A (< 10 A)
0.1 A (≥ 10 A)                 ±(0.5 % + 0.5 A)
3000 A                                                        0.1 A (< 1000 A)
1 A (≥ 1000 A)               ±(0.5 A + 5 A)

Operating frequency of current clamp :    40 Hz … 1 kHz

Tested operating frequency of current clamp: 45 Hz … 65 Hz

Input resistance AC V :10 MOhm
